D-Link DSL-604+

DSL-604+ ADSL Ethernet Router User’s Guide
52

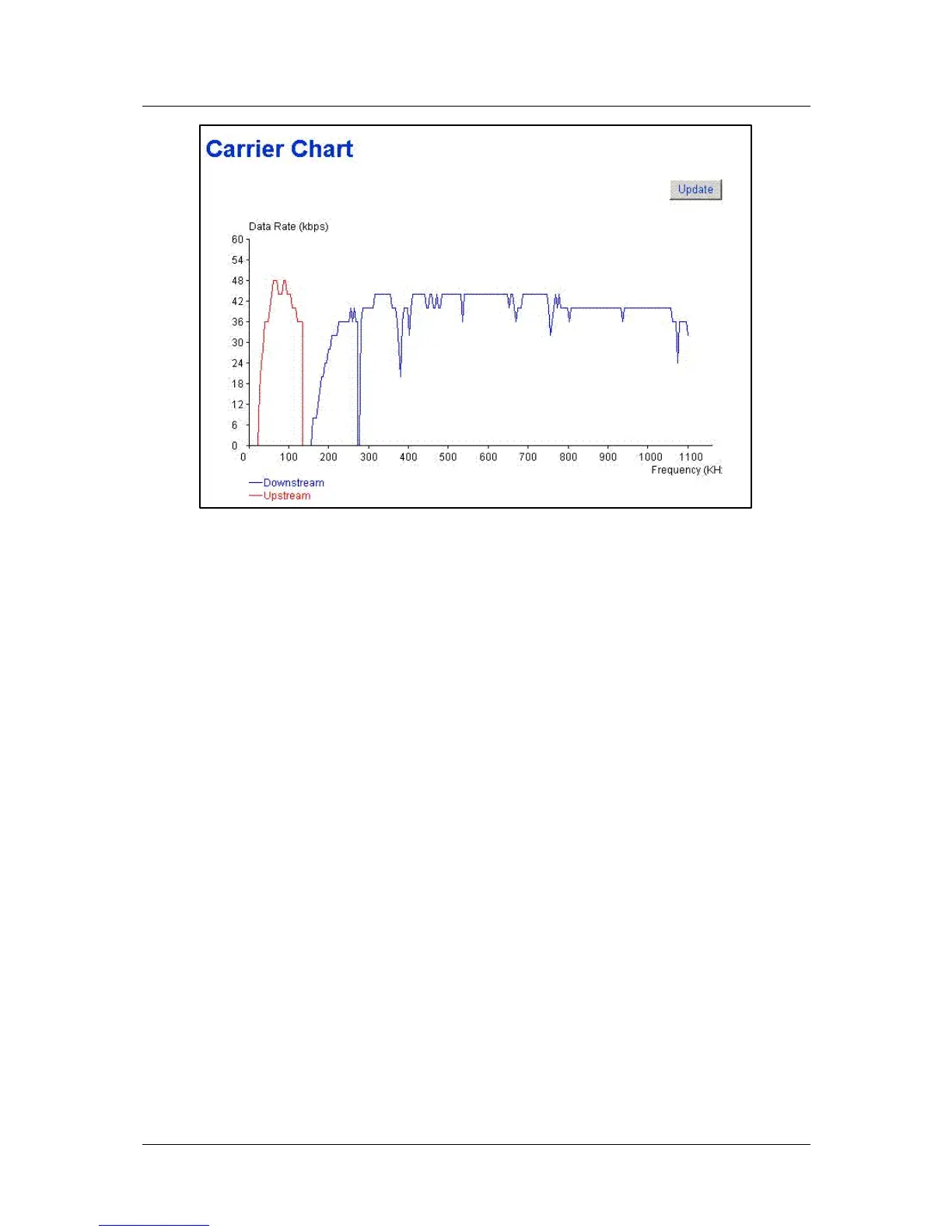

Figure 4- 31. Carrier Chart
This chart can be used to gauge signal quality for the entire upstream (lower portion) and downstream (upper
portion) range of discrete modular tones. The example above displays normal signal function for the full range of
frequencies.
