D-Link DSL-G256DG VDSL Router User Manual
Web User Interface Configuration Page 107

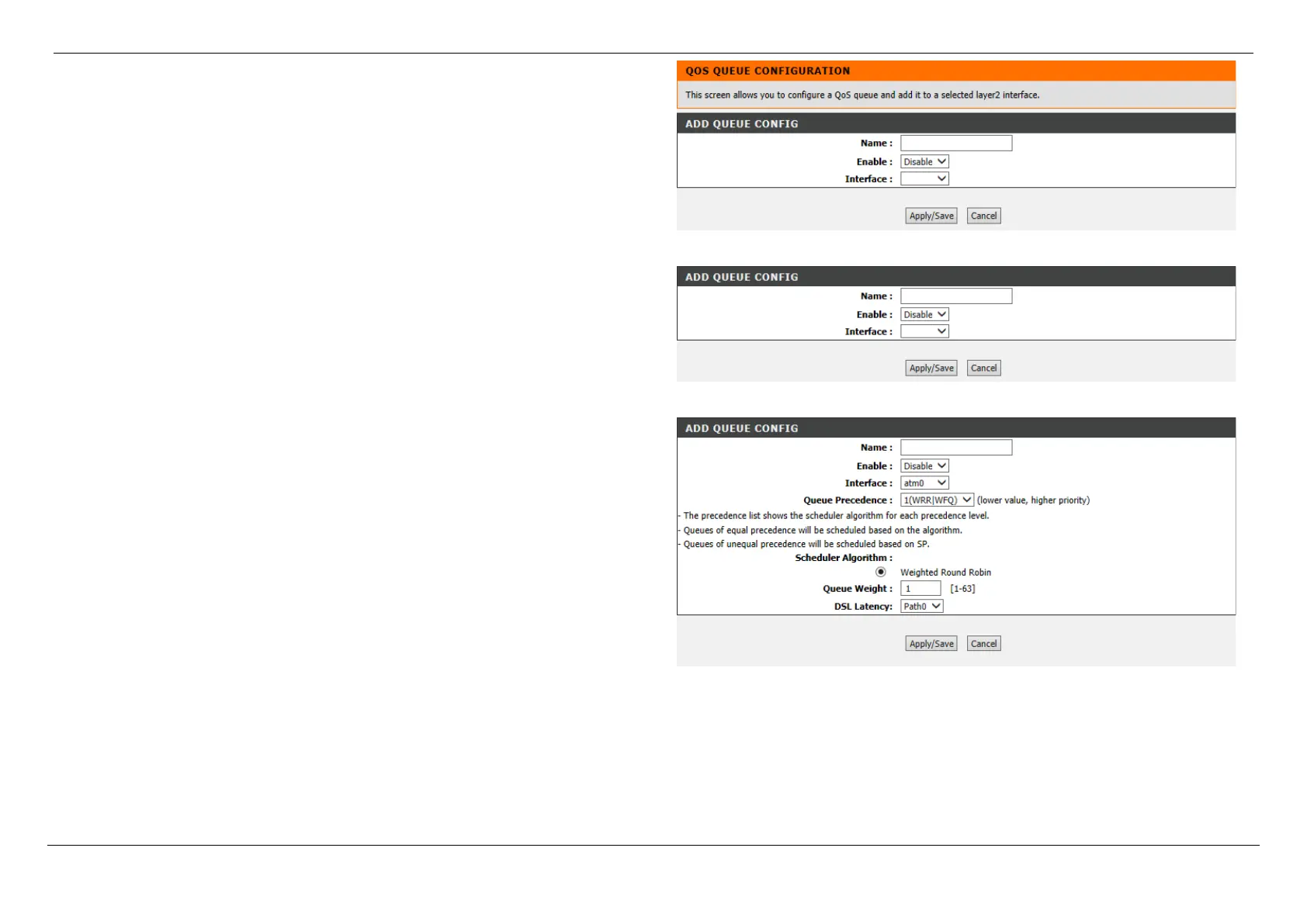

After clicking the Add button, the following page is available.
In this section we can create a QoS queue configuration entry.
Name: Enter the QoS queue configuration entry name here.
Enable: Select this option to enable or disable this entry. Options to choose from
are Enable or Disable.
Interface: Select the interface that will be associated with this entry.
After selecting an ATM interface, the following parameters will be available.
Queue Precedence: Select the queue precedence option here.
Queue Schedule: Select the queue schedule method used here. Option to choose
from is Weighted Round Robin.
Queue Weight: Enter the queue weight value used here.
DSK Latency: Select the DSL latency option here. The only option available is
Path0.
Click the Apply/Save button to accept the changes made.
Click the Cancel button to discard the changes made and return to the main page.
