D-Link DSL-G256DG User Manual

D-Link DSL-G256DG VDSL Router User Manual

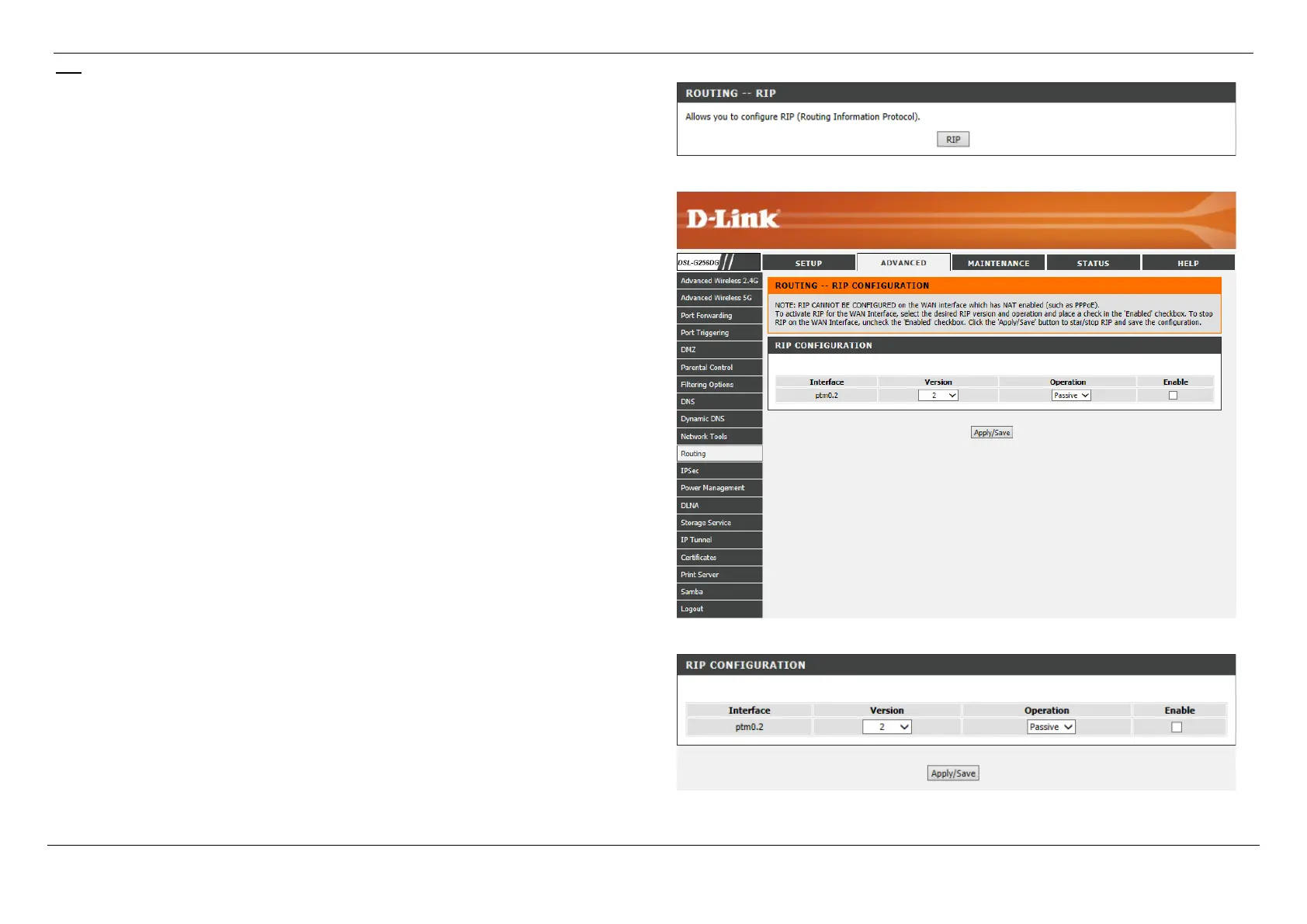

Web User Interface Configuration Page 126
RIP
Click the RIP button to access the RIP configuration page.
After clicking the RIP button the following page is available.
In this section we can configure the default gateway parameters for this router.
Version: Select the RIP version number here. Options to choose from are 1, 2, and
Both.
Operation: Select the operation mode here. Options to choose from are Active and
Passive.
Enable: Tick this option to enable the RIP configuration on the specified interface.
Click the Apply/Save button to accept the changes made.
