D-Link DSL-G256DG VDSL Router User Manual
Web User Interface Configuration Page 125

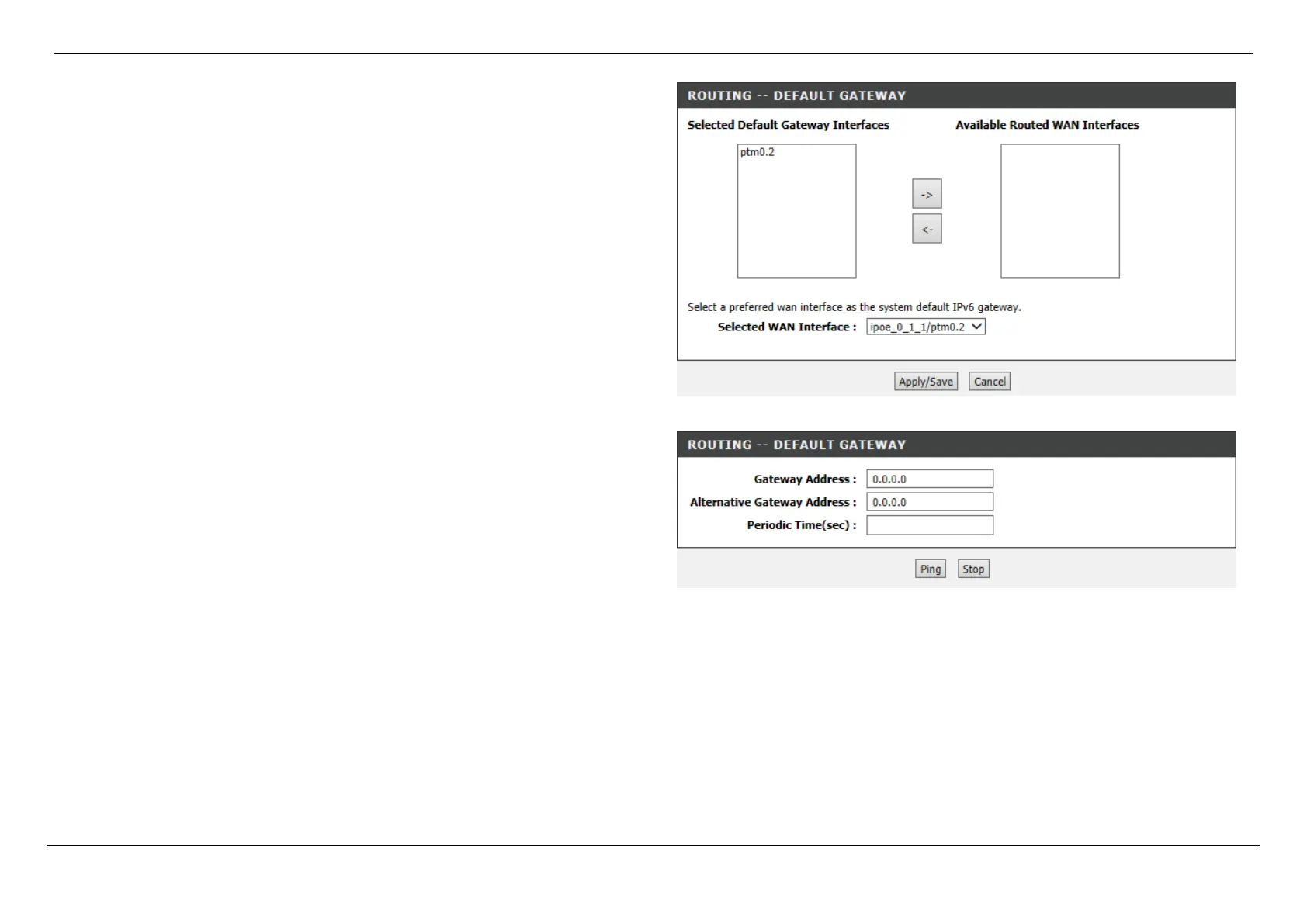

In this section we can select the default gateway interface for this router.
Select an interface under Available Routed WAN Interfaces, and click <- to add the
interface to the Default Gateway Interfaces.
Select an interface under Selected Default Gateway Interfaces, and click -> to
remove the interface from the default gateway list.
Click the Apply/Save button to accept the changes made.
Click the Cancel button to discard the changes made and return to the main page.
In this section we can configure the default gateway parameters for this router.
Gateway Address: Enter the primary gateway IP address used here.
Alternative Gateway: Enter the secondary gateway IP address used here.
Periodic Time: Enter the periodic time value here.
Click the Ping button to initiate the gateway IP check.
Click the Stop button to terminate the gateway IP check.
