D-Link DSL-G256DG VDSL Router User Manual
Web User Interface Configuration Page 18

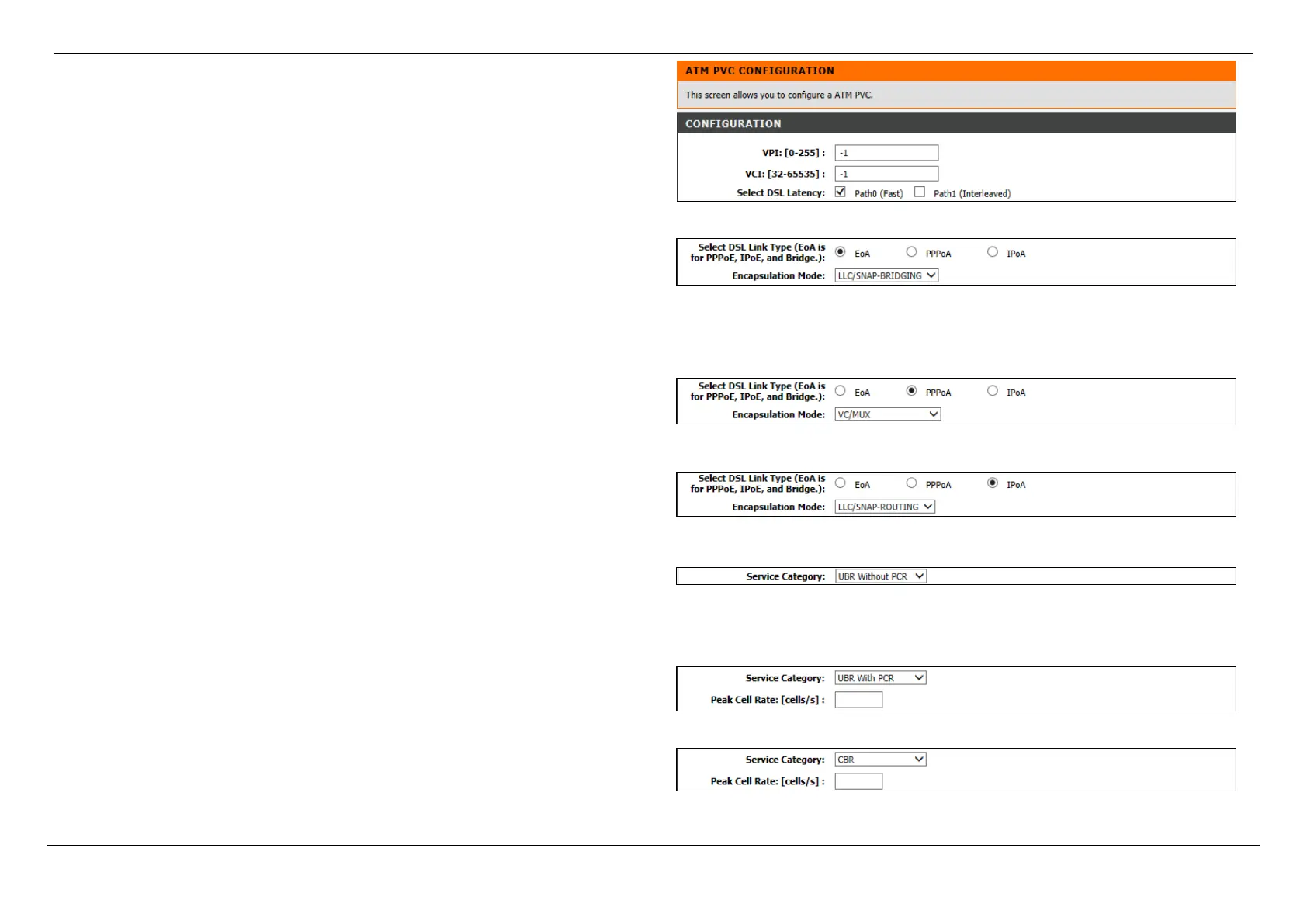

After clicking the Add button, the ATM PVC Configuration page will be available.
Enter the correct VPI and VCI values. These can also be changed if requested to do
so by the Internet Service Provider (ISP).
Select the appropriate DSL Latency option. Options to choose from are Path0 (Fast)
and Path1 (Interleaved).
Here we can select the DSL Link Type used. The Encapsulation Mode will change
depending on the DSL Link Type selected. Options to choose from are EoA,
PPPoA, and IPoA.
After selecting the EoA option, select the Encapsulation Mode. Options to choose from are LLC/SNAP-BRIDGING and VC/MUX.
After selecting the PPPoA option, the Connection Mode option will be disabled.
Select the Encapsulation Mode. Options to choose from are VC/MUX and
LLC/ENCAPSULATION.
After select the IPoA option, the Connection Mode option will be disabled.
Select the Encapsulation Mode. Options to choose from are LLC/SNAP-ROUTING
and VC/MUX.
Here we can select the Service Category. Options to choose from are UBR Without
PCR, UBR With PCR, CBR, Non Realtime VBR, and Realtime VBR.
After selecting UBR Without PCR, no additional field will be available.
After selecting UBR With PCR, the Peak Cell Rate field will be available. Enter the
Peak Cell Rate value here.
After selecting CBR, the Peak Cell Rate field will be available. Enter the Peak Cell
Rate value here.
