D-Link DSL-G256DG VDSL Router User Manual
Web User Interface Configuration Page 19

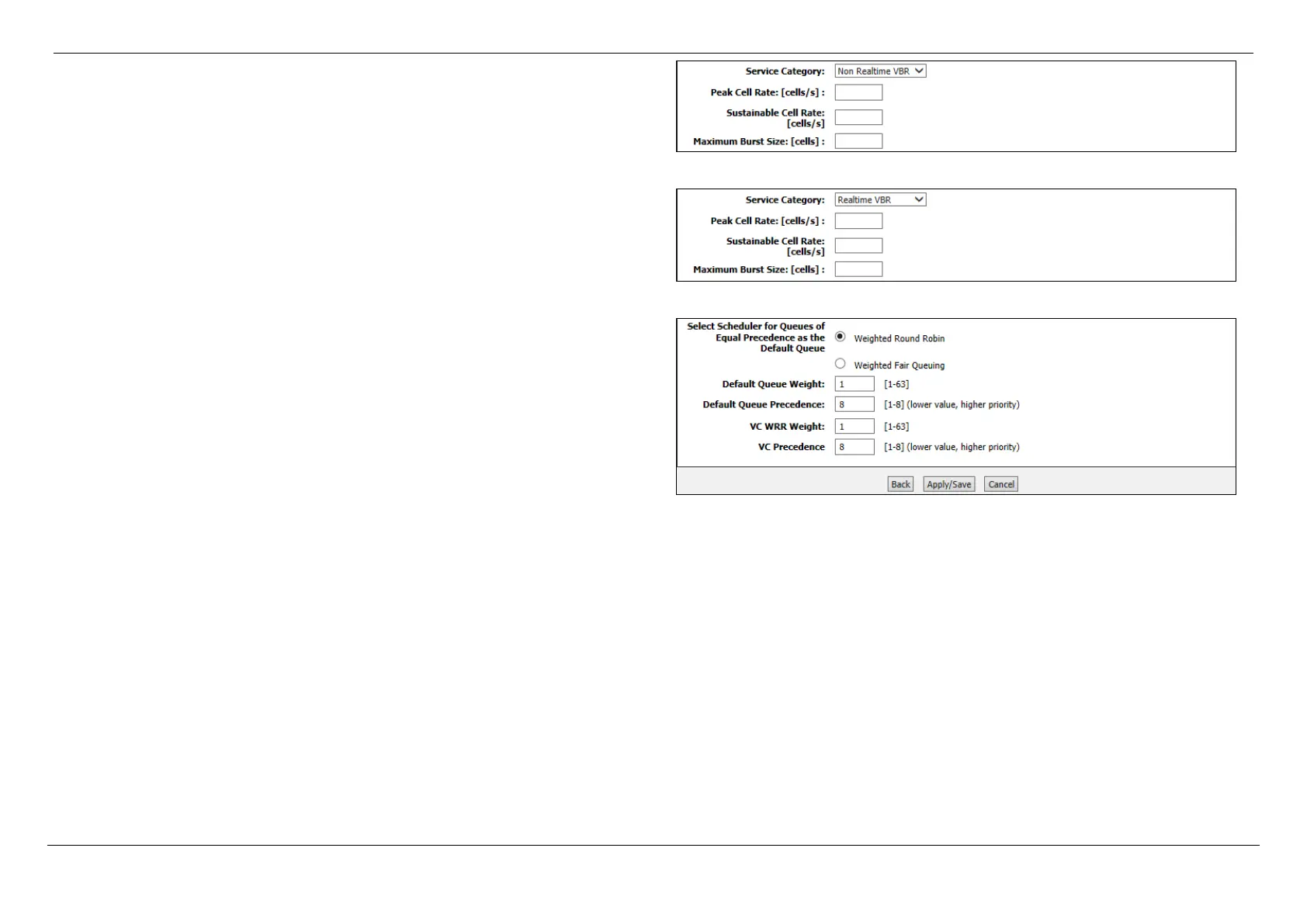

After selecting Non Realtime VBR, the Peak Cell Rate, Sustainable Cell Rate, and
Maximum Burst Size fields will be available. Enter the Peak Cell Rate, Sustainable
Cell Rate, and Maximum Burst Size values used here.
After selecting Realtime VBR, the Peak Cell Rate, Sustainable Cell Rate, and
Maximum Burst Size fields will be available. Enter the Peak Cell Rate, Sustainable
Cell Rate, and Maximum Burst Size values used here.
Select the Scheduler for Queues of Equal Precedence as the Default Queue
option here. Options to choose from are Weighted Round Robin and Weighted Fair
Queuing.
Also enter the Default Queue Weight, Default Queue Precedence, VC WRR
Weight, and VC Precedence value used here.
Click the Back button to return to the previous page.
Click the Apply/Save button to accept the changes made.
Click the Cancel button to discard the changes made and return to the main page.
