D-Link DSL-G256DG VDSL Router User Manual
Web User Interface Configuration Page 21

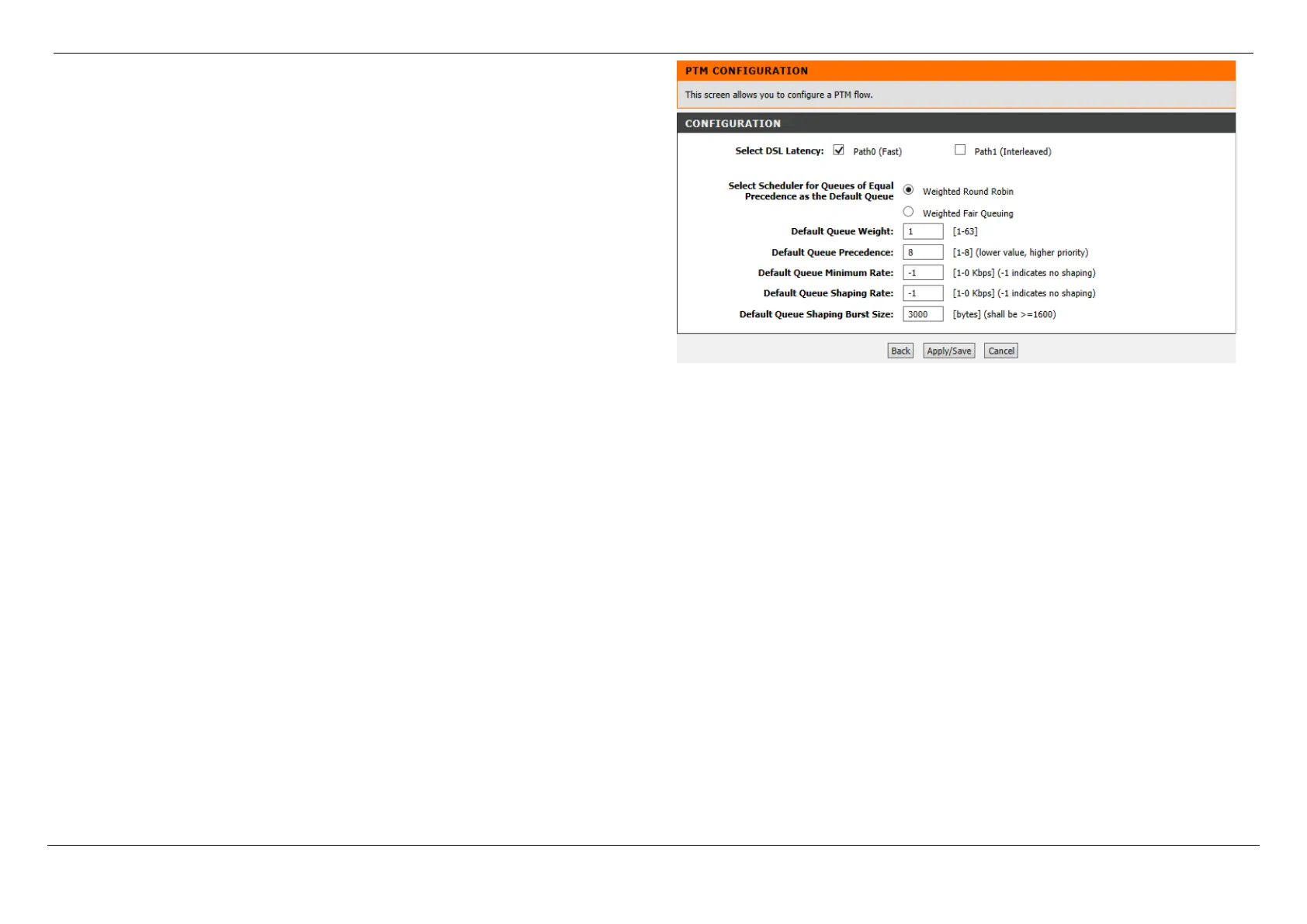

After clicking the Add button, the PTM Configuration page will be available.
Select the appropriate DSL Latency option. Options to choose from are Path0 (Fast)
and Path1 (Interleaved).
Select the Scheduler for Queues of Equal Precedence as the Default Queue
option here. Options to choose from are Weighted Round Robin and Weighted Fair
Queuing.
Also enter the Default Queue Weight, Default Queue Precedence, Default Queue
Minimum Rate, Default Queue Shaping Rate, and Default Queue Shaping Burst
Size value used here.
Click the Back button to return to the previous page.
Click the Apply/Save button to accept the changes.
Click the Cancel button to discard the changes made and return to the main page.
To Next Page
