D-Link DWC-1000 Quick Installation Guide

D-Link Wireless Controller  5D-Link Wireless Controller  5
ENGLISH
To establish a console connection:
1. Plug the RJ-45 connector of the supplied
RJ-45 to DB-9 cable directly into the console
port on the Wireless Controller.
2. Connect the other end of the cable to a
terminal or to the serial connector of a
computer running terminal emulation software.
Set the terminal emulation software values as
follows:
Baud rate: 115200
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
3. Connect the Wireless Controller following the
instructions in the "Connecting Power and
Turning On/Off" section in this guide, then
switch on your device. The boot sequence will
be displayed on the terminal.
4. Once the boot sequence is completed, the
command prompt will be displayed and the
device is ready to be congured.
Obtain and enter the following information to
complete the WLAN Setup Wizard:
4.1 Wireless Global Conguration -
Choose the country code.

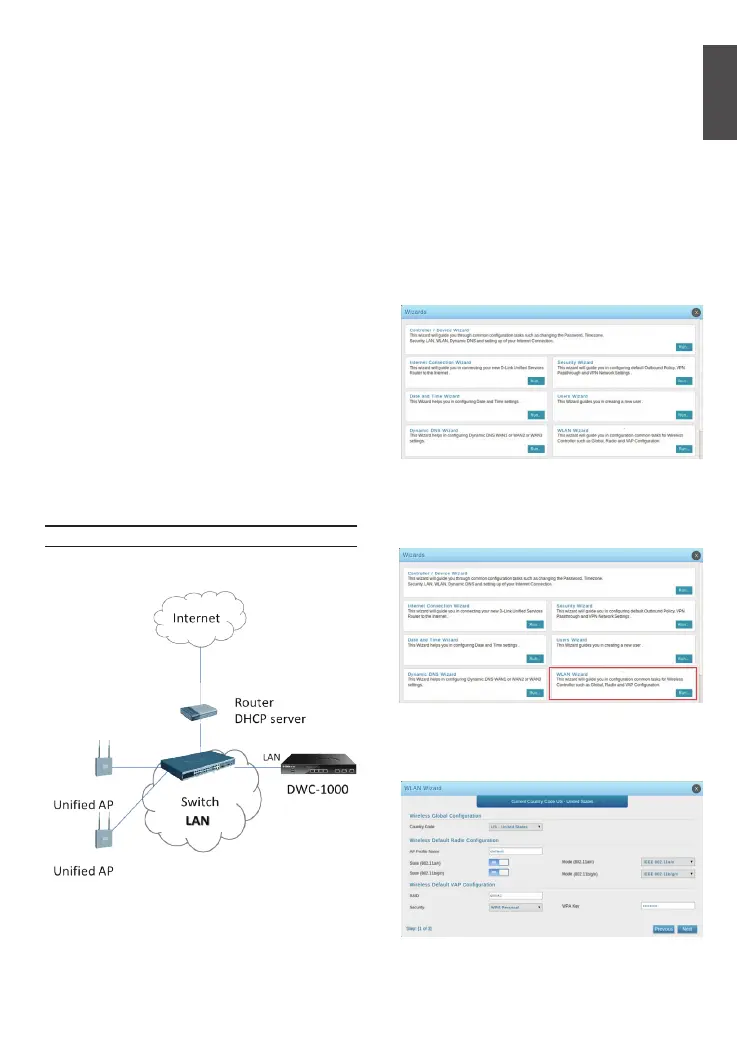

Figure 10. WLAN Setup Wizard
Figure 8. Example of WLAN network deployment
Discovering and Managing The Unied AP
Figure 9. Setup Page
To discover and manage the Unied AP:
1. Record the MAC address of each Unied AP
on the network.
2. Connect the Unied AP you want to congure
to the local area Ethernet network.
3. Log into the DWC-1000 and set the LAN IP
address to be in the subnet of the local area
Ethernet network.
4. Go through the WLAN Setup Wizard to
manage your access points. Navigate to
Wizard > WLAN Setup Wizard.
Figure 11. Choose the Country Code

D-Link DWC-1000 Specifications

General

Ethernet LAN	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Networking standards	IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Number of managed Wi-Fi Access Points (max)	6
Security algorithms	3DES, DES, WEP, WPA, WPA2
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Certification	FCC B, CE B, VCCI, C-tick, IC, cUL, LVD (EN60950-1)
Built-in display	No
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Power requirements	DC 12V/2.5A
Power consumption (typical)	19.3 W
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1419 mm
Pallet height (sea)	1847 mm
Pallet gross weight (air)	415236 g
Pallet gross weight (sea)	545648 g
Quantity per pallet (air)	144 pc(s)
Quantity per pallet (sea)	192 pc(s)
Shipping (inner) case width	296 mm
Shipping (inner) case height	428 mm
Shipping (inner) case length	354 mm
Shipping (inner) case weight	10826 g
Shipping (inner) case net weight	10016 g
Number of cartons per pallet (air)	36 pc(s)
Number of cartons per pallet (sea)	48 pc(s)
Quantity per shipping (inner) case	4 pc(s)

Weight and Dimensions

Package depth	396 mm
Package width	273 mm
Package height	80 mm
Package weight	2504 g
Dimensions (WxDxH)	280 x 180 x 44 mm
