D-Link DWC-1000 Quick Installation Guide

4  D-Link Wireless Controller4  D-Link Wireless Controller
ENGLISH
To access the device's WebUI:
1. Connect your workstation to one of the ports
labeled LAN (1-4).
2. Ensure your workstation is congured with a
static IP address in the 192.168.10.0/24
subnet.
Note: Disable pop-up blocking software or
add the management IP address
http://192.168.10.1 to your pop-up blocker’s
allow list.
3. Launch your browser and enter the IP address
for the LAN interface (The default IP
address is http://192.168.10.1), then press Enter.
Initial Conguration
The Wireless Controller software is preinstalled
on the DWC-1000. When the device is powered
on, it is ready to be congured. While the device
has a default factory conguration that allows you
to connect to the device, you must perform further
conguration for your specic network require-
ments.
Discovering the Wireless Controller
Using the WebUI
To use the WebUI, the workstation from which you
are managing the device must initially be on the
same subnetwork as the device. The workstation
also requires a compatible browser:

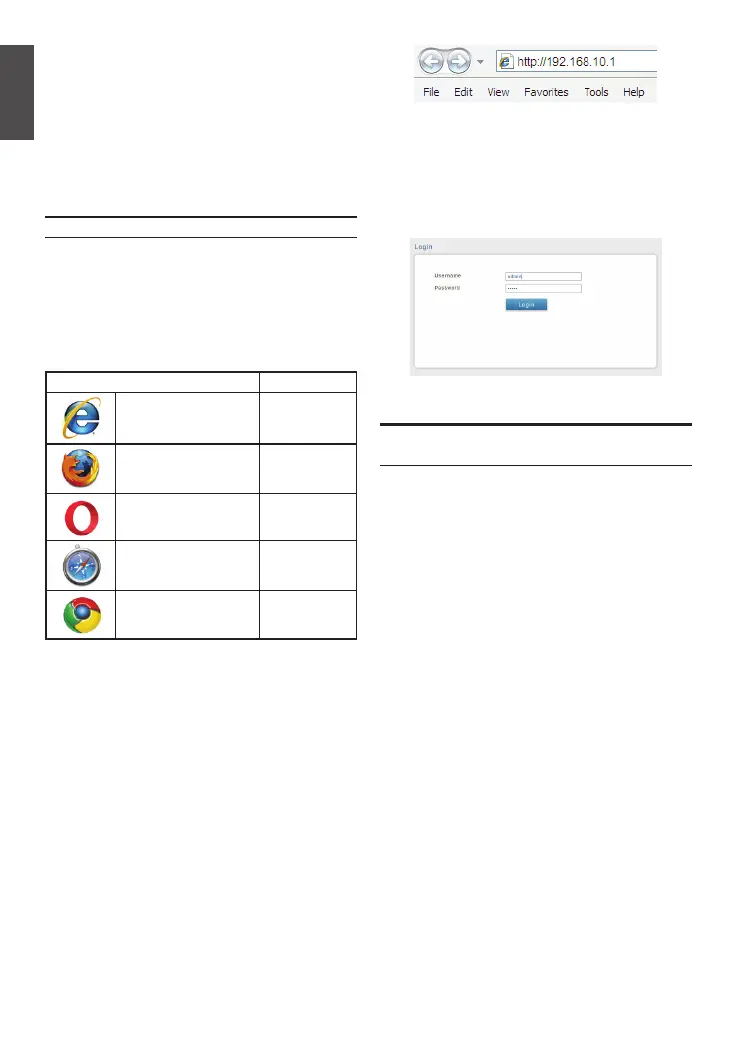

Figure 7. Authentication Dialog
4. Log in to the Wireless Controller Web Interface.
The default login information is:
Username: admin
Password: admin
Figure 6. Browser Address
The DWC-1000 Wireless Controller provides a
serial port that allows you to connect to a computer
or terminal for monitoring and conguring the device.
This port is an RJ-45 connector, implemented as
a data communication terminal equipment (DCE)
connection.
To use the console port connection, you need the
following equipment:
1. A terminal or a computer with both a serial port
and the ability to emulate a terminal.
2. The included RJ-45 to DB-9 cable.
3. If your Laptop or PC does not have an RS-232
connector, a converter (not included) is
required.
Using a Console Connection
(RJ-45 to DB-9 DCE)
Table 4. Browser Compatibility
Browser Version
Microsoft Internet
Explorer
9.0 or higher
Mozilla Firefox 20 or higher
Opera 12.0 or higher
Apple Safari 5.0 or higher
Google Chrome 25 or higher

D-Link DWC-1000 Specifications

General

Ethernet LAN	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Networking standards	IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Number of managed Wi-Fi Access Points (max)	6
Security algorithms	3DES, DES, WEP, WPA, WPA2
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Certification	FCC B, CE B, VCCI, C-tick, IC, cUL, LVD (EN60950-1)
Built-in display	No
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Power requirements	DC 12V/2.5A
Power consumption (typical)	19.3 W
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1419 mm
Pallet height (sea)	1847 mm
Pallet gross weight (air)	415236 g
Pallet gross weight (sea)	545648 g
Quantity per pallet (air)	144 pc(s)
Quantity per pallet (sea)	192 pc(s)
Shipping (inner) case width	296 mm
Shipping (inner) case height	428 mm
Shipping (inner) case length	354 mm
Shipping (inner) case weight	10826 g
Shipping (inner) case net weight	10016 g
Number of cartons per pallet (air)	36 pc(s)
Number of cartons per pallet (sea)	48 pc(s)
Quantity per shipping (inner) case	4 pc(s)

Weight and Dimensions

Package depth	396 mm
Package width	273 mm
Package height	80 mm
Package weight	2504 g
Dimensions (WxDxH)	280 x 180 x 44 mm
