D-Link DWL-3600AP Quick Installation Guide

6  D-Link DWL-3600AP Quick Install Guide
Solid Wall or Ceiling
Installation
1. Place the plastic wall mounting ring on a wall or ceiling.
2. Mark the points where you will insert the screws. Take out the mounting ring.
3. Drill holes in the marked points and insert the plastic wall anchors.
4. Use the supplied screws to attach the mounting ring to the wall.
5. Plug the CAT5 cable into the LAN port on the access point.

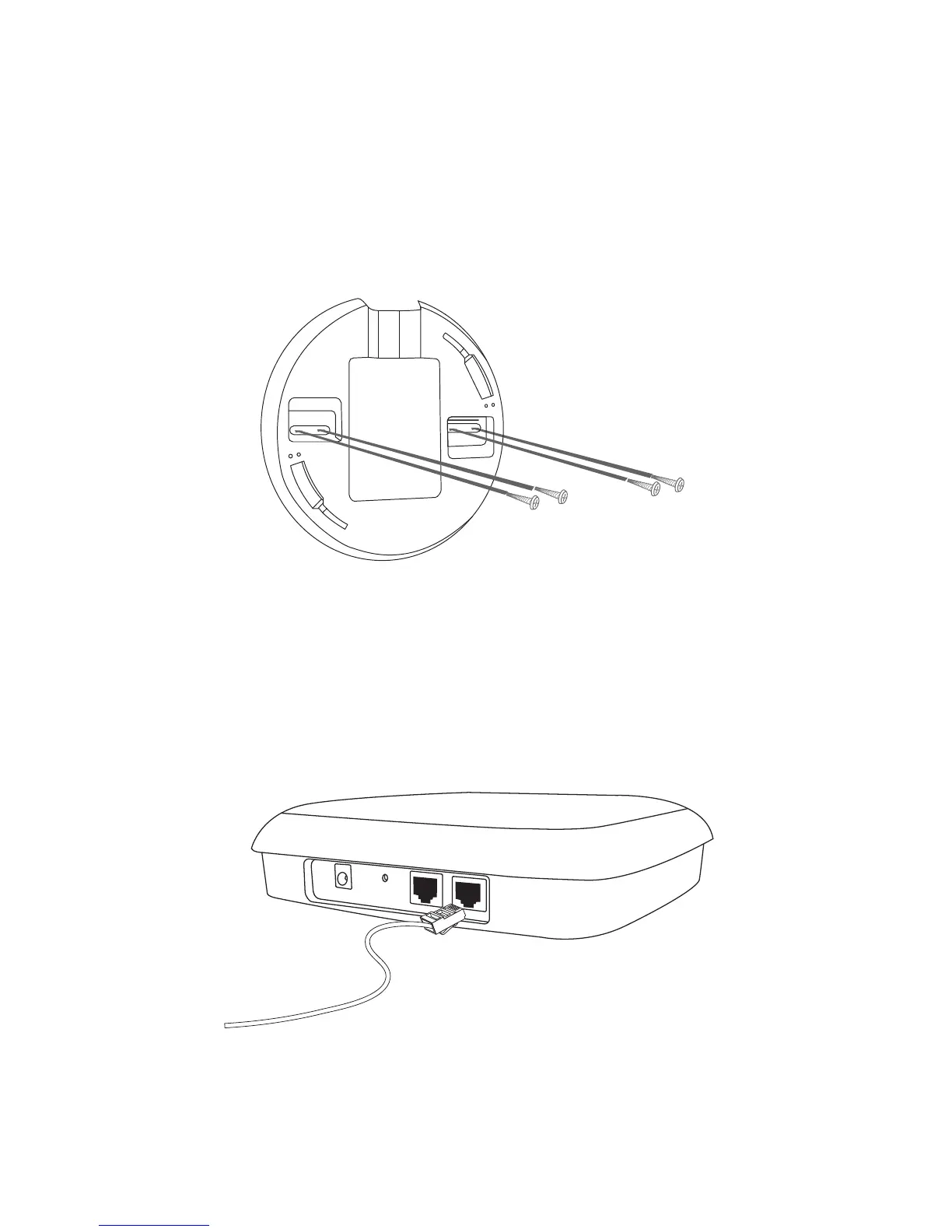

Figure 3. Insert screws through mounting ring
Figure 4. Plug cable into access point

D-Link DWL-3600AP Specifications

General

Frequency band	2.4 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	300 Mbit/s
Quality of Service (QoS) support	Yes
Data transfer rate	1 Gbit/s
Wireless technology	802.11 b/g/n
Antennas quantity	2
Antenna gain level (max)	4.7 dBi
Internal	No
Certification	FCC, CE
LED indicators	LAN, Power, WLAN
Interface	RJ-45
WAN connection	Ethernet (RJ-45)
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA, WPA2
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Power supply	8 W
Input current	2.5 A
AC input voltage	5 V

Weight and Dimensions

Weight	635 g
Dimensions (WxDxH)	203 x 203 x 48 mm
