Appendix

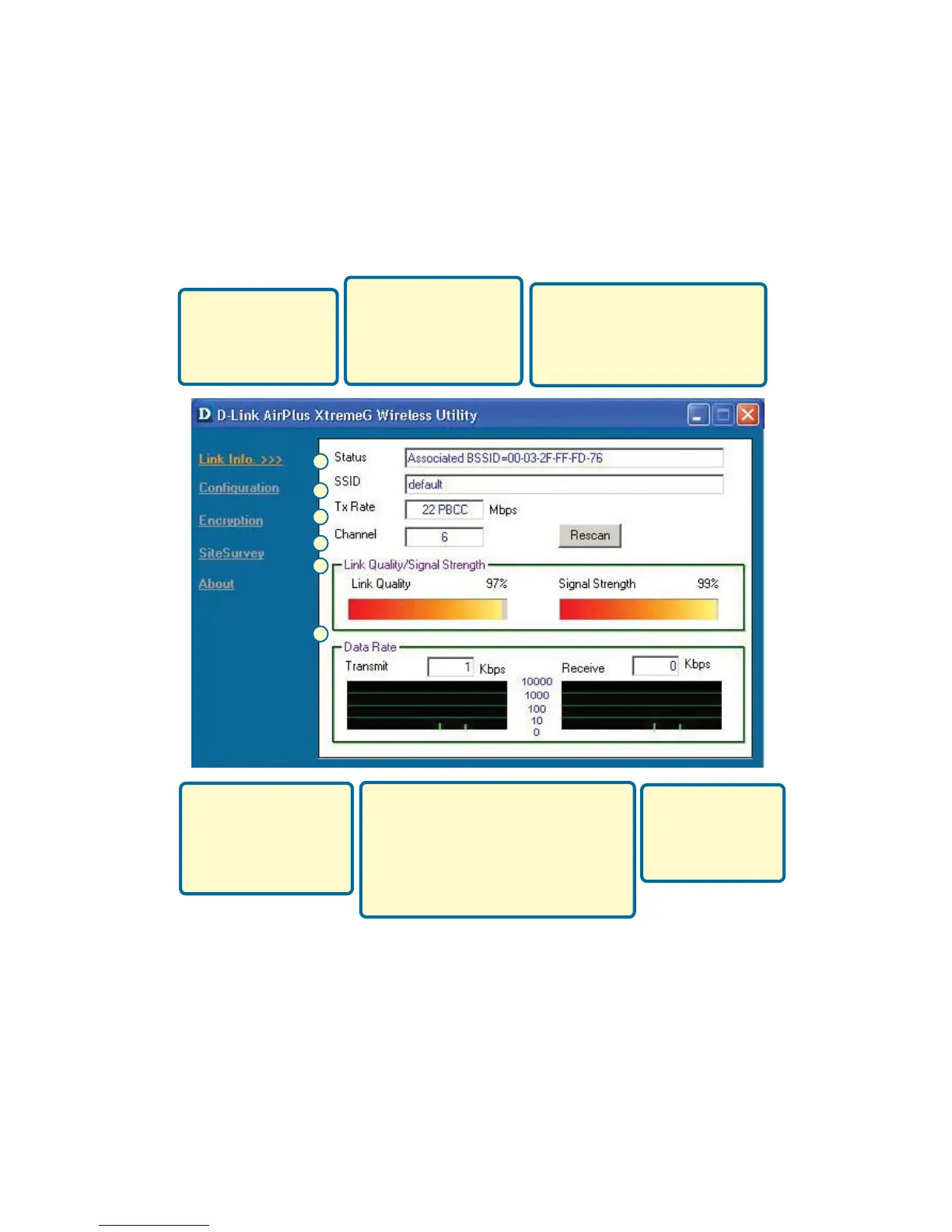

Using the Configuration Utility
A. Status: Displays the
MAC Address of the
Access Point that is
associated with the
DWL-G650.
B. SSID
: The Service Set
Identifier is the name
assigned to the wireless
network. The factory
SSID setting is set to
default.
C. TxRate: The default setting is
Auto; meaning, TxRate settings
are automatically determined by
the DWL-G650 depending on the
distance from the access point.
E. Link Quality / Signal Strength:
Displays the Link Quality for the DWL-
G650 wireless connection to the access
point. The Signal Strength represents
the wireless signal between the access
point and the DWL-G650. The percent-
age coincides with the graphical bar.
D. Channel: Displays the
channel information. By
default, the channel is
set to 6 and selection is
automatically determined
by the DWL-G650.
F. Data Rate:
Graphically displays
the statistics of data
transmitted and
received.
E
C
D
F
B
A
