1. Scenario 1 - Basic L2 Edge Setup: 1 WS + 2 APs

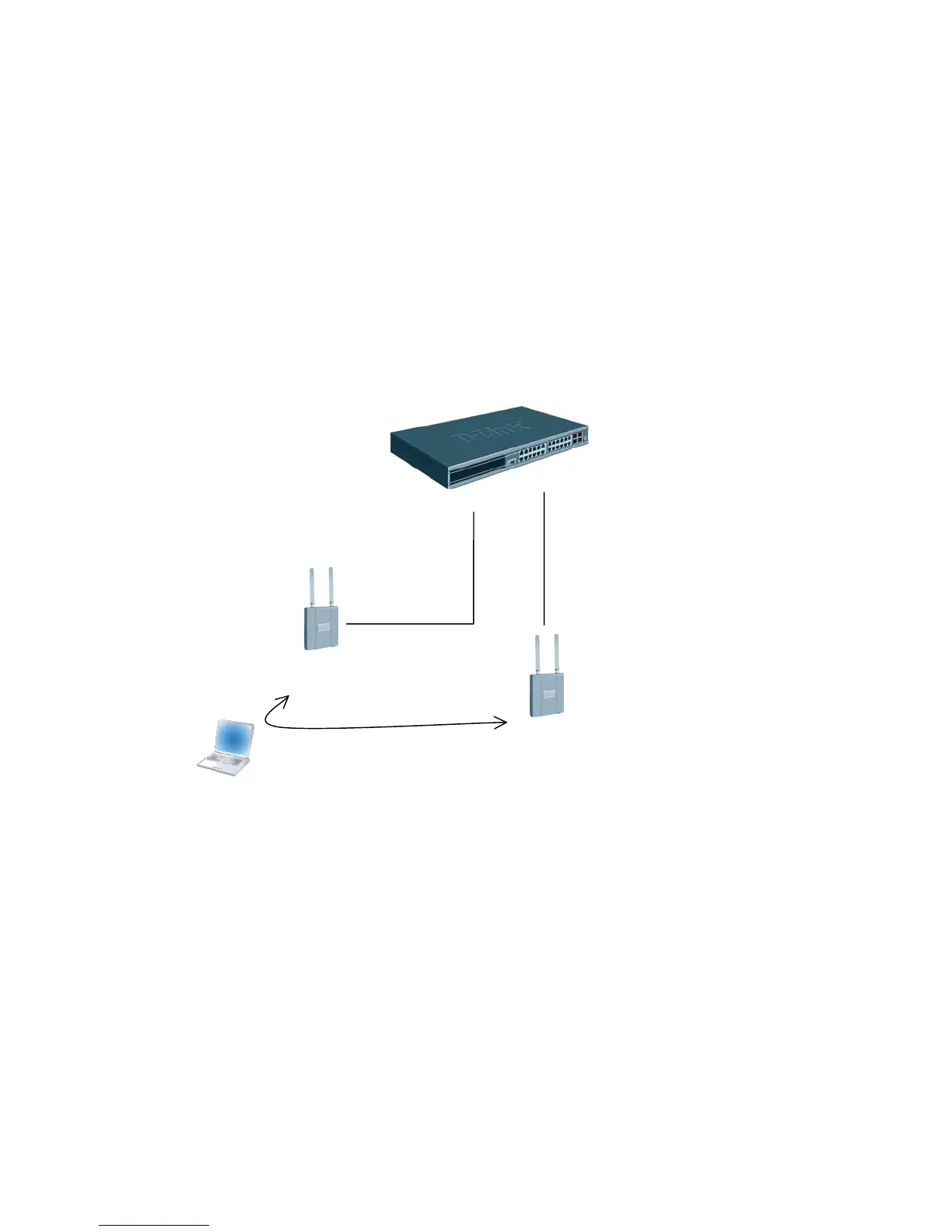

The diagram in this scenario shows a very basic L2 edge network configuration with one
wireless switch and two access points. All devices are in the same L2 domain.
The objectives in this setup are as follows:
• Set up the minimum configuration for multiple APs
• Configure an AP with a static IP
• Configure an ACL to prevent wireless clients from accessing the WS1
management interface.
• Configure DHCP on the wireless switch for wireless client address assignment.
• Understand some of the D-LINK Unified Access Point features.
WS1
AP1
AP2
Seamless Roaming
10.90.90.90/8
CL1
10.90.90.91/8
10.90.90.92/8
SSID:
Guest Network
SSID:
Guest Network
An overview of the configuration steps needed for Wireless Switch and APs are as
follows:
1. Disable DHCP on the APs and assign a static IP address to AP2.
2. Configure the WS1 DHCP server & address pool for Guest Network clients.
3. Configure an ACL to restrict access from clients on the Guest Network.
4. Attach the APs to WS1.
5. Validate the APs by adding them to the Valid AP database.
6. Save the configuration.
7. Perform tests.
