D-Link PowerLine N150 Mini - Product Setup

DHP-W220AV
3
ENG LISH
PRODUCT SETUP
HARDWARE INSTALLATION

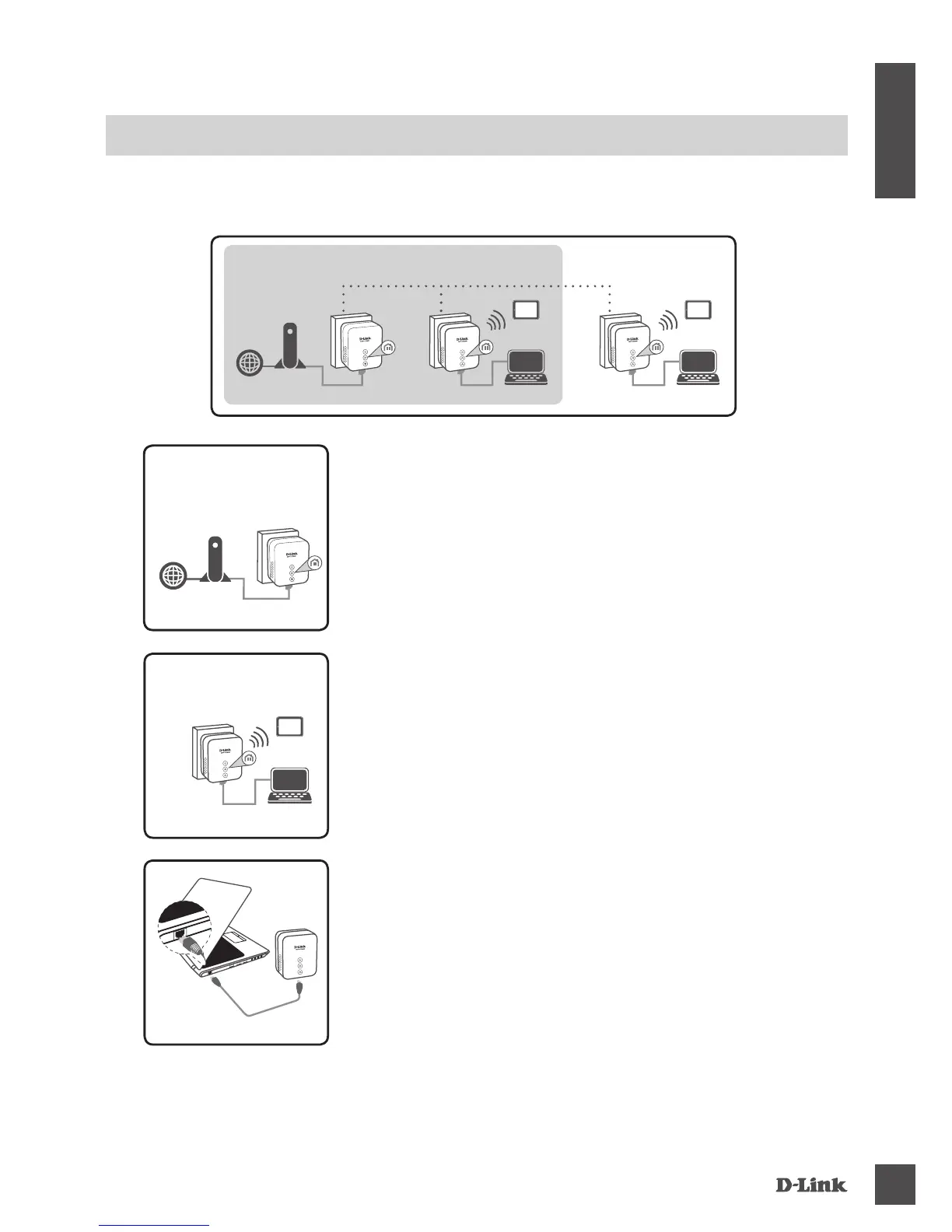

Before you can congure your DHP-W220AV for use, make sure the location being extended is on
the same electrical circuit. The diagram below shows an example of a Powerline network:
Step 1
Make sure your existing HomePlug AV device is plugged into a
power outlet near your cable or DSL modem and connected to your
network.
Step 3
Connect the included Ethernet cable to the LAN port on your
DHP-W220AV and to your computer's port. You may also connect
to the DHP-W220AV over Wi-Fi with the information on the Wireless
Conguration Card to proceed to set up your wireless network.
Your computer and DHP-W220AV are now connected. Please refer to “Setup Wizard” on the
next page to connect your DHP-W220AV with your existing Powerline network.
ROOM A
HomePlug AV
Device
ModemInternet
Step 2
In the other room, plug your DHP-W220AV into a wall outlet in a
place you want to extend your network.
ROOM A ROOM B ROOM C
DHP-W220AV DHP-W220AV
HomePlug AV
Device
ModemInternet
Notebook Notebook
iPad iPad
ROOM B
DHP-W220AV
Notebook
iPad
DHP-W220AV
Notebook
