ELECTRICAL CONNECTION :
Supply voltage and frequency must be the same as shown on the data plate. The circulator
must ALWAYS BE CONNECTED TO EARTH. Make the connection as indicated below.

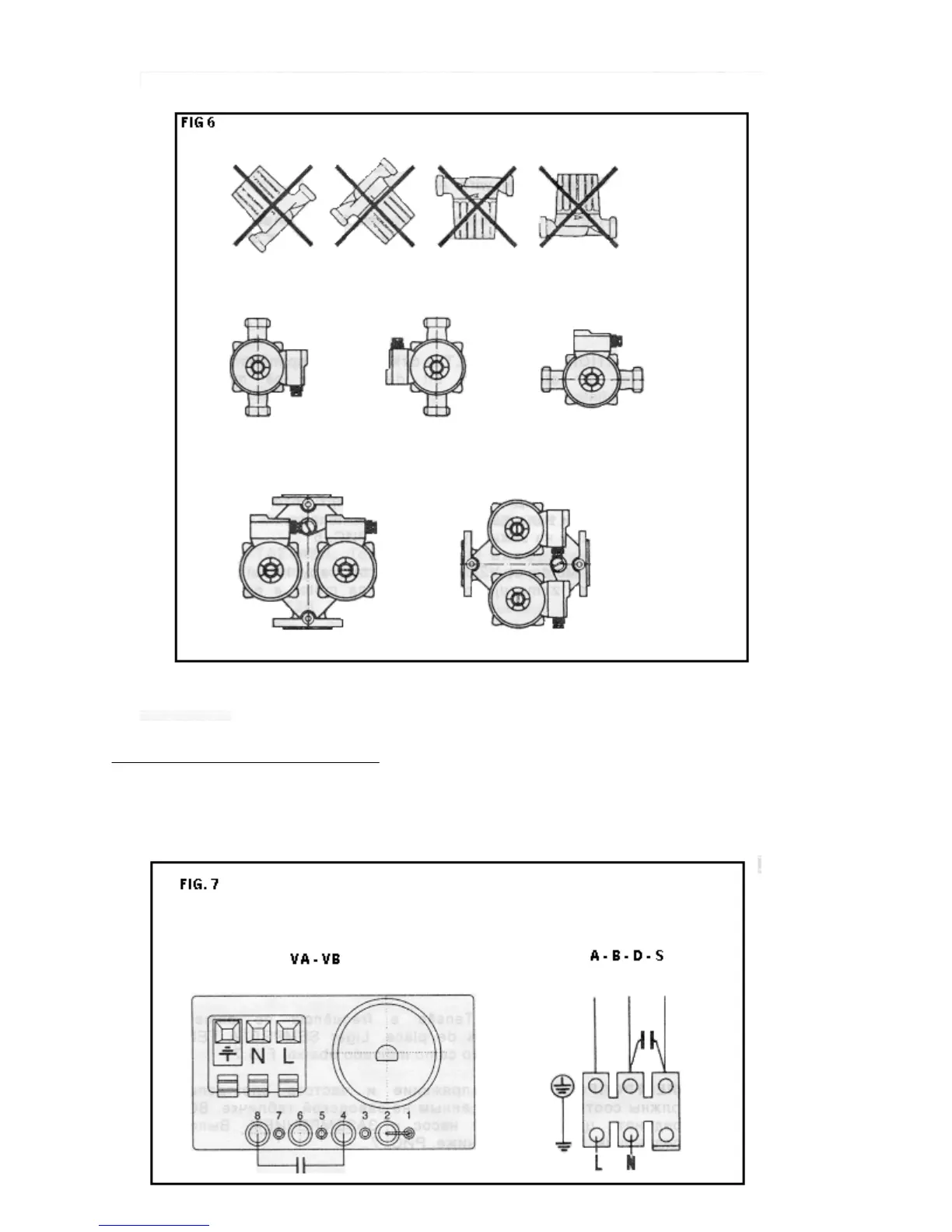

FIG. 7
