Dacor CM24P-1 Installation Instructions

9
InstallatIon InstructIons
The cabinet glides mount to the inside of the cabinet.
The glides on the coffee system slide into the cabinet
glides. The glide system allows the coffee system to
slide in and out of the cabinet for loading the coffee
bins and for maintenance.
To install the cabinet glides:
• Determine the number of shims required to mount the
cabinet glide assemblies according to the chart and
diagrams below. The appliance is supplied with six
1/16” (1mm) metal shims. Use the shims to position
the fixing angles so that they are properly spaced.
The appliance will not slide in and out of the cabinet
properly if the fixing angles are not properly spaced.
22 1/8” (562mm) Nom.
3/4” (19mm)
Min. Side Walls
4” X 12” (100mm X 300mm) Min.
Cabinet Back Cutout for
Air Circulation
Side Wall
Cabinet Base
Shim
Fixing Angle
Cabinet
Glide
Cabinet
Glide
Asssembly
Cutout Width Number of Metal Shims Required
22 1/8” (562mm) 0
22 3/16” (564mm) 2 total (1 on each side)
22 1/4” (566mm) 4 total (2 on each side)
22 3/8” (568mm) 6 total (3 on each side)

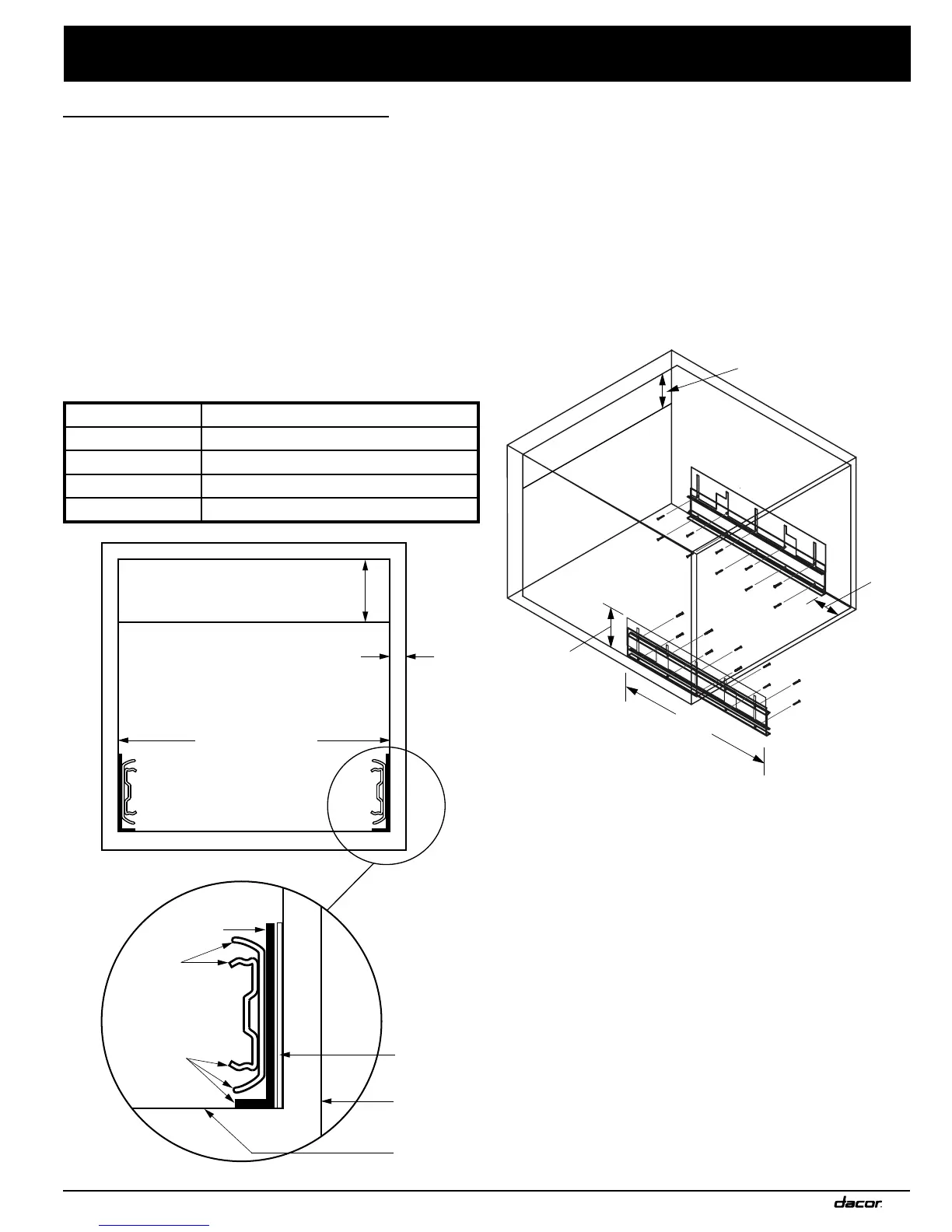

InstallIng the cabInet glIdes
Cabinet Glide Assembly and Shims
Cabinet Front
Cabinet Rear
4” (100mm)
Cabinet Back Cutout for
Air Circulation
3 1/2”
(8.9cm)
18”
(45.7cm)
3 9/16”
(9.0cm)
Cabinet Glide Installation
• Put the two cabinet glide assemblies, and shims if
necessary, as shown on the inside surfaces of the
cabinet. Position them 3 1/2” (90mm) from the front
edge of the cutout opening.
• Insert the screws in the holes of the glides without
tightening them completely.
• Make sure the outside distance between the fixing
angles is 22 1/8” (562mm) and that the glides are level.
Change the number of shims or adjust the fixing angles
as necessary.
IMPORTANT: Make sure that glides are level.
• Tighten all of the screws.
• Make sure that the power cord and water feed line can
be fed freely through the back wall.
• In order to avoid overheating the coffee system, make
an opening of at least 3 15/16” (100mm) at the back of
the cabinet to allow air to circulate.
