10
Panel Weight/Thickness Specifications
Refrigerator Door Freezer Drawer
Maximum
Weight
51 lb (23 kg) 25 lb (11 kg)
Panel
Thickness
3/4 in (18 mm) min.
1 1/8 in (28 mm)
max.
3/4 in (18 mm) min.
1 1/8 in (28 mm)
max.
Freezer Drawer Panel

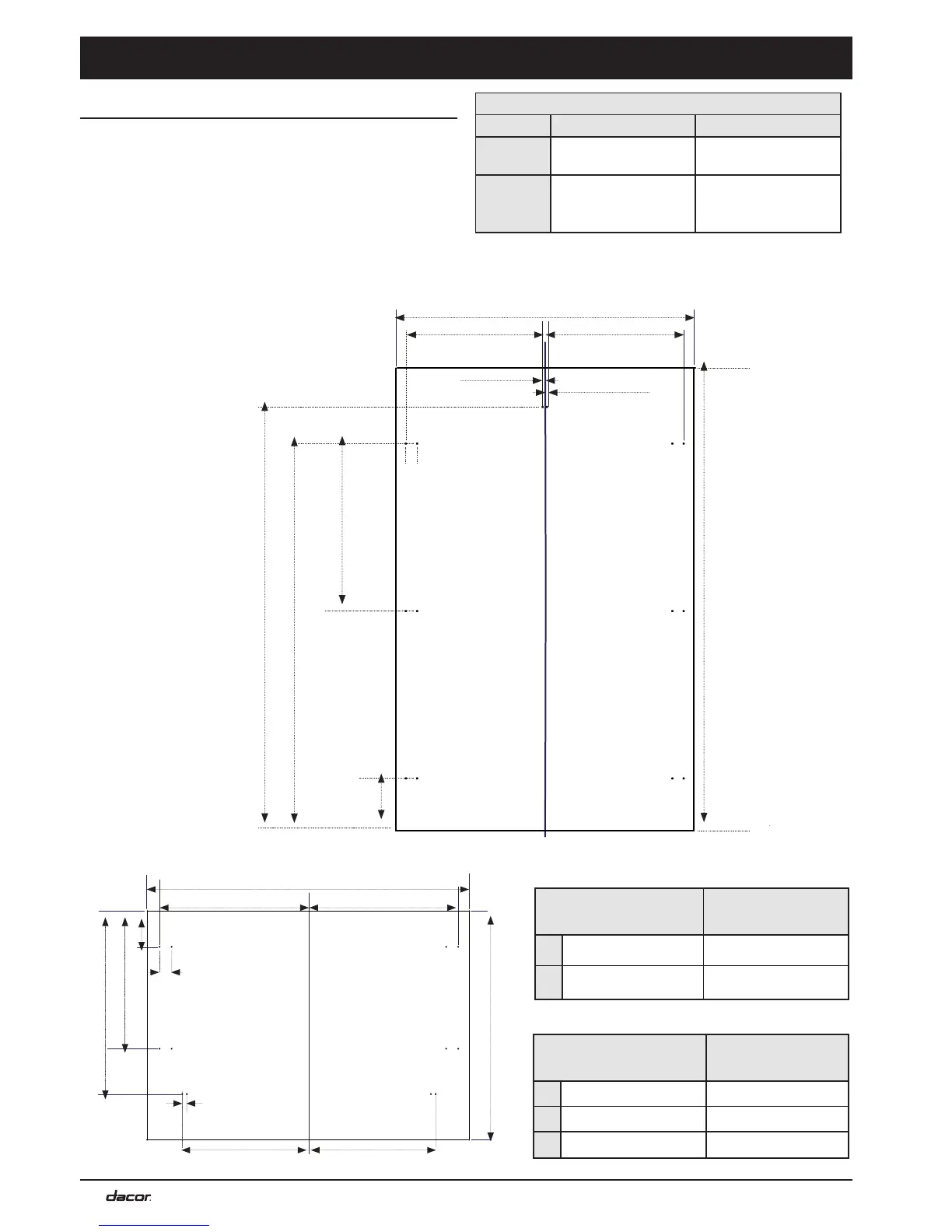

Custom Door Panel Construction
Models DYF30BFBPL, DYF30BFBPR, DYF36BFBPL
and DYF36BFBPR Only
The door and freezer panels can extend above and
below the edges of the unit.
The dimensions can be adjusted according to your
unique and specific requirements, cabinetry setup, and
design style.
Use a 1/16” drill bit for all holes.
Be careful not to penetrate the front finish.
Installation Specifications
Refrigerator Door Panel
DYF30BFBPL
DYF30BFBPR
DYF36BFBPL
DYF36BFBPR
a 29 3/8 in ( 74.7 cm) 35 1/4 in (89.7 cm)
B 13 1/2 in (34.2 cm) 16 1/2 in (4.17 cm)
DYF30BFBPL
DYF30BFBPR
DYF36BFBPL
DYF36BFBPR
a 29 3/8 in ( 74.7 cm) 35 1/4 in (89.7 cm)
B 13 1/2 in (4.17 cm) 16 1/2 in (4.17 cm)
C 11 in (27.95 cm) 14 in (35.45 cm)
Refrigerator Door
Freezer Drawer
Tolerances: ±1/16” (±1.6 mm)
C
L
B
B
20 in (50.8 cm)
15 in (38.2 cm)
4 in (10 cm)
a
C
C
25 in MAX (63.5 cm)
C
L
1/2 in (1.3 cm)
1 3/8 (3.4cm)
BB
1/4 in (0.65 cm)
1/4 in (0.65 cm)
A
1 3/8 in
(3.4 cm)
6 1/4 in
26 in (66 cm)
45 3/4 in (116.3 cm)
50 1/8 in (127.3 cm)
(15.7 cm)
54 3/4 in (139 cm)
An 1/8” gap between panels is recommended
