Dacor Discovery series User Manual

3

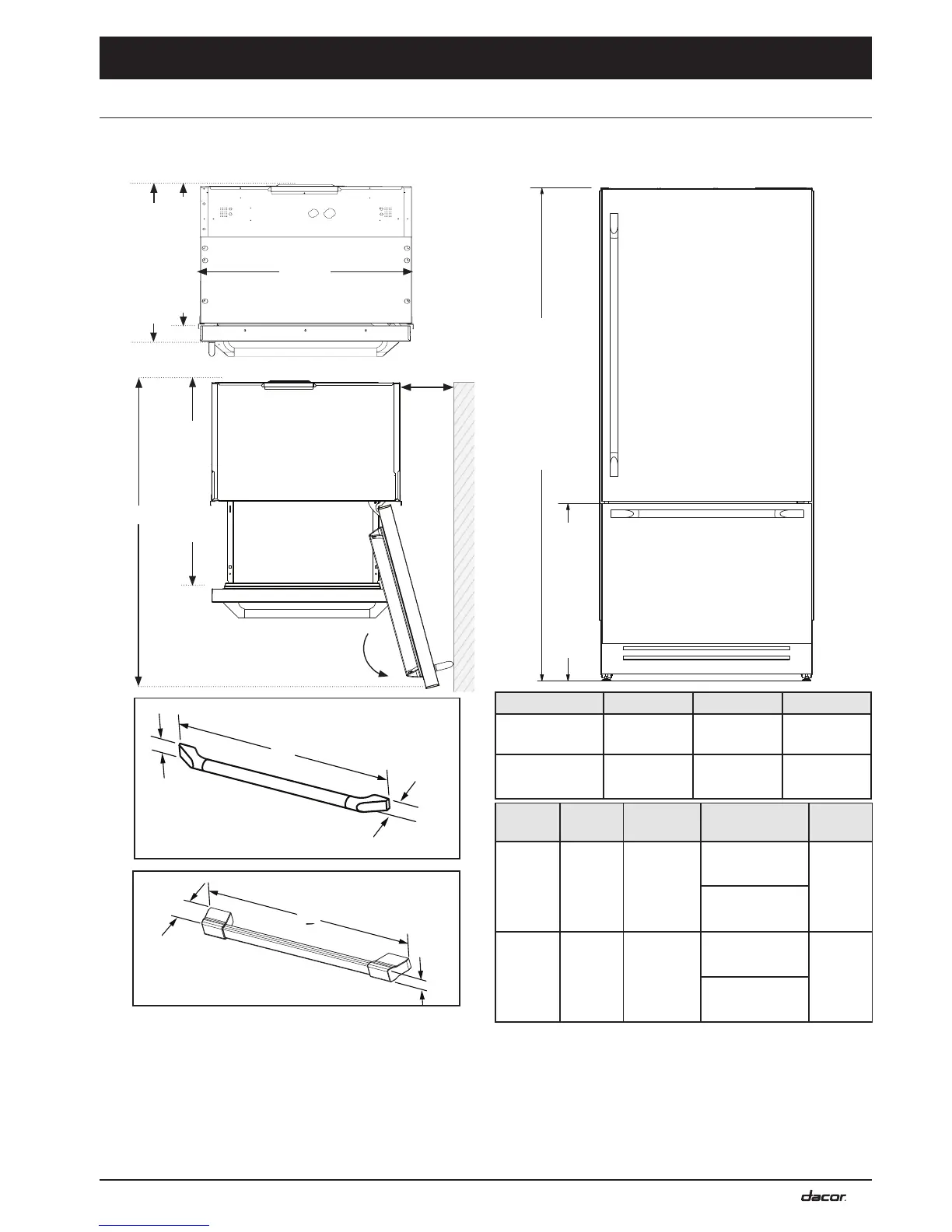

Product Specifications
Product Dimensions: Stainless, Bottom Compressor
Product tolerances: ±1/16” (±1.6 mm)
Models DYF30BFBSL DYF30BFBSR, DYF36BFBSL DYF36BFBSR
Model A
3
B C
6
DYF30BFBSL
DYF30BFBSR
29 1/2 in
(74.9 cm)
52 in
(132.0 cm)
4 3/8 in
(11.2 cm)
DYF36BFBSL
DYF36BFBSR
35 3/8 in
(89.9 cm)
57 7/8 in
(147.0 cm)
5 1/2 in
(13.8 cm)
1
Excludes depth of door handle.
2
For cabinet depth, with side trim removed,
subtract 3/4 in (1.9 cm).
3
For cabinet width, with side trim removed,
subtract 1/2 in (1.3 cm).
4
30-inch wide models.
A
B
C
Pro handle (optional)
D
E
F
Epicure handle
(standard on bottom compressor models)
A
B
C
D
E
F
5
36-inch wide models.
6
Dimensions are with standard, Epicure style door handle
installed. Distance to side wall is required to allow door to
open 105-degrees. However, a 90-degree door opening is
sufficient to allow all drawers to open to full extension.
7
Height can be increased up to 1 inch (2.5 cm) using the
adjustable legs.
Electric cord length: 90 inches (2.3 m)
Handle D
E - Refrig
Door
E - Freezer
Door
F
Epicure
13/16 in
(2.1 cm)
37 3/8 in
(94.9 cm)
25 1/2 in
4
(94.9 cm)
2 3/8 in
(6.0 cm)
31 1/2 in
5
(80.0 cm)
Pro
1 1/2 in
(3.8 cm)
37 3/4 in
(95.9 cm)
25 15/16 in
4
(65.8 cm)
2 1/2 in
(6.4 cm)
31 13/16 in
5
(80.8 cm)
25
⅛
in (63.8 cm)
1
22
⅛
in (58.7 cm)
2
a
3
Depth Dimensions
28 7/8” (73.2 cm)
7
83 1/2” (212.1 cm)
7
B
40 in (101.6 cm)
1
105°
C
6
Height Dimensions
