Installation Specifications
Custom Grill Panel Construction
Optional for models DYF30BFBPL, DYF30BFBPR,
DYF36BFBPL and DYF36BFBPR.

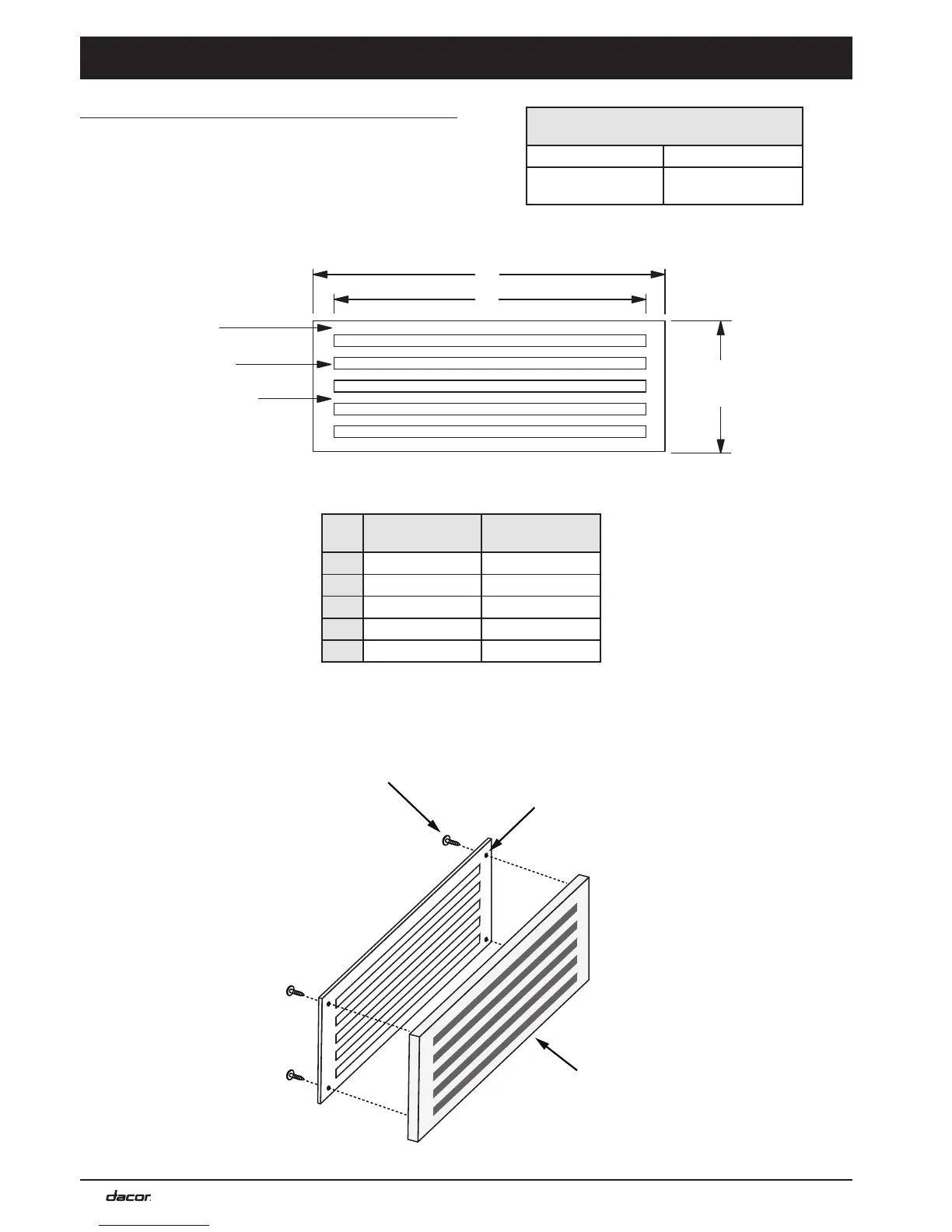

Construct the custom grill panel to the dimensions below.
Grill Panel Weight/Thickness
Specifications
Maximum Weight
10 lb (4.5 kg)
Panel Thickness
3/4” (18 mm) min.
1 1/8” (28 mm) max.
Tolerances: ±1/16” (±1.6 mm)
Drill hole in supplied grill,
4 places
Customer supplied
screw, 4 places
Custom panel
8 1/2”
(21.6 cm)
A
C
D
E
B
DYF30BFBPL
DYF30BFBPR
DYF36BFBPL
DYF36BFBPR
A
29 3/8” (74.7 cm) 35 1/4” (89.7 cm)
B
27 7/8” (708 mm) 27 7/8” (708 mm)
C
13/16” (20 mm) 13/16” (20 mm)
D
5/8” (15 mm) 5/8” (15 mm)
E
15/16” (25 mm) 15/16” (25 mm)
