Dacor Discovery series User Manual

5

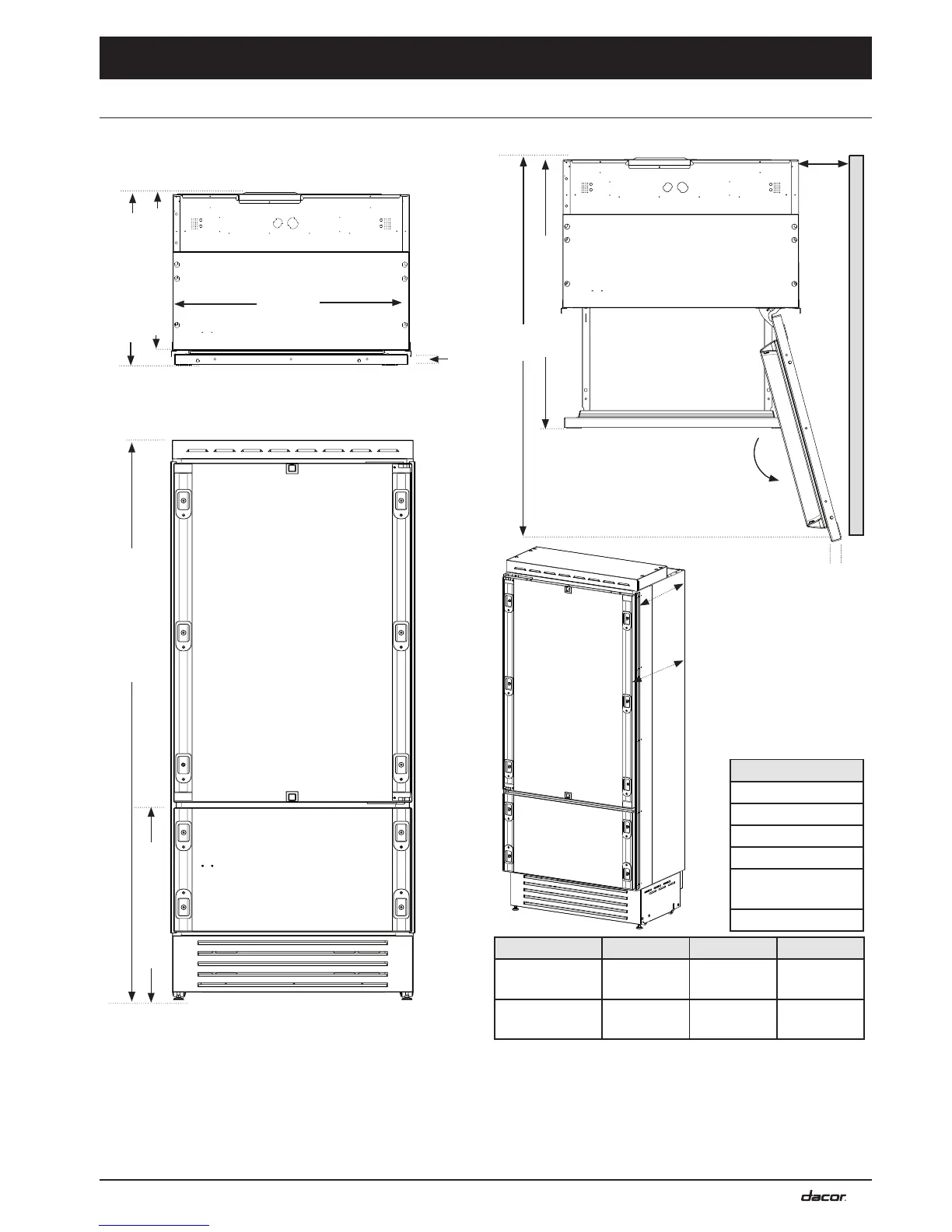

Product Dimensions: Panel Ready, Bottom Compressor
Model A
3
B C
4
DYF30BFBPL
DYF30BFBPR
29 1/2 in
(74.9 cm)
52 in
(132.0 cm)
2 1/8 in
(5.3 cm)
DYF36BFBPL
DYF36BFBPR
35 3/8 in
(89.9 cm)
57 7/8 in
(147.0 cm)
3 1/8 in
(7.9 cm)
1
Excludes depth of custom panel and door handle.
2
For cabinet depth, with side trim removed, subtract 3/4 in (1.9 cm)
3
For cabinet width, with side trim removed, subtract 1/2 in (1.3 cm)
4
Distance to side wall is required to allow door to open 105 degrees. Does not include custom panel thickness and door
handle depth. However, a 90-degree door opening is sufficient to allow all drawers to open to full extension.
5
Height can be increased up to 1 inch (2.5 cm) using the adjustable legs.
Models DYF30BFBPL DYF30BFBPR, DYF36BFBPL DYF36BFBPR
Product Specifications
Electrical cord length: 90 in (2.3 m)
105°
C
4
39 in (99.2 cm
)1
B
Product tolerances: ±1/16” (±1.6 mm)
24 1/8 in (61 cm)
1
22
1/8
in (56 cm)
2
a
3
1
1/2
in (3.81 cm)
Depth Dimensions
1 1/2 in
28
⅜
in (72.1 cm)
5
83
½
in (212.1 cm)
5
DYF 30 & 36
Refrigerator Only:
22 1/8 in
Door Only Depth:
1 1/2 in
Refrigerator +
Door:
24 1/8 (+ padding)
Height Dimensions
Depth Dimensions
Door
Thickness
22 1/8 in
Depth
24 1/8 in
Depth
Depth Dimensions

Dacor Discovery series Specifications
