Dacor DO130 Planning Guide

PLANNING
GUIDE
1.8
Specications subject to change without notice. Phone: (800) 793-0093www.dacor.com
Double, Distinctive
Wall Oven
DO
4” typical toe kick
Recommended
electrical
location
N
P
R
3/4” (1.9 cm)
support platform
1” (2.5 cm) min.
to bottom of
cabinet door
1” (2.5 cm) Min.
to top of
drawer face
9 5/8” (24.4 cm)
recommended

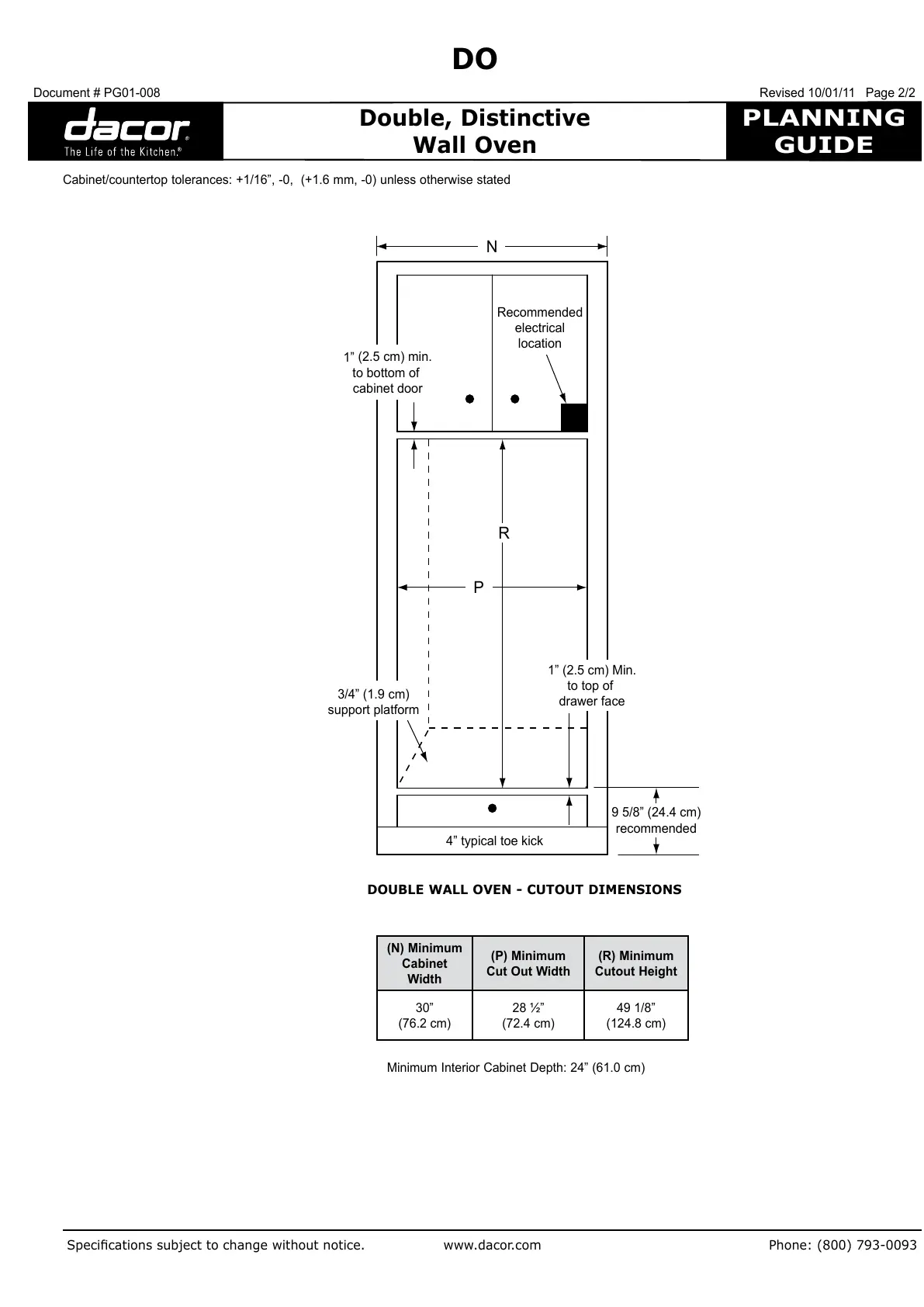

DOUBLE WALL OVEN - CUTOUT DIMENSIONS
(N) Minimum
Cabinet
Width
(P) Minimum
Cut Out Width
(R) Minimum
Cutout Height
30”
(76.2 cm)
28 ½”
(72.4 cm)
49 1/8”
(124.8 cm)
Minimum Interior Cabinet Depth: 24” (61.0 cm)
Cabinet/countertop tolerances: +1/16”, -0, (+1.6 mm, -0) unless otherwise stated
Document # PG01-008 Revised 10/01/11 Page 2/2
