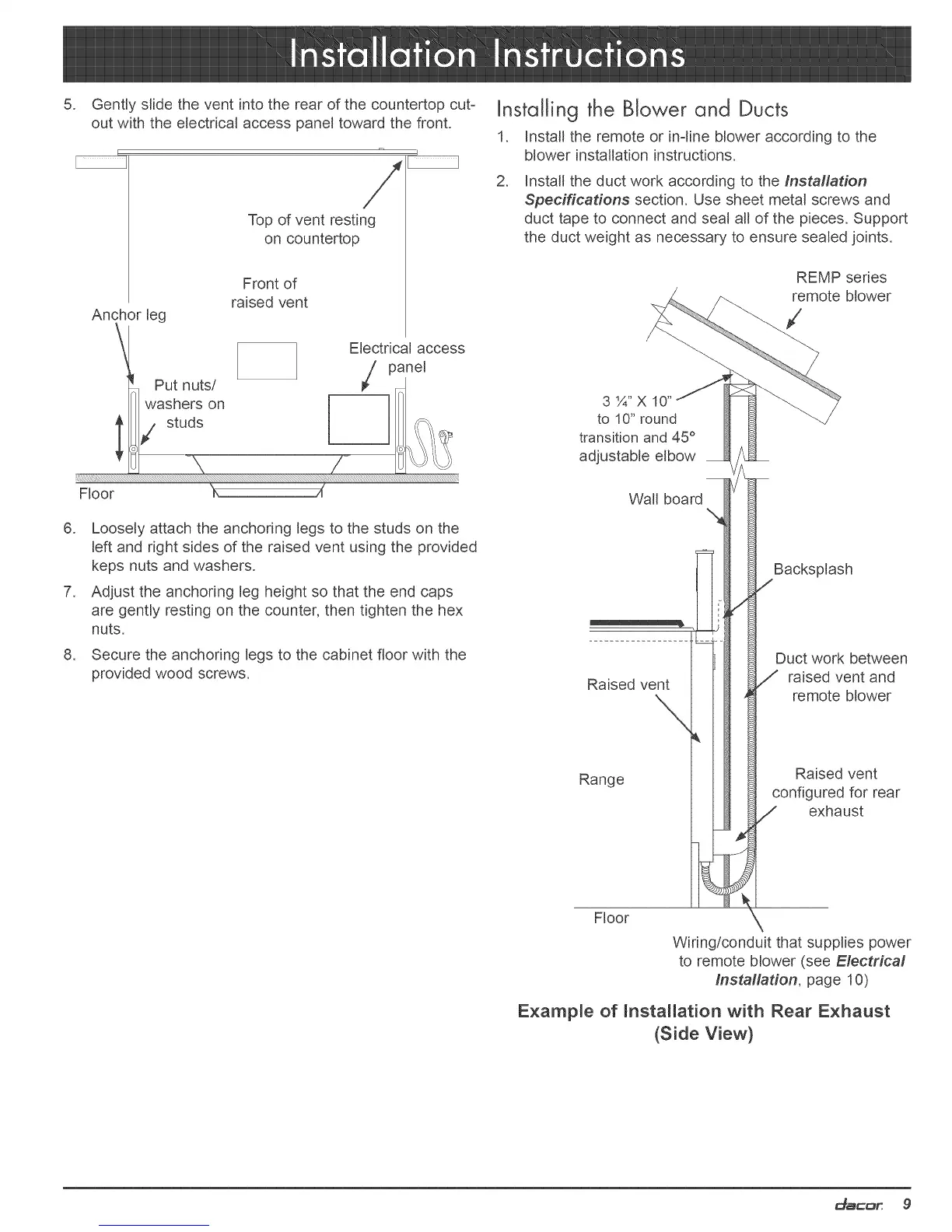

Gently slide the vent into the rear of the countertop cut°
out with the electrical access panemtoward the front.
.
.
.
Top of vent resting
on countertop
Anchor leg
\
Front of
raised vent
Put nuts/
washers on
i _¢/ studs
....................................................................................................................
Floor _ /
Electrical access
panem
Loosely attach the anchoring legs to the studs on the
left and right sides of the raised vent using the provided
keps nuts and washers.
Adjust the anchoring leg height so that the end caps
are gently resting on the counter, then tighten the hex
nuts.
Secure the anchoring legs to the cabinet floor with the
provided wood screws.
Installing the Blower and Ducts
1. Instal_ the remote or in-line blower according to the
blower installation instructions.
.
Install the duct work according to the Installation
Specifications section. Use sheet metal screws and
duct tape to connect and seat all of the pieces. Support
the duct weight as necessary to ensure sealed joints.
hEMP series
remote blower
3 ½" X 10"
to 10" round
transition and 45 °
adjustable elbow
Wall board
Raised vent
\
Range
Floor
Backsplash
/
Duct work between
j raised vent and
remote blower
Raised vent
configured for rear
J exhaust
\
Wiring/conduit that supplies power
to remote blower (see Electrical
Installation, page 10)
Example of installation with Rear Exhaust
(Side View}
