Dacor ERV30 - Product Dimensions

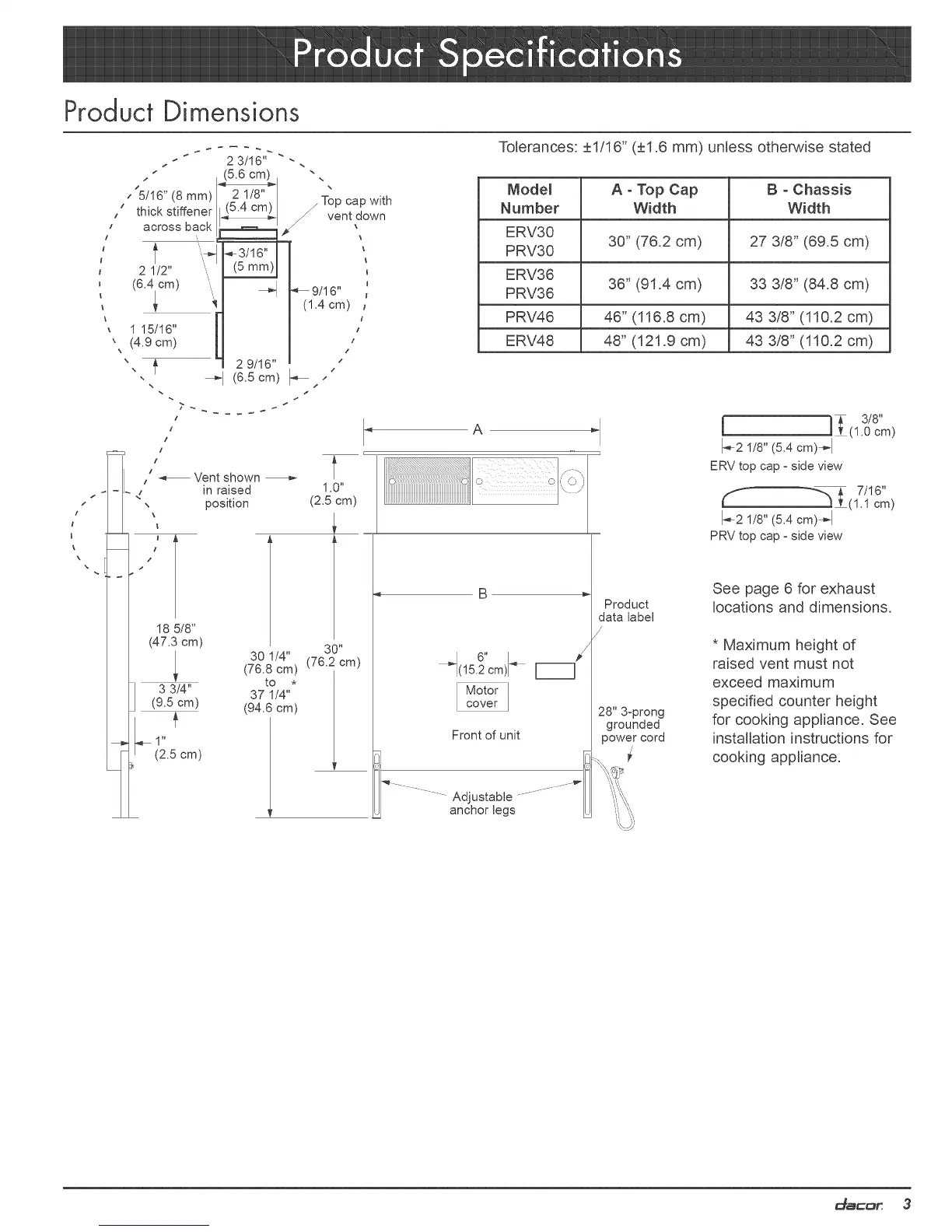

Product Dimensions
/
I
J
\
5/16" (8 mm)
thick stiffener
across back
t v-I
2 1/2" '
(6.4 cm)
1 15/16"
(4.9 cm)
,_ 23/16 ''_ " "
." (5.6 cm) I
21/8" I
(5.4 cmk
[
2 9/16"
(6.5 cm) _,,,"
18 5/8"
(47.3 cm)
3 3/4"
(9.5 cm)
Vent shown
in raised
position
_Top cap with
vent down
/
1.0"
(2.5 cm)
_, 9/16"
(1.4 cm)
30"
30 1/4" (76.2 cm)
(76.8 cm)
to *
37 I/4"
(94.6 cm)
Tomerances:+1/16" (+1.6 mm) unless otherwise stated
Model A ° Top Cap B ° Chassis
Number Width Width
ERV30
30" (76.2 cm) 27 3/8" (69.5 cm)
PRV30
ERV36
36" (91.4 cm) 33 3/8" (84.8 cm)
PRV36
PRV46 46" (116.8 cm) 43 3/8" (110.2 cm)
ERV48 48" (121.9 cm) 43 3/8" (110.2 cm)
3/8"
-- J l_(1.0cm)
1_21/8"(5.4cm)_l
ERV top cap _side view
,- 8" F--1 /
(15.2 cm)
Front of unit
........ Adjustable .........
anchor legs
Product
data label
/
28" 3-prong
grounded
power cord
l 7/16"
( V (1.1 cm)
1_2 1/8"(5,4cm)-d
PRV top cap _side view
See page 6 for exhaust
locations and dimensions.
* Maximum height of
raised vent must not
exceed maximum
specified counter height
for cooking appliance. See
installation instructions for
cooking appliance.
