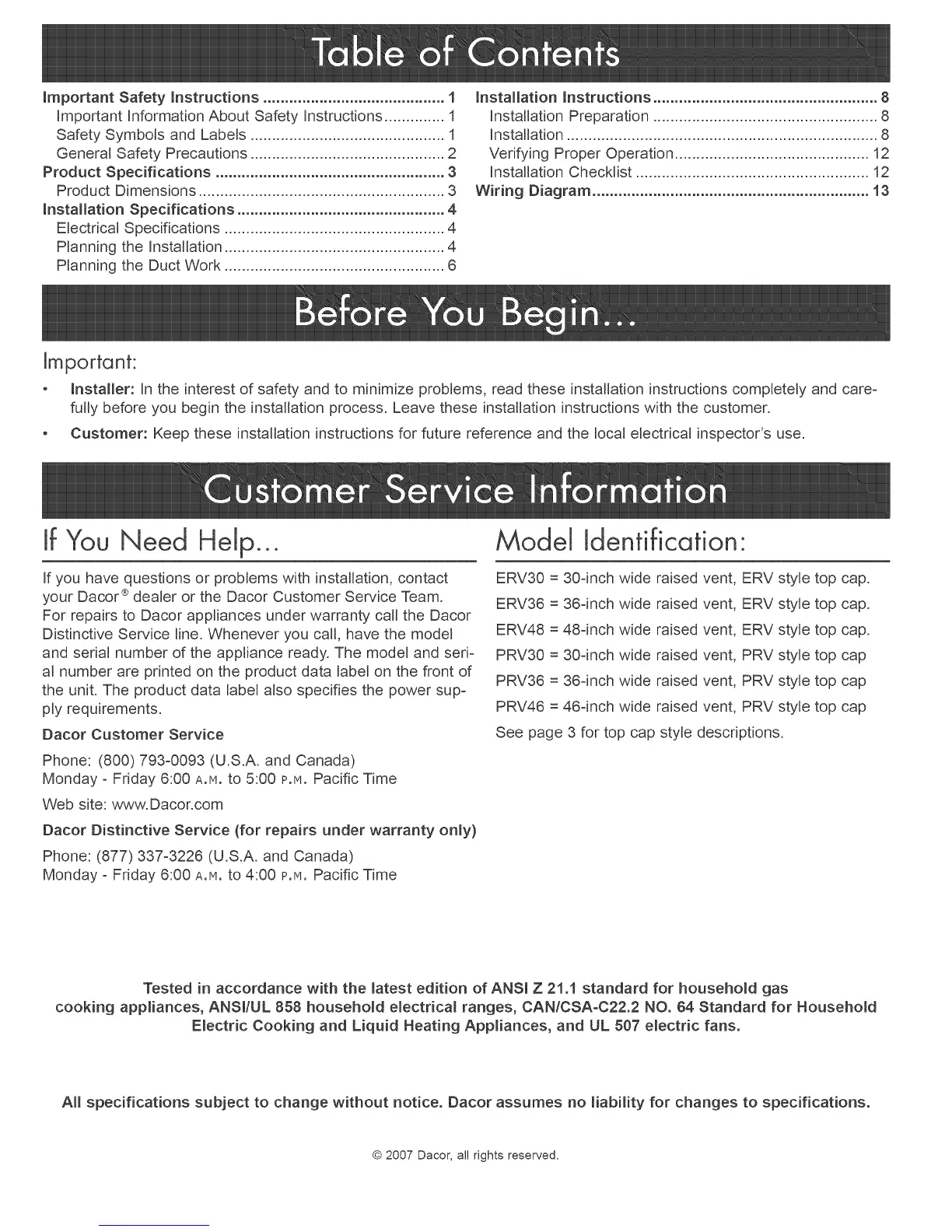

important Safety instructions .......................................... 1
Important Information About Safety Instructions .............. 1
Safety Symbols and Labels ............................................. 1
General Safety Precautions ............................................. 2
Product Specifications ..................................................... 3
Product Dimensions ......................................................... 3
installation Specifications ................................................ 4
Electrical Specifications ................................................... 4
Planning the Installation ................................................... 4
Planning the Duct Work ................................................... 6
installation instructions .................................................... 8
Installation Preparation .................................................... 8
InstalJation ........................................................................ 8
Verifying Proper Operation ............................................. 12
Installation Checklist ...................................................... 12
Wiring Diagram ................................................................ 13
important:
. installer: in the interest of safety and to minimize problems, read these installation instructions completely and care°
fully before you begin the installation process. Leave these installation instructions with the customer.
. Customer: Keep these installation instructions for future reference and the local electrical inspector's use.
JfYou Need Help...
If you have questions or problems with installation, contact
your Dacor ®dealer or the Dacor Customer Service Team.
For repairs to Dacor appliances under warranty call the Dacor
Distinctive Service line. Whenever you call, have the model
and serial number of the appliance ready. The model and seri-
al number are printed on the product data label on the front of
the unit. The product data label also specifies the power sup-
ply requirements.
Dacor Customer Service
Phone: (800) 793-0093 (U.S.A. and Canada)
Monday - Friday 6:00 A.M. to 5:00 P.M. Pacific Time
Web site: www.Dacor.com
Dacor Distinctive Service (for repairs under warranty only}
Phone: (877) 337-3226 (U.S.A. and Canada)
Monday - Friday 6:00 A.M. to 4:00 P.M. Pacific Time
Model identification °
ERV30 = 30dnch wide raised vent, ERV style top cap.
ERV36 = 36dnch wide raised vent, ERV style top cap.
ERV48 = 48dnch wide raised vent, ERV style top cap.
PRV30 = 30dnch wide raised vent, PRV style top cap
PRV36 = 36dnch wide raised vent, PRV style top cap
PRV46 = 46dnch wide raised vent, PRV style top cap
See page 3 for top cap style descriptions.
Tested in accordance with the latest edition of ANSi Z 21.1 standard for household gas
cooking appliances, ANSJ/UL 888 household e[ectrica_ ranges, CANiCSA-C22.2 NO. 64 Standard for Household
Electric Cooking and Liquid Heating Appliances, and UL 507 electric fans.
A[[ specifications subject to change without notice. Dacor assumes no liability for changes to specifications.
@2007 Dacor, all rights reserved,
