REMP16
remoteblower
Connectwires/conduitJ
accordingto remoteblower
installationinstructions
Raisedvent
\
Range
Wiring/conduit from raised vent
to remote blower

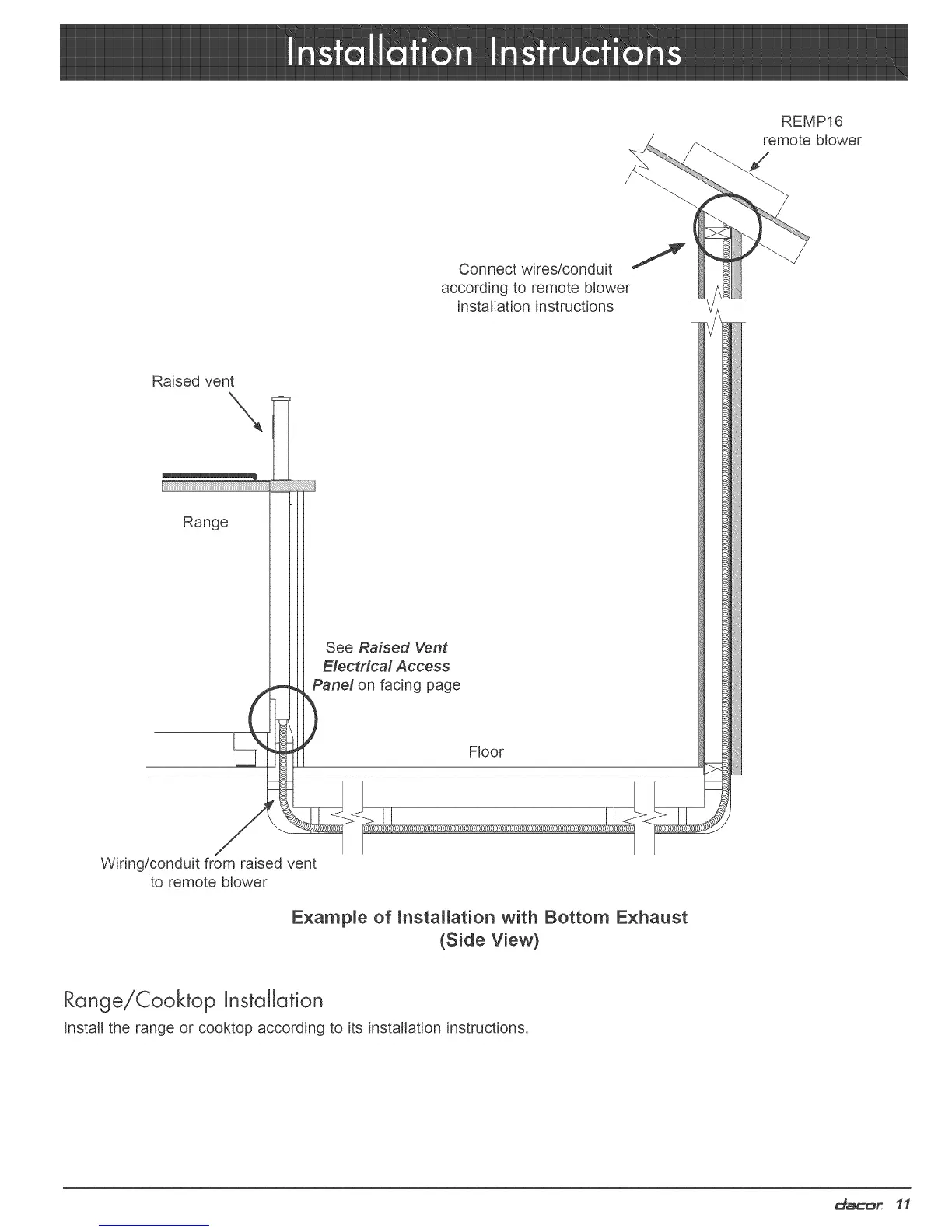

Example of installation with Bottom Exhaust
(Side View)
Range/Cooktop lnstaJJation
Install the range or cooktop according to its installation instructions.
