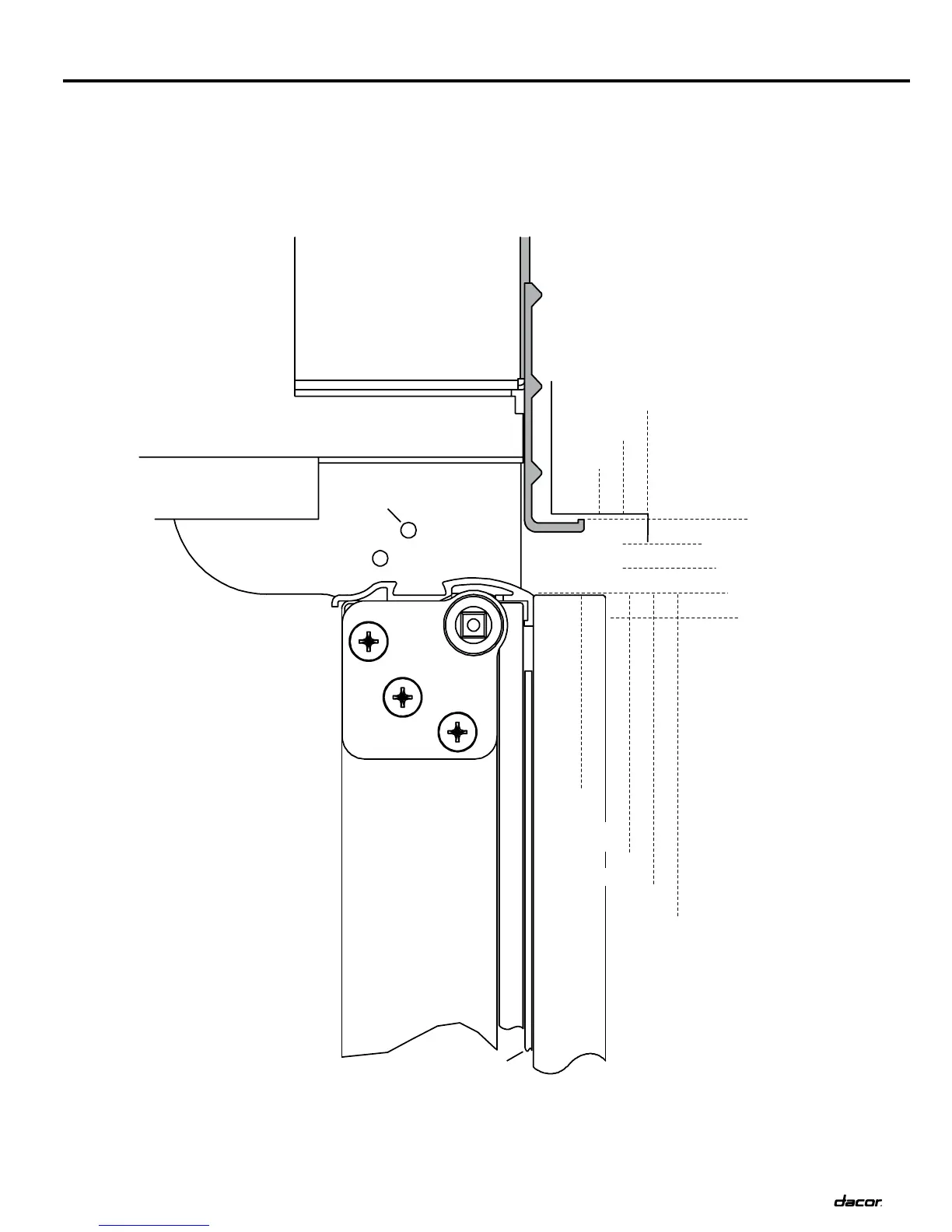

Refrigerator
Side Trim
Hinge
90° Door
Stop Position
Backer Panel
Door
Overlay Panel
Door Swing 90 ˚
Actual Size
Refrigerator to
Cabinetry Clearance
(1.9 cm)
(2.5 cm)
(3.8 cm)
(1.3 cm)
(3.2 cm)
Spacer Panel
Cabinetry
1
/ 2
"
3
/ 4
"
1"
(1.3 cm)
(1.9 cm)
(2.5 cm)
Installation Requirements
Allow a minimum of 4½” (11.4 cm) of space between the side of the refrigerator and a corner wall. More clearance may be needed if
thicker custom panels or custom handles are used. Do not overlook baseboards.
Door Swing 90°
Actual Size
Refrigerator to
Cabinetry Clearance
