13
Custom Side Panels - EF42/EF48
Custom side panels may be needed when not enough space is
available to have cabinets on both sides of the refrigerator or
when the refrigerator is placed at the end of a cabinet run. You
may choose an inset, flush or recessed inset panel installation for
models EF42 and EF48.

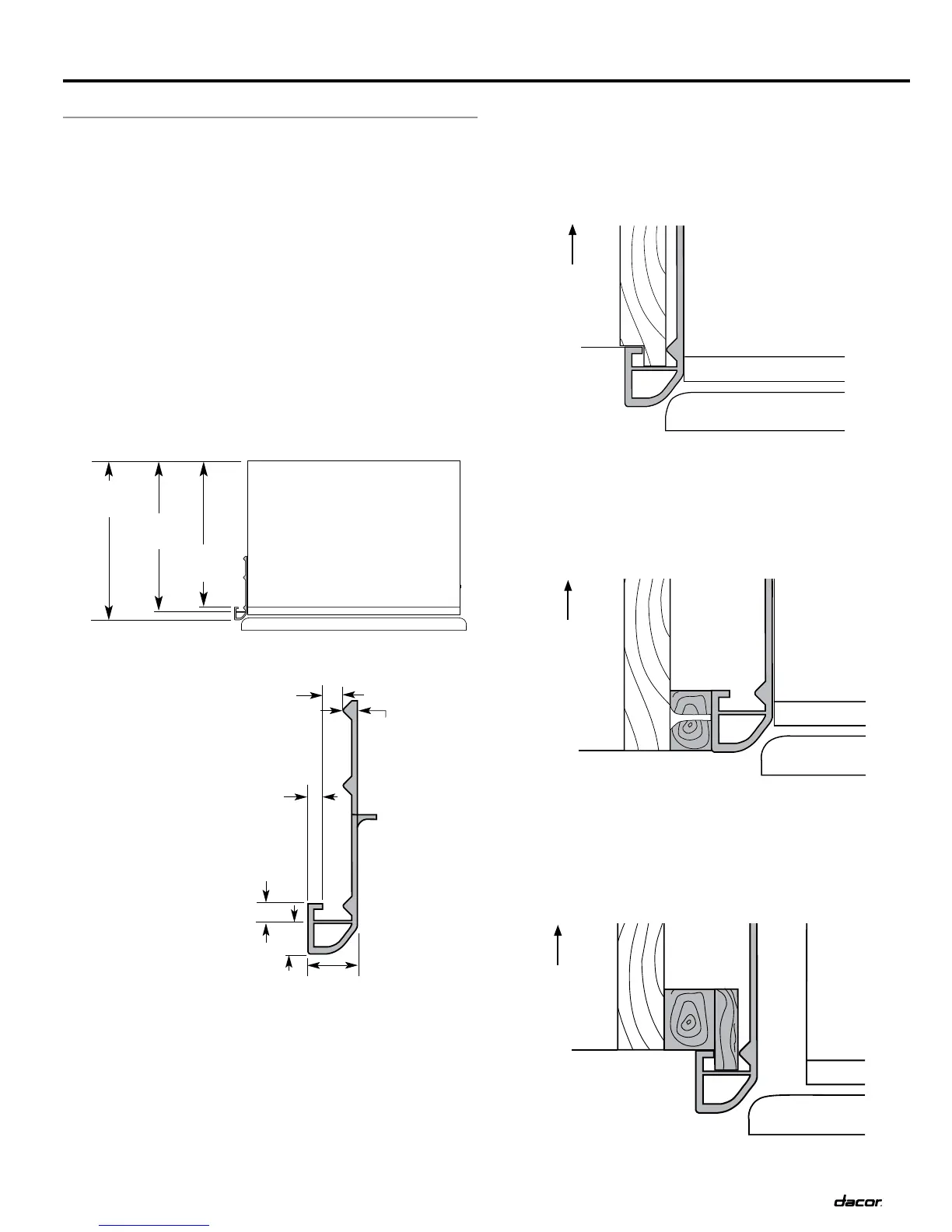

Refrigerator and Side Trim Dimensions
The width and height of a side panel are determined by the type
of installation you are planning.
NOTES:
The dimensions shown are actual product dimensions and
may not reflect the needed installation dimensions.
The side panel should be a minimum of ½” (1.3 cm) thick to
avoid warping.
If the opening depth is 25” (63.5 cm) or more, you may want to
install a support board on the rear wall.
Refrigerator
Side Trim
Inset Installation Dimensions
Measure the distance from point 1. A (as shown) to the back
wall. Add
7
⁄32” (5.6 mm) to this measurement to allow the side
panel to fit into the trim.
If the panel is more than ¼” (6.4 mm) thick, route the front 2.
edge to allow the side panel to fit into the trim.
Flush Installation Dimensions
Measure the distance from point 1. B (as shown) to the back
wall.
Attach the support board with a screw or adhesive that is 2.
compatible with aluminum and wood.
Recessed Inset Installation Dimensions
Measure the distance from point 1. C (as shown) to the back
wall.
Route the front edge of the support board or attach a 2.
¼” (6.4 mm) board to hold the panel in the cabinet side trim.
Installation Requirements
Back wall
A
Back wall
B
Back wall
C
24¹⁄8
"
(61.3 cm)
23
½
"
(59.7 cm)
23¹¹⁄16
"
(60.3 cm)
23 1/2”
(59.7 cm)
23 11/16”
(60.3 cm)
24 1/8”
(61.3 cm)
7/32” (5.5 mm)
13/32” (10 mm)
5/8”
(15.7 mm)
11/64”
(4.5 mm)
1/4” (6.35 mm)
3/16” (4.7 mm)
