7
130˚
130˚
90˚
90˚
110˚
110˚
50¹⁄2
"
(128.3 cm)
45¹⁄4
"
(114.9 cm)
26
³⁄4
"
(68.0 cm)
19
³⁄4
"
(50.2 cm)
40"
(101.6 cm)
43
¹⁄2"
(110.5 cm)

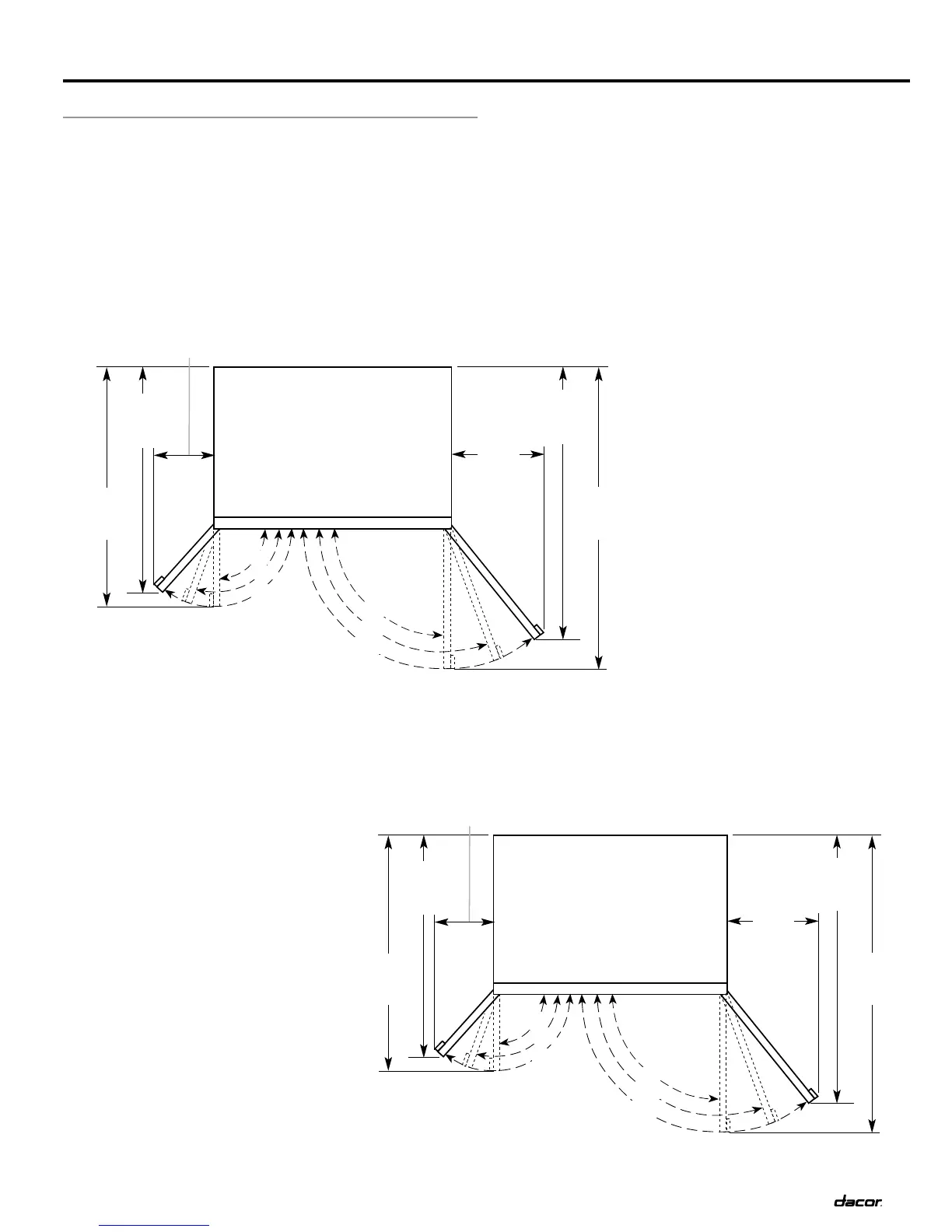

Door Swing Dimensions
The location must permit both doors to open to a minimum of
90°. Allow 4½” (11.4 cm) minimum space between the side of the
refrigerator and a corner wall.
NOTE: More clearance may be required if you are using overlay
panels, custom handles or extended handles on a IF series
model.
To adjust the door swing, see Adjust Doors.
EF42 and IF42 Model Series
Installation Requirements
EF48 and IF48 Model Series
130˚
130˚
90˚
90˚
110˚
110˚
47"
(119.4 cm)
42
9
⁄16 "
(108.1 cm)
23
¹⁄4
"
(59.1 cm)
17
¹⁄2 "
(44.5 cm)
38"
(96.5 cm)
41"
(104.1 cm)
