Daedong 3A165D User Manual

ENGINE

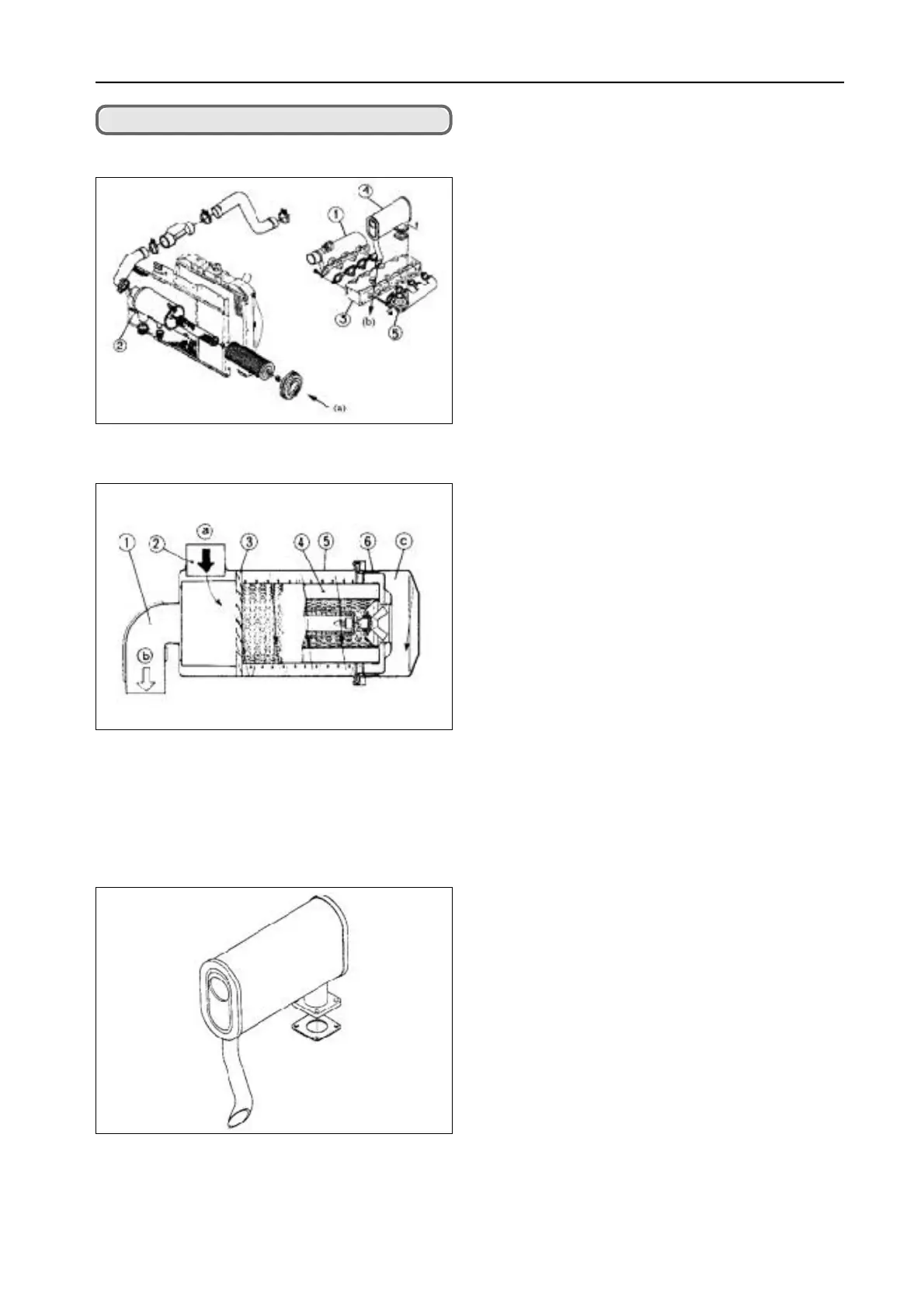

(a) Inlet Air
(b) Exhaust Gas
(1) Inlet Manifold
(2) Air Cleaner
(3) Cylinder Head
(4) Muff l e r
(5) Exhaust Manifold
The air cleaner is dry-cyclone type and easy to
maintain. The air from the inlet port(2) circulates along
the fin(3) and around the air cleaner element(4) and the
heavier dust is carried to the evacuator(6), where the
dust exhaust port. The fine dust in the air is filtered with
the air cleaner element(4), and the filtered air flows to
the outlet port(1).
(a) Inlet Air
(b) To Inlet Manifold
(c) Heavier Dust
(1) Outlet Port (4) Air Cleaner Element
(2) Inlet Port (5) Body
(3) Fin (6) Dust Cup
The exhaust noises are absorbed and dumped,
while the gas pass through a series of holes on the
inner tube and glass wool of muff l e r.
2.5 INLET AND EXHAUST SYSTEM
A. FLOW OF INLET AIR AND EXHAUST GAS
B. AIR CLEANER
C. MUFFLER
