ENGINE
(D) Main Bearing Case
1. Remove the main bearing case screws 1 and
remove the main bearing case (4).
2. Remove the thrust bearing from the flywheel end
bearing case.

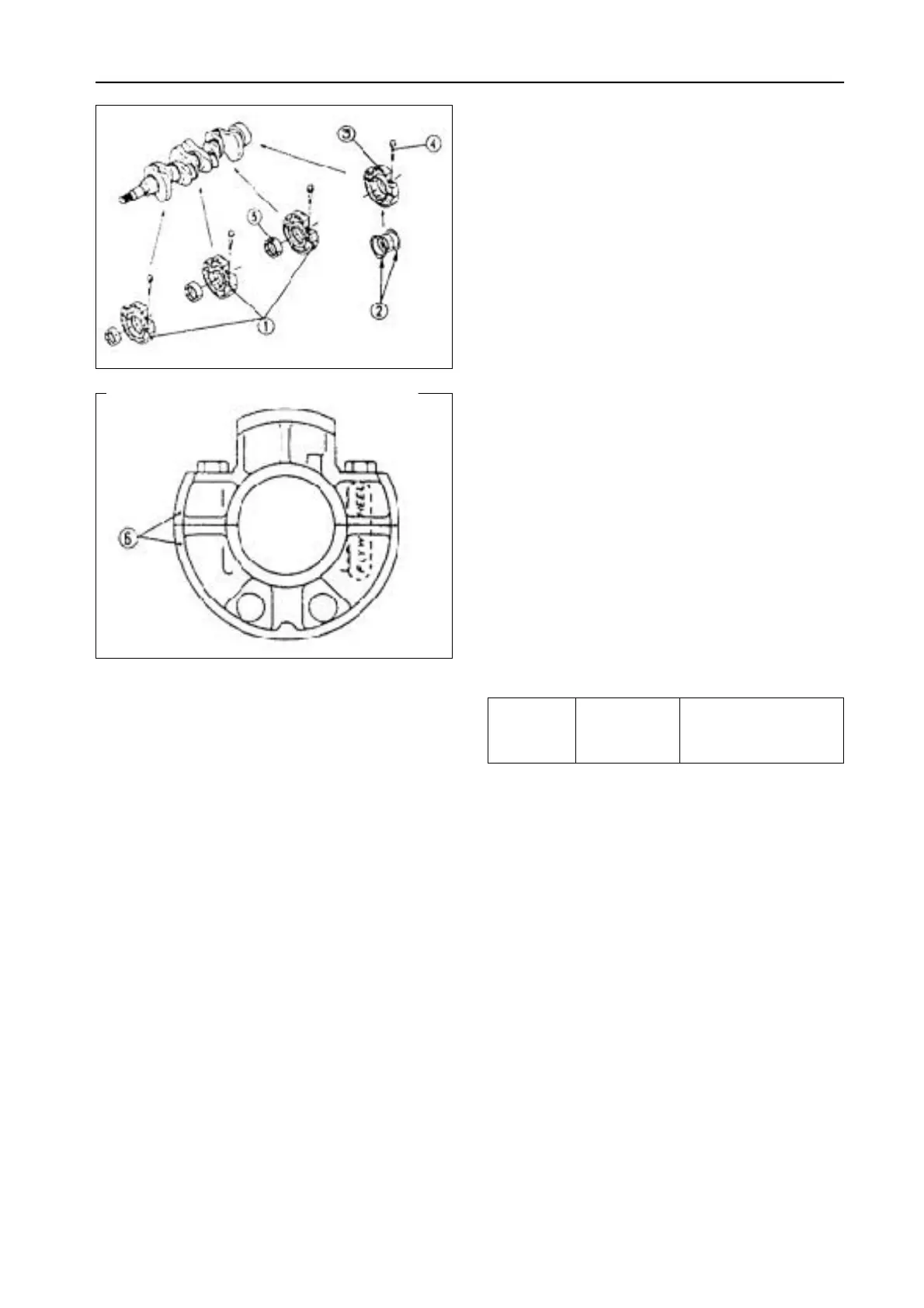

(1) Main Bearing Case 1, 2, 3
(2) Thrust Bearings
(3) Main Bearing Case Assembly
(4) Main Bearing Case Screw 1
(5) Crankshaft Bearing 2
I M P O R TANT :
• Mark the location number to the bearing case, to
prevent interchanging.
(When reassembling)
• Clean the parts and the oil passage of the bearing
c a s e .
• Apply oil to the journal, bearing inserts and the
bearing case screws(4).
• Place the thrust bearings on the bearing case with
thier oil groove outside.
• Install the main bearing case with the mark “FLY
WHEEL” toward the flywheel.
4.7 to 5.2kgf• m
Tightening Main bearing
46.1 to 51.0Nvm
torque case screw 2
34.0 to 37.6ft-lbs
