DAESUNG MAREF DVT-2600 - Page 25

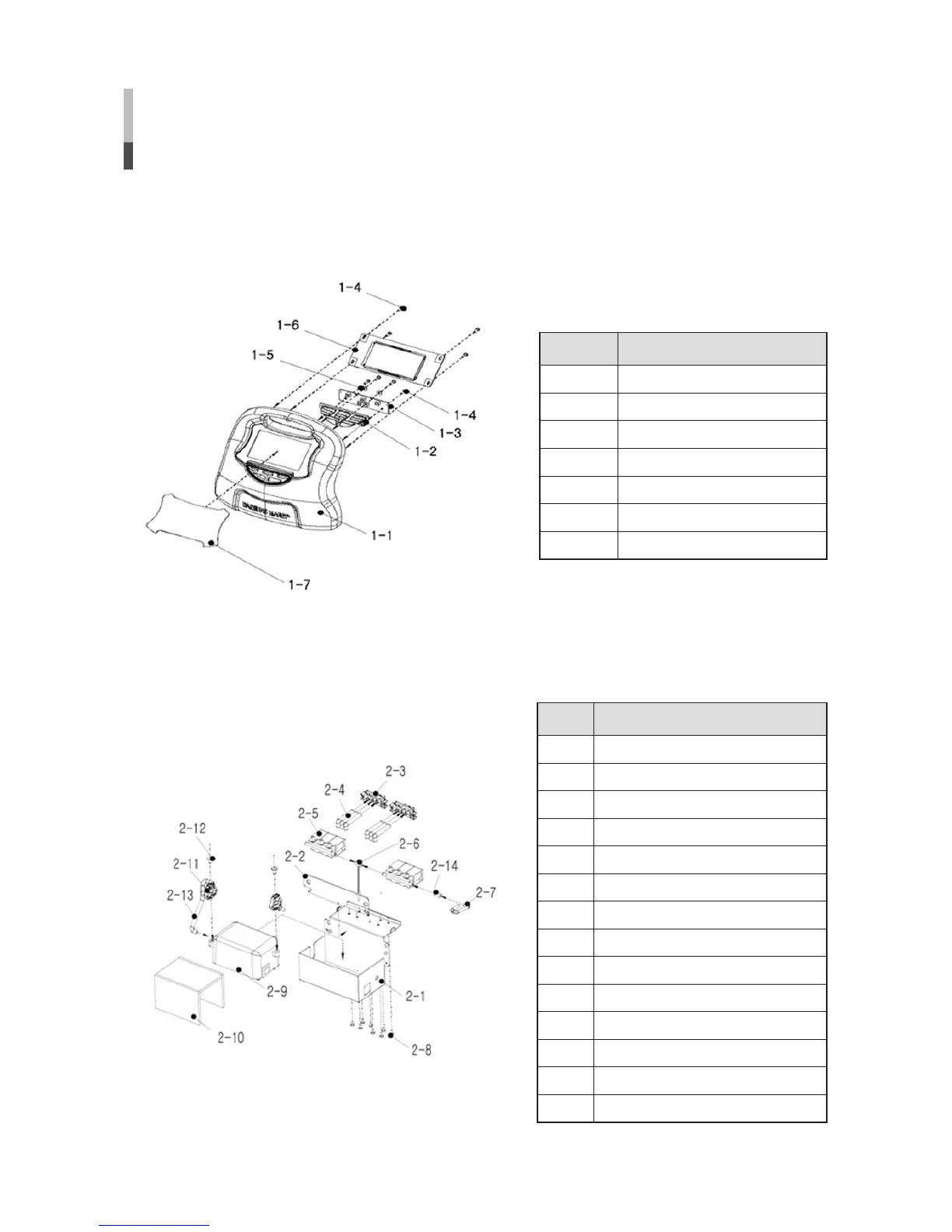

1) Parts Assembly Diagram : SUB-ASM-FORNT
2) Parts Assembly Diagram : SUB-ASM-FRAME
1-1
1-2
1-3
1-4
1-5
1-6
1-7
FRONT_COVER (1EA)
KNOB_BUTTON (1EA)
SUB_BOARD_KEY (1EA)
M3XL6 TT (8EA)
WASHER (2EA)
MAIN_BOARD_LCD (1EA)
WINDOW_SHEET (1EA)
No. Name
2-1
2-2
2-3
2-4
2-5
2-6
2-7
2-8
2-9
2-10
2-11
2-12
2-13
2-14
FRAME_MAIN (1EA)
SHEET_PLATE (1EA)
COVER_PLUG (2EA)
RUBBER_HOSE_ELBOW (6EA)
SOLENOID (2EA)
RUBBER_HOSE_CONNECTOR (1EA)
RUBBER_HOSE_PRESSURE (70mm)
M3XL5S (8EA)
PUMP (1EA)
SPONGE (3EA)
RUBBER_VIBRATION (2EA)
M4XL10 TP (2EA)
RUBBER_HOSE (120mm)
RUBBER_HOSE (20mm)
No. Name
8. Schematics
DS MAREF
25
