DAESUNG MAREF DVT-2600 - Page 26

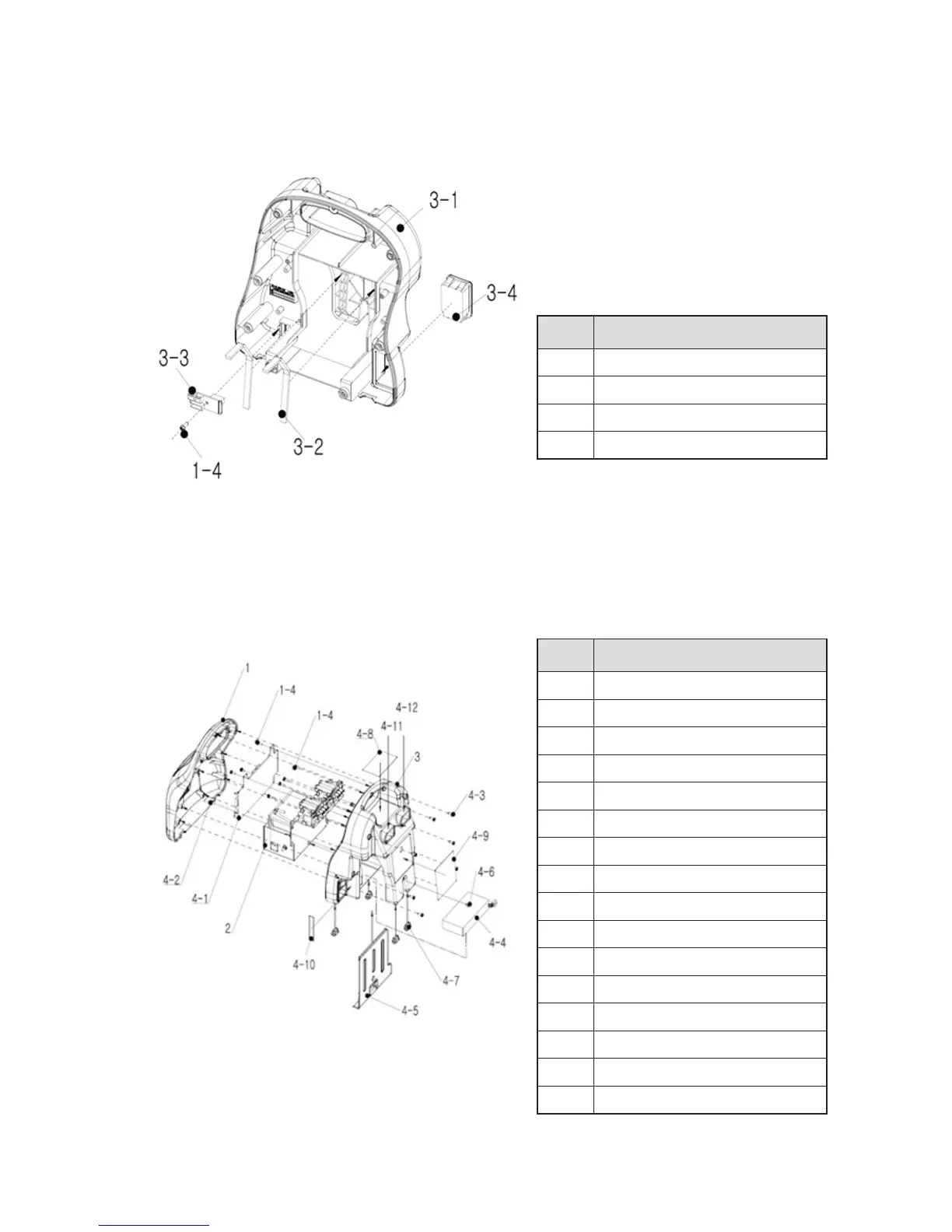

4) Parts Assembly Diagram : SUB-DVT-2600
1
1-4
2
3
4-1
4-2
4-3
4-4
4-5
4-6
4-7
4-8
4-9
4-10
4-11
4-12
SUB_ASM_FRONT
M3XL6 TT (9EA)
SUB_ASM_FRAME
SUB_ASM_REAR
SMPS (1EA)
M3XL5 S (2EA)
M3XL8 TT (8EA)
BATTERY (1EA)
CAB_BATTERY (1EA)
M3XL4 M (1EA)
RUBBER_FOOT (4EA)
STICKER (ERROR_CODE) (1EA)
LABEL (1EA)
STICKER (WARNING) (1EA)
STICKER (LEFT) (1EA)
STICKER (RIGHT) (1EA)
No. Name
3) Parts Assembly Diagram : SUB-ASM-REAR
3-1
3-2
3-3
3-4
REAR_COVER (1EA)
RUBBER_PAD (2EA)
SUB_BOARD_CHARGE (1EA)
AC_INLET (1EA)
No. Name
26
DVT-2600
