THE REPAIR
No. Process Notice
Assemble 1
1
2
3
4

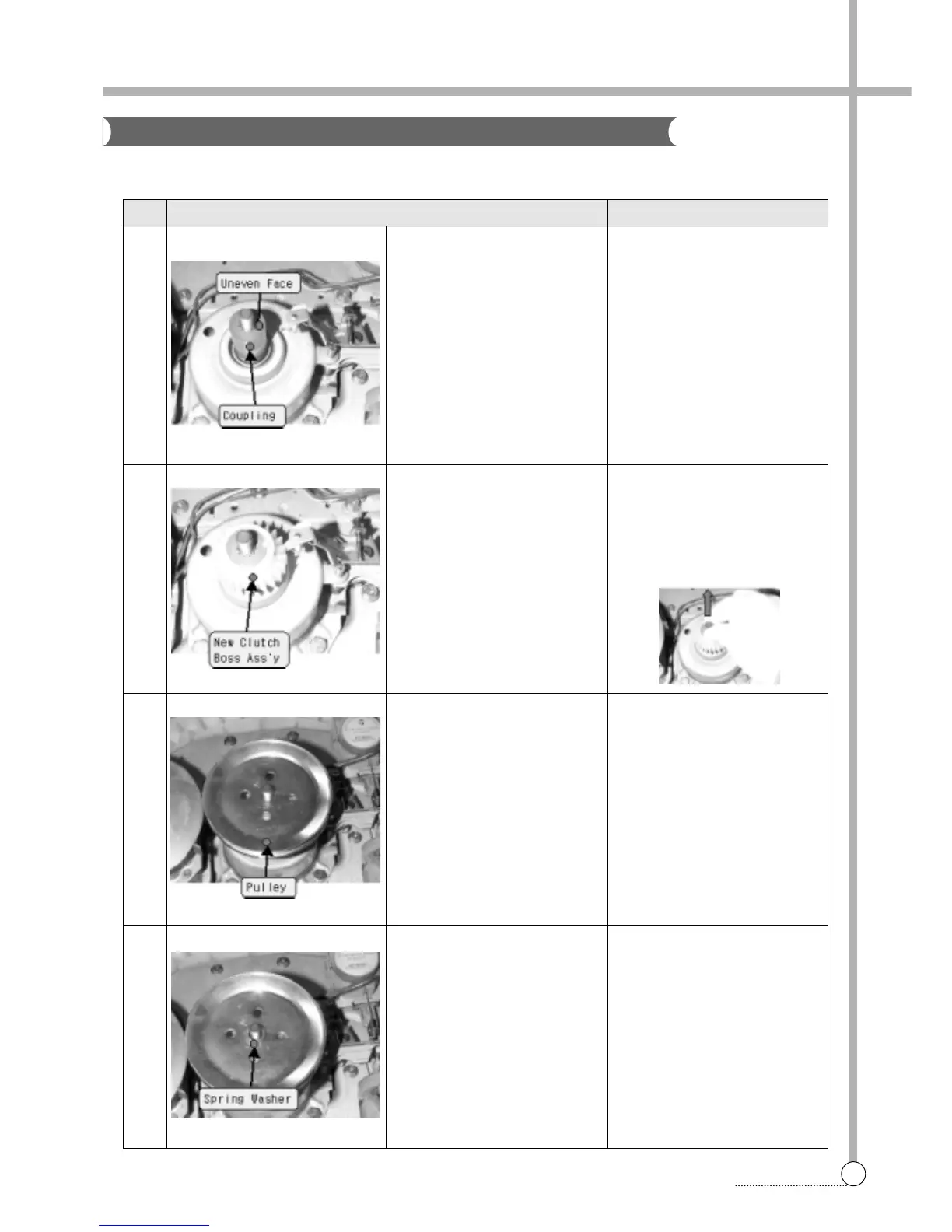

Assemble the coupling
Assemble the new clutch boss
ass’y
Assemble the pulley
Assemble the spring washer
Check the uneven face of cou-
pling is assembled upward
- Push in the clutch boss ass’y
with rotating on the clockwise
direction.
-
After assembling, rotate on the
clockwise more 2~3 teeth and
pull out the pulley shaft upward
If there was plain washer, you
have to assemble plain washer
the first and then assemble
spring washer
The Process Of Assemble
