14
DIRECTIONS

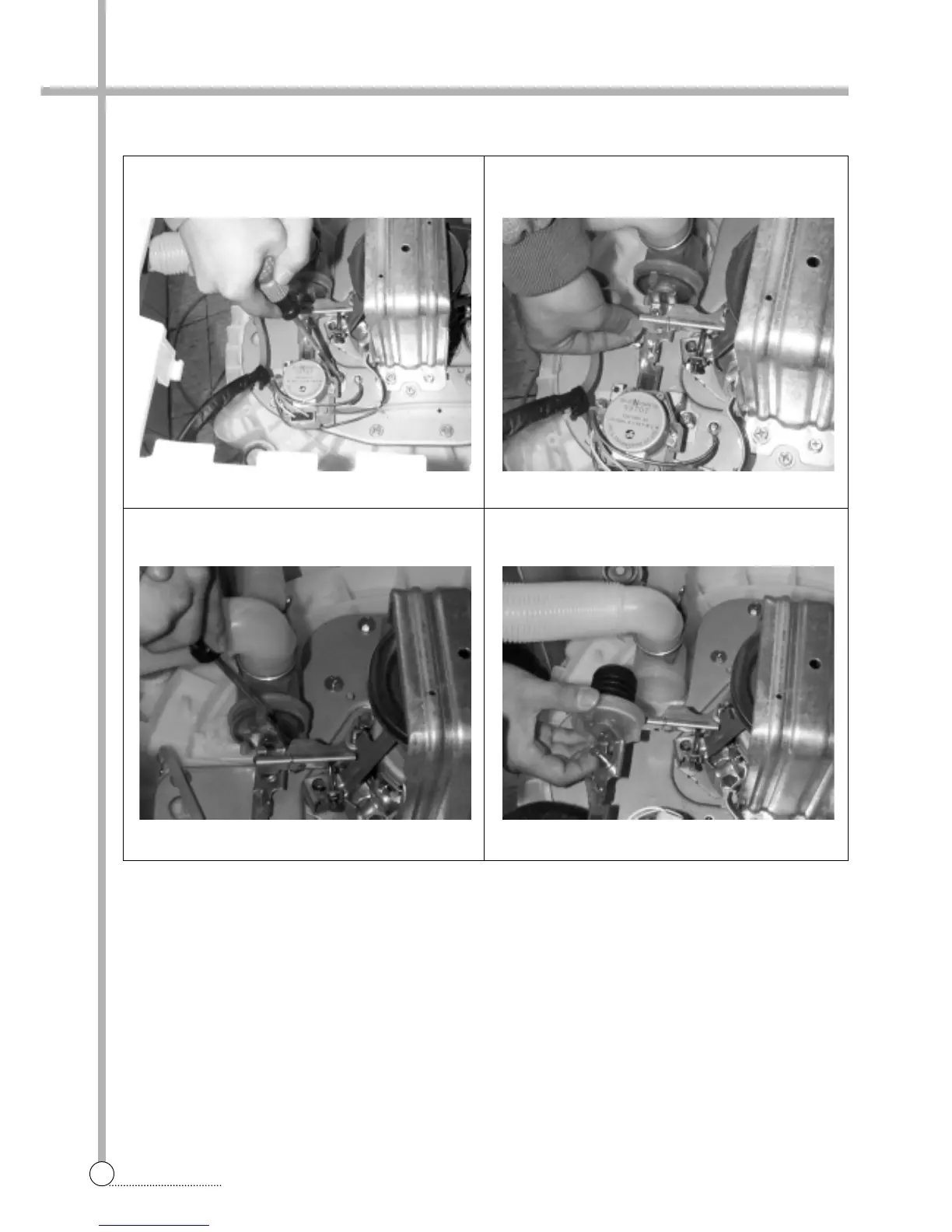

1 Lay the front of the washer on the floor.
2 Loosen two special screw of motor synchronous.
5 Turn the valve by using screw driver as shown in picture.
3 Take out the wire of motor synchronous from the braket.
4 Separate the motor synchronous from the base.
6 Remove the valve lid from the valve drain assy.
MOTOR SYNCHRONOUS AND VALVE REPLACEMENT (NON PUMP MODEL)
To Next Page
