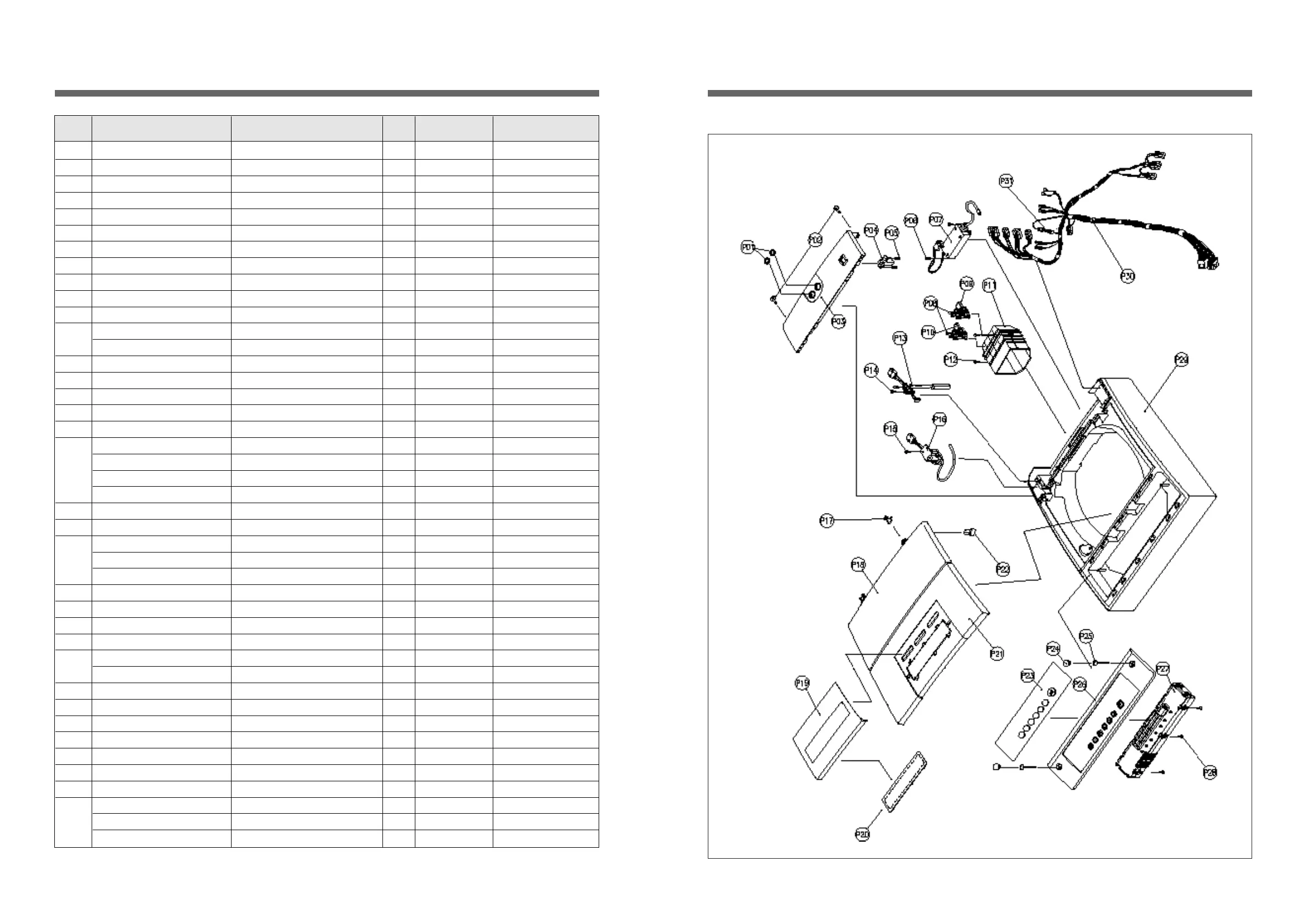

PARTS DIAGRAM (PUMP MODEL)
NO. PART NAME DESCRIPTIONS Q’TY PART CODE REMARK
T10 TUB I PP(JI-360) 1 4505E05010
T11 FLANGE TUB ADC-10 1 4505E05021
T12 SPECIAL SCREW 5 x 24 6 4505E05040
T13 SCREW TAPPING T2S TRS 4x16 MFZN 4 7122401611
T14 NOZZLE AS BUBBLING 1 3618101400
T15 COVER TUB * O PP 1 3611407500
T16 TUB * O PP (JI-370) 1 3618802410
T17 PIN SUSPENSION HSW3 4 4509M25020
T18 SUPPORTER SUSPEN. PP 4 4509K25040
T19 ROD SUSPENSION SWRCH L=525mm 4 3618501000
T20 CAP NYLON 4 3610902300
T21
SPRING SUSPEN. HSW3 YW, L=100 2 3615104400 FRONT
SPRING SUSPEN. HSW3 WH, L=90 2 3615105800 BACK
T22 CAP SUSPENSION NYLON 6 4 4507B76000
T23 SCREW BOLT BASE 6.5 x 23 15 4505E83100
T24 CLAMP SWC 1 4500D08180
T25 HOSE ID=0.8, OD=12.0 1 4500D08170
T26 SPECIAL WASHER NYLON 66 2 4505E34030
MOTOR CONDENSER AC 220V/50Hz 1 3964311030 PN
T27
MOTOR CONDENSER AC 240V/50Hz 1 3964610430 PM
MOTOR CONDENSER AC 220V/60Hz 1 3964320510 PL
MOTOR CONDENSER AC 110V/60Hz 1 3964220710 PT
T28 SPECIAL WASHER NYLON 66 2 4505E34040
T29 BOLT HEX 6B-1 8x25 MFZN 2 7650802511
PULLEY MOTOR ADC-12¨∂10/60.5 1 3618401310 PN
T30 PULLEY MOTOR ADC-12¨ø10/53.0 1 4507D20011 PM
PULLEY MOTOR ADC-12¨ø10/48.5 1 3618401100 PL,PT
T31 CLAMP HSW3 1 3611201000
T32 HOSE DRAIN I LDPE+EVA, L=184mm 1 3613212100
T33 BOLT HEX 6B-1-6x20 MFZN 1 7342602011
T34 NUT HEX 6N-3-6 MFZN 1 7393600011
T35
BELT V M20 1 4507D34020 PN,PM
BELT V M19.5 1 4507B34020 PL,PT
T36 SPECIAL BOLT 6B-1 6*16 SW MFZN 4 7341601611
T37 PROTECT GEAR SBHG 1.6T 1 3618301300
T38 BOLT HEX 6B-1 8x16 SW MFZN 4 7640801611
T39 GEAR MECHANISM GM-4200, NTN 1 3617303800
T40 GEAR SPACER SUS 304 1 4505E34091
T41 BASE SECEN T1.6 1 3610302900
T42 SPECIAL BOLT BASE 6.5 x 23 3 4505E83100
MOTOR SYNCHRONOUS AC 220-240V/50Hz 1 3966010140 PN,PM
T43 MOTOR SYNCHRONOUS AC 220V/60Hz 1 3966320230 PL
MOTOR SYNCHRONOUS AC 110V/60Hz 1 450ED45040 PT
