5. DIRECTION FOR INSTALLATION AND USE
HOW TO INSTALL THE WASHING MACHINE
SELECTION OF THE INSTALLING PLACE
Install the washer on a horizontal solid floor.
If the washer is installed on an unsuitable floor,
it could make considerable noise and vibration.
• The proper installation of the washing machine can
increase the wash effectiveness and the life of it.
HOW TO INSTALL ON AN INCLINED PLACE
Never install in these places
• The place where it would be exposed to direct
sunlight.
• The place nearby a heater or heat appliance.
• The place where it would be supposed to be frozen
in winter.
• The kitchen with coal gas and a damp place like a
bathroom.
NOTES:
• The opening must not be obstructed by carpeting when the washing machine is in-stalled on a carpeted floor.
• If the washer is installed on an inclined floor, it could make considerable noise and vibration, and could cause a
malfunction.
• Use the height adjust rubber to adjust the washing machine so that it sits property.
1Height Setting
• After controlling the height by turning the adjustable
legs, let the washer put down to the ground.
2
Check the Horizontal Status
• Check the position of tub above the center of the washer.
PRINCIPLE OF INTAKE & OUTLET OF THE AIR
INTAKE : ARMATURE moves up, and BELLOWS inhales the air. At the same time, protector B is open and A is close.
OUTLET:ARMATURE moves down, and BELLOWS exhausts the air. At the same time, protector B is close and A is open.

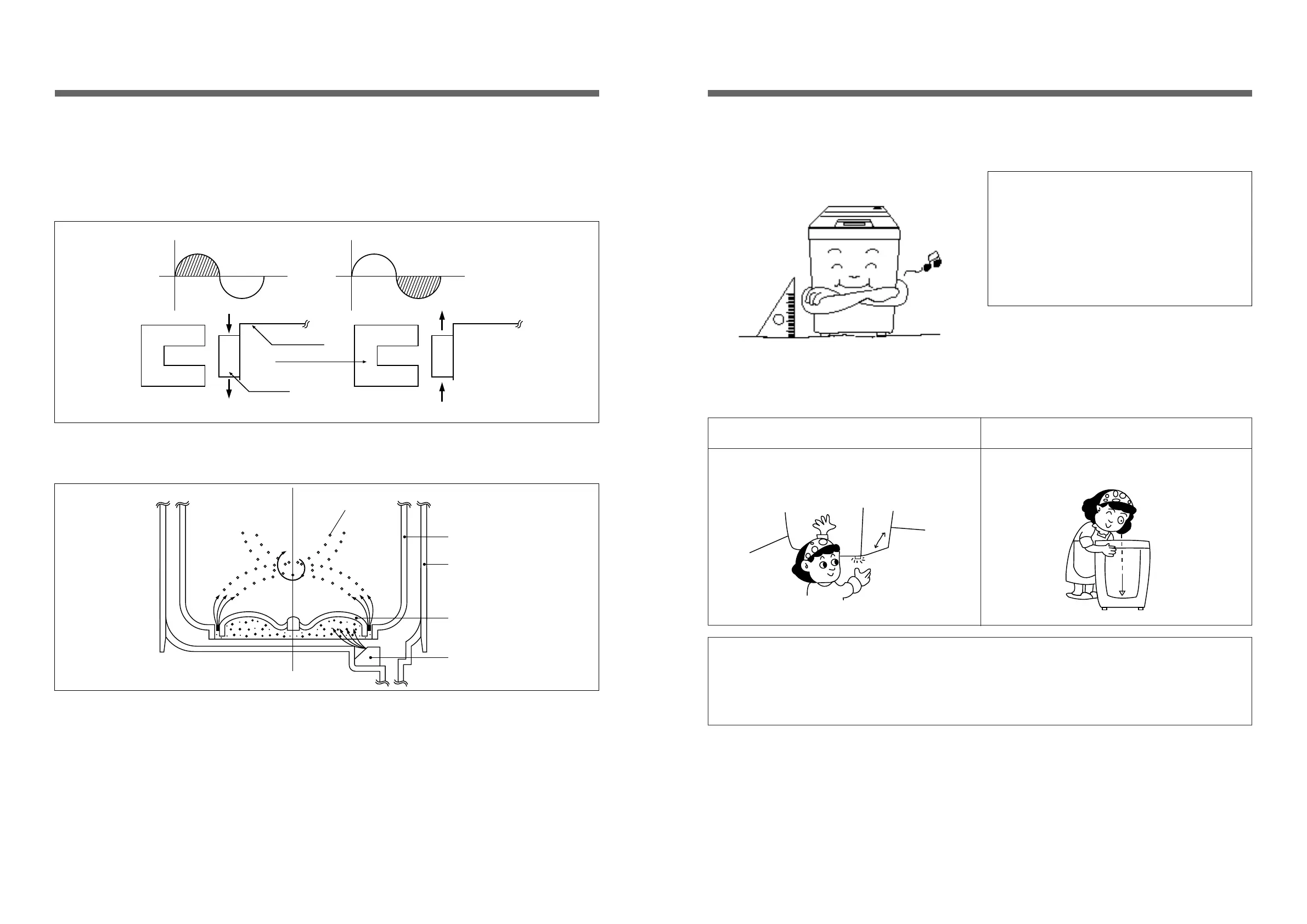

FUNCTIONAL PRINCIPLE OF TRANS & MAGNET
• The phase of A.C electric power changes to 60 cycle/second.
• The magnetic pole of trans core is changed by the change of the phase of A.C electric power.
• The core repeats push and pull (3600 times/min.) of the armature magnet.
FUNCTIONAL PRINCIPLE OF BUBBLE WASHING MACHINE
CROSS SECTION
FUNCTIONAL PRINCIPLE
Bubble generator supplies the air from the bottom of outer tub to the inner space of pulsator, the air is dispersed by the
rotation of pulsator. Air-bubble is created by the centrifugal force, and rises up.
9
