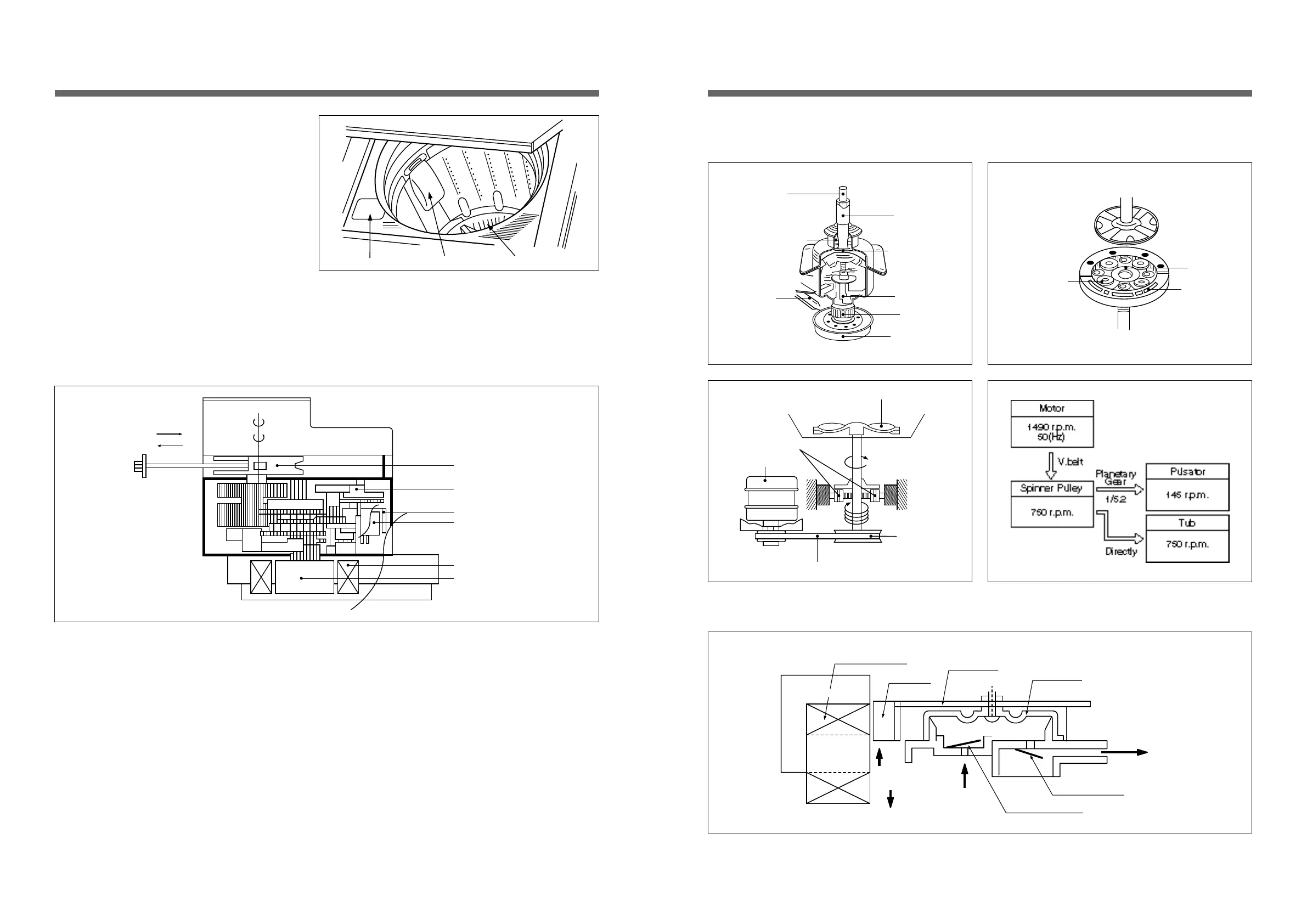

GEAR MECHANISM ASS'Y
The proper water currents is made by the rotation of pulsator at a low speed (about 145 r.p.m) to prevent the damage to the
small sized clothes.
PRINCIPLE OF BUBBLE GENERATOR
STRUCTURE
8
LINT FILTER
Much lint may be obtained according to the kind of
clothes to be washed and some of the lint may also
sticks to the clothes.
To minimize this possibility a lint filter is provided on the
upper part of the tub to filter the wash water as it is
discharged from the water channel. It is good to use the
lint filter during washing.
HOW TO CLEAN THE LINT FILTER
1) Pull the filter frame upward.
2) Turn the lint filter inside out, and wash the lint off with water.
3) Return the filter as it was, and fix the filter frame to the slot.
DRAIN MOTOR
STRUCTURE
FUNCTIONAL PRINCIPLE
1) When the DRAIN MOTOR connected to the power source (AC 220V), the DRAIN MOTOR rotates with 900 r.p.m and
revolves the pulley by gear assembly for reducing.
2) When the pulley is rotated, the pulley winds the wire to open the drain valve.
3) Therefore, rotation of pulley is changed to the linear moving of wire.
4) The wire pulls the brake lever of Gear Mechanism Ass'y within 5 seconds.
5) After the wire pulled, gear assembly is separated from motor and condition of pulling is held by operation of the lever.
6) When the power is turned off, the drain valve is closed because the wire returns to original position.
7
