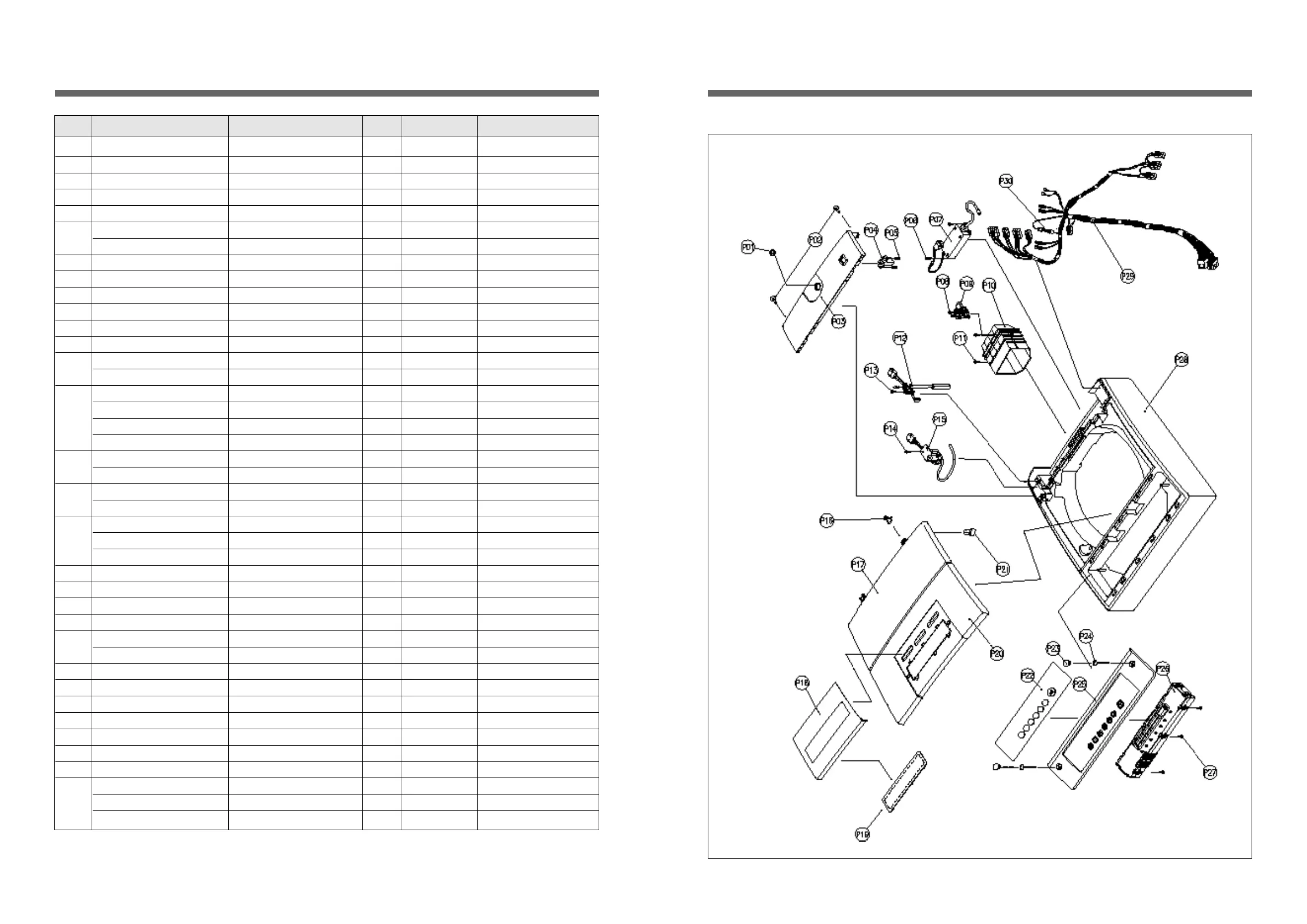

PARTS DIAGRAM (NON PUMP MODEL)
37
NO. PART NAME DESCRIPTIONS Q’TY PART CODE REMARK
T16 TUB * O PP (JI-370) 1 3618802410
T17 PIN SUSPENSION HSW3 4 4509M25020
T18 SUPPORTER SUSPEN. PP 4 4509K25040
T19 ROD SUSPENSION SWRCH L=525mm 4 3618501000
T20 CAP NYLON 4 3610902300
T21
SPRING SUSPEN. HSW3 YW, L=100 2 3615104400 FRONT
SPRING SUSPEN. HSW3 WH, L=90 2 3615105800 BACK
T22 CAP SUSPENSION NYLON 6 4 4507B76000
T23 HOSE OVERFLOW PELD 1 3613208900
T24 VALVE DRAIN AS DWF-5591D 1 3615404000
T25 SCREW BOLT BASE 6.5X23 15 4505E83100
T26 CLAMP SWC 1 4500D08180
T27 HOSE ID=8.0, OD=12.0 1 4500D08170
T28
SPECIAL WASHER NYLON 66 2 4505E34030 CNE,CLE,CTE
CUSHION UPPER POM 2 3611502000 CME
MOTOR CONDENSER AC 220V/50Hz 1 3964610430 CNE
T29
MOTOR CONDENSER AC 230-240V/50Hz 1 3964310140 CME
MOTOR CONDENSER AC 220V/60Hz 1 3964320710 CLE
MOTOR CONDENSER AC 110V/60Hz 1 3964220710 CTE
T30
SPECIAL WASHER NYLON 66 2 4505E34040 CNE,CLE,CTE
CUSHION DOWN POM,H=18mm 2 3611502800 CME
T31
BOLT HEX 6B-1 8x25 MFZN 2 7650802511 CNE,CLE,CTE
BOLT HEX 8x42 MFZN 4 7650804211 CME
PULLEY MOTOR ADC-12¨∂10/60.5 1 3618401310 CNE
T32 PULLEY MOTOR ADC-12¨∂10/53.0 1 4507D20011 CME
PULLEY MOTOR ADC-12¨∂10/48.5 1 3618401100 CLE,CTE
T33 CLAMP HSW3 1 3611201000
T32 HOSE DRAIN I LDPE+EVA, L=184mm 1 3613212100
T33 BOLT HEX 6B-1-6x20 MFZN 1 7342602011
T34 NUT HEX 6N-3-6 MFZN 1 7393600011
T35
BELT V M20 1 4507D34020 CNE, CME
BELT V M19.5 1 4507B34020 CLE, CTE
T36 SPECIAL BOLT 6B-1 6*16 SW MFZN 4 7341601611
T37 PROTECT GEAR SBHG 1.6T 1 3618301300
T38 BOLT HEX 6B-1 8x16 SW MFZN 4 7640801611
T39 GEAR MECHANISM GM-4200, NTN 1 3617303800
T40 GEAR SPACER SUS 304 1 4505E34091
T41 BASE SECEN T1.6 1 3610302900
T42 SPECIAL BOLT BASE 6.5 x 23 3 4505E83100
MOTOR SYNCHRONOUS AC 220-240V/50Hz 1 3966010120 CNE, CME
T43 MOTOR SYNCHRONOUS AC 220V/60Hz 1 3966320210 CLE
MOTOR SYNCHRONOUS AC 110V/60Hz 1 450ED45020 CTE
