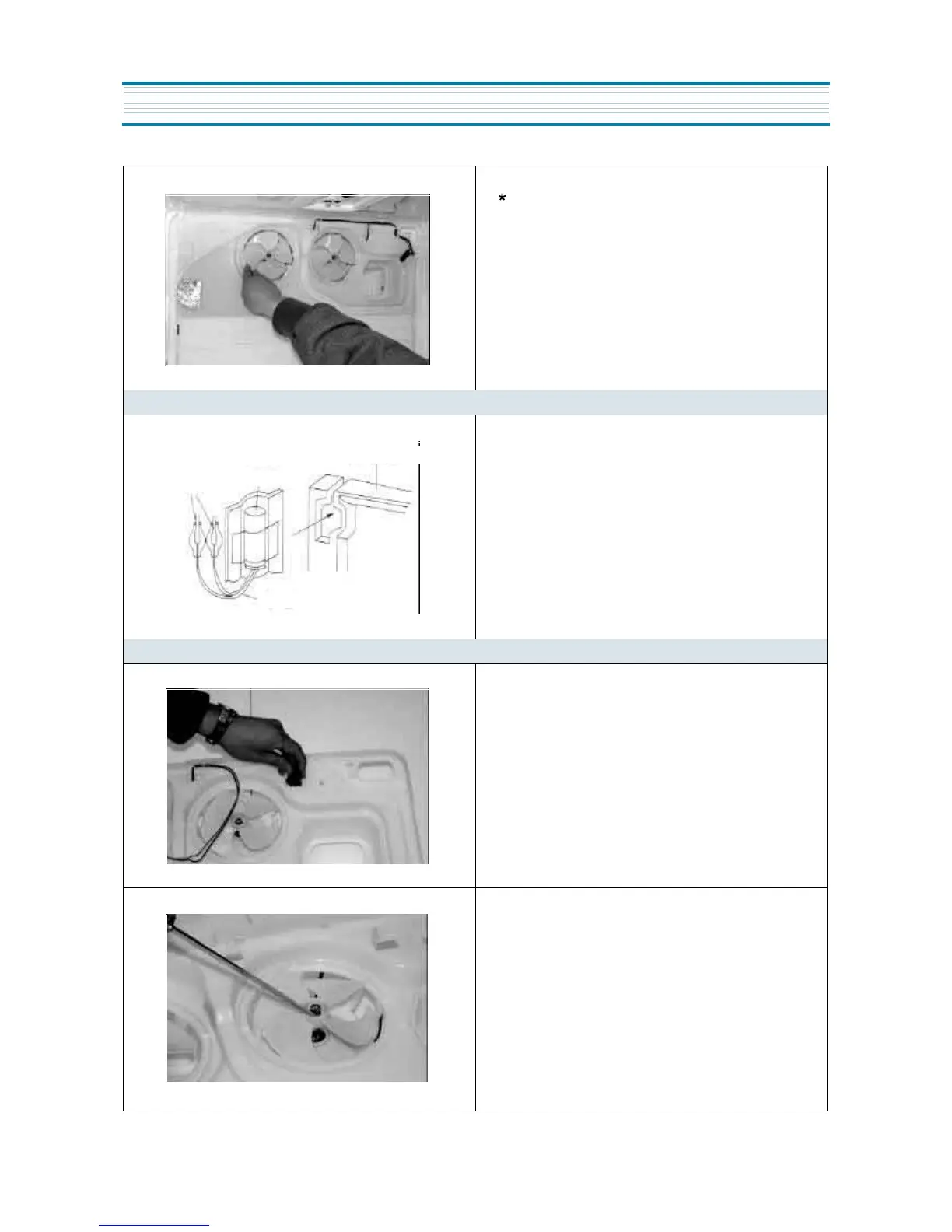

2. Loosen wire tie on the left and pull louver forward slowly.
Be careful not to damage sealing on the louver for they
affect cold air circulation.
5. F Sensor
1. Cut down sensor wires and insert 2 pieces of heat shrinkage
tube to each wire.
2. Connect new sensor wires and old ones, and put soldering
on the connecting part.
3. Move shrinkage tubes to hide the connecting part and give
mild heat around them to shrink.
6. Fan Motor
1. Remove louver A and louver B.
2. Loosen fan motor wires and pull out connectors.
(F connector and R connector)
3. Remove fan fixing ring.
DISASSEMBLY AND ASSEMBLY
F LOUVER INSULATOR
SOLDERING
SENSOR
WIRE
