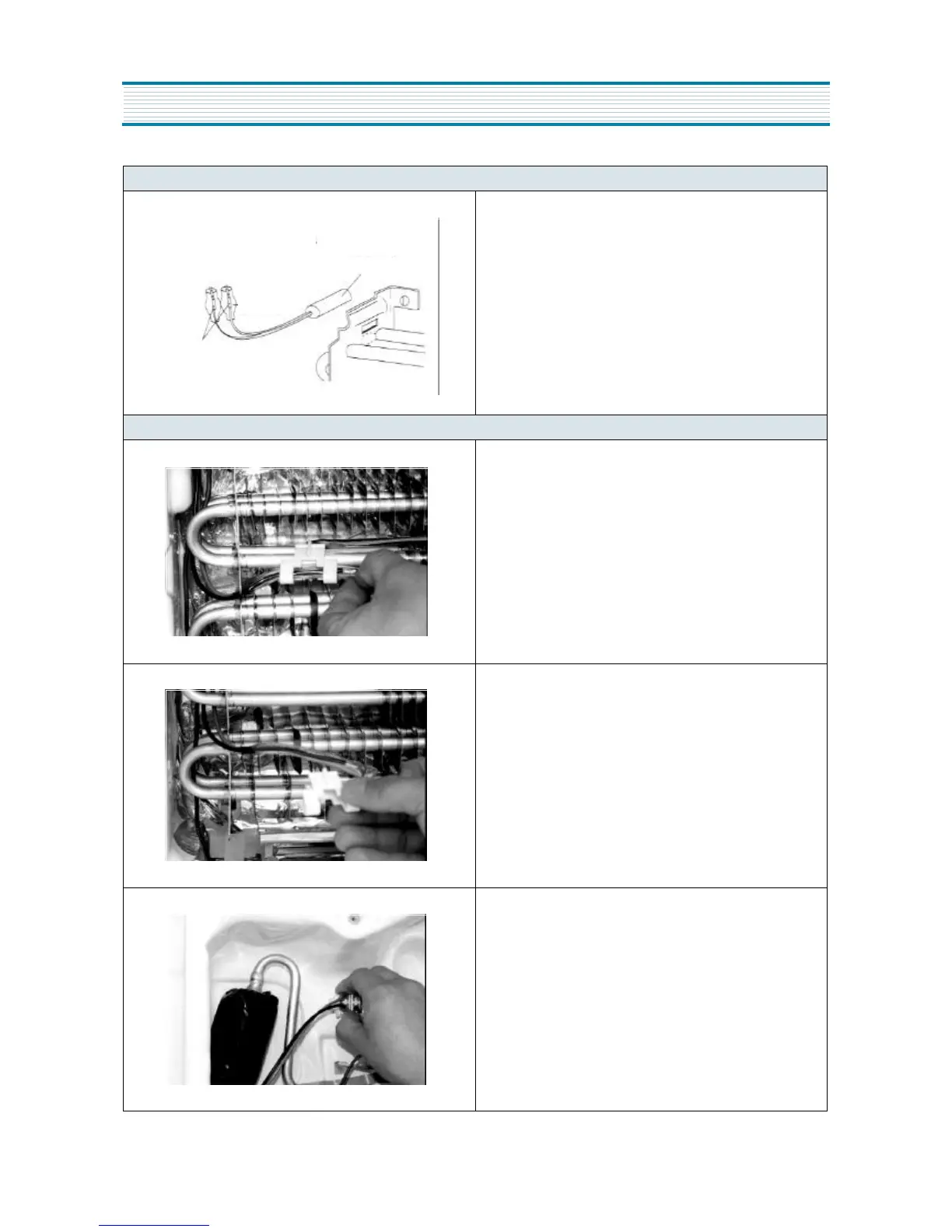

7-2. D Sensor Exchange
4. Cut down sensor wires and insert 2 pieces of heat shrinkage
tube to each wire.
5. Connect new sensor wires and old ones, and put soldering
on the connecting part.
1. Move shrinkage tubes to hide the connecting part and give
mild heat around them to shrink.
8. Exchange of Temperature Fuse
1. Remove fuse fixing clip down left of evaporator
2. Separate temperature fuse out of fixing clip.
3. Pull out temperature fuse connector of 2 wires.
DISASSEMBLY AND ASSEMBLY
SHRINKAGE
TUBE
SOLDERING
D-SENSOR
EVA
To Next Page
