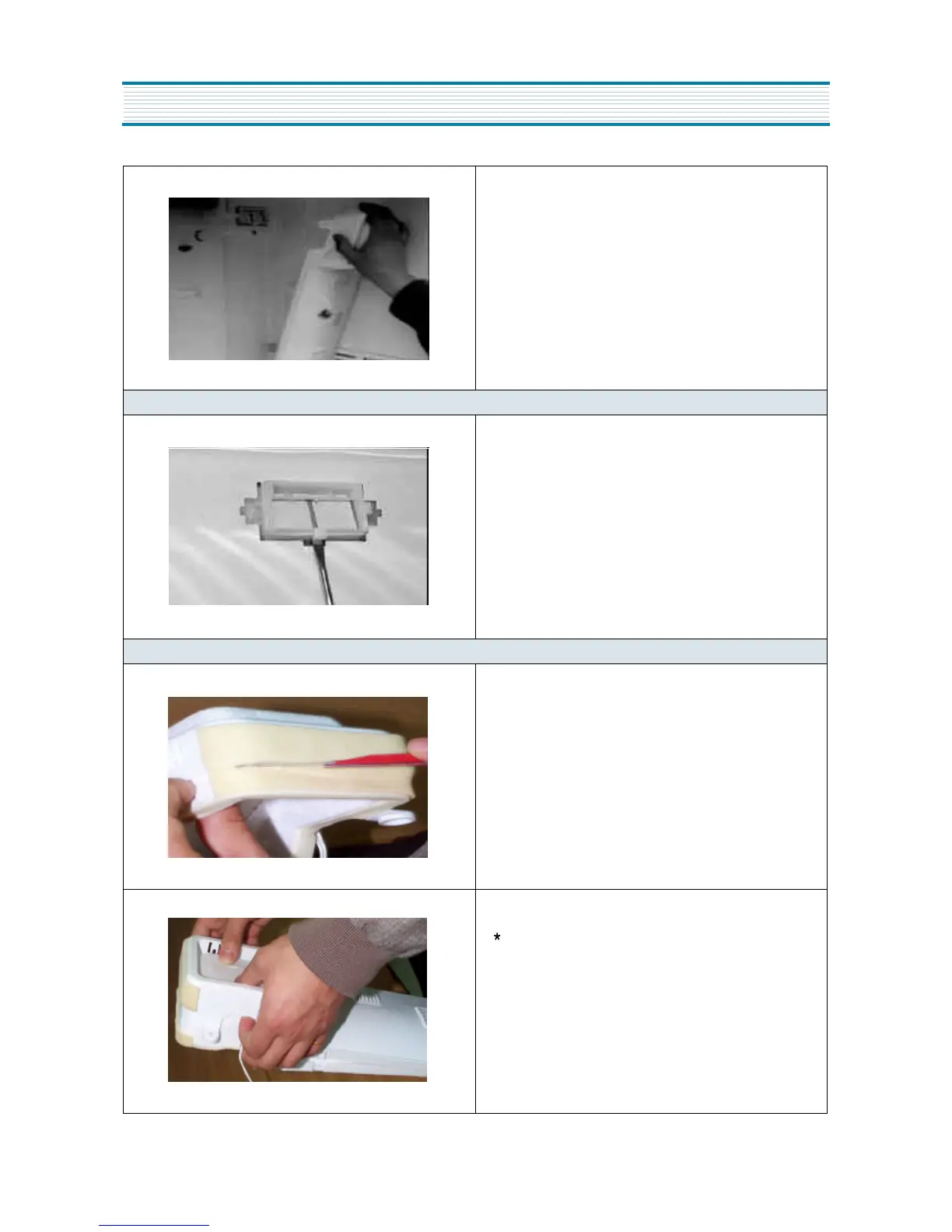

1. Pull louver forward slowly.
2. Be careful not to damage sealing sponge stripes.
16. Check Valve
1. Insert screw driver into the gap to pull out.
2. Pull it out.
17. R Sensor
1. Cut out only sealing sponge on the insulator in straight
way along the insulator.
2. Separate the Insulator form Louver by pressing the
Insulator smoothly.
Louver and Insulator are bonded by double-sided tape.
