31
CONTENTS REMARKS

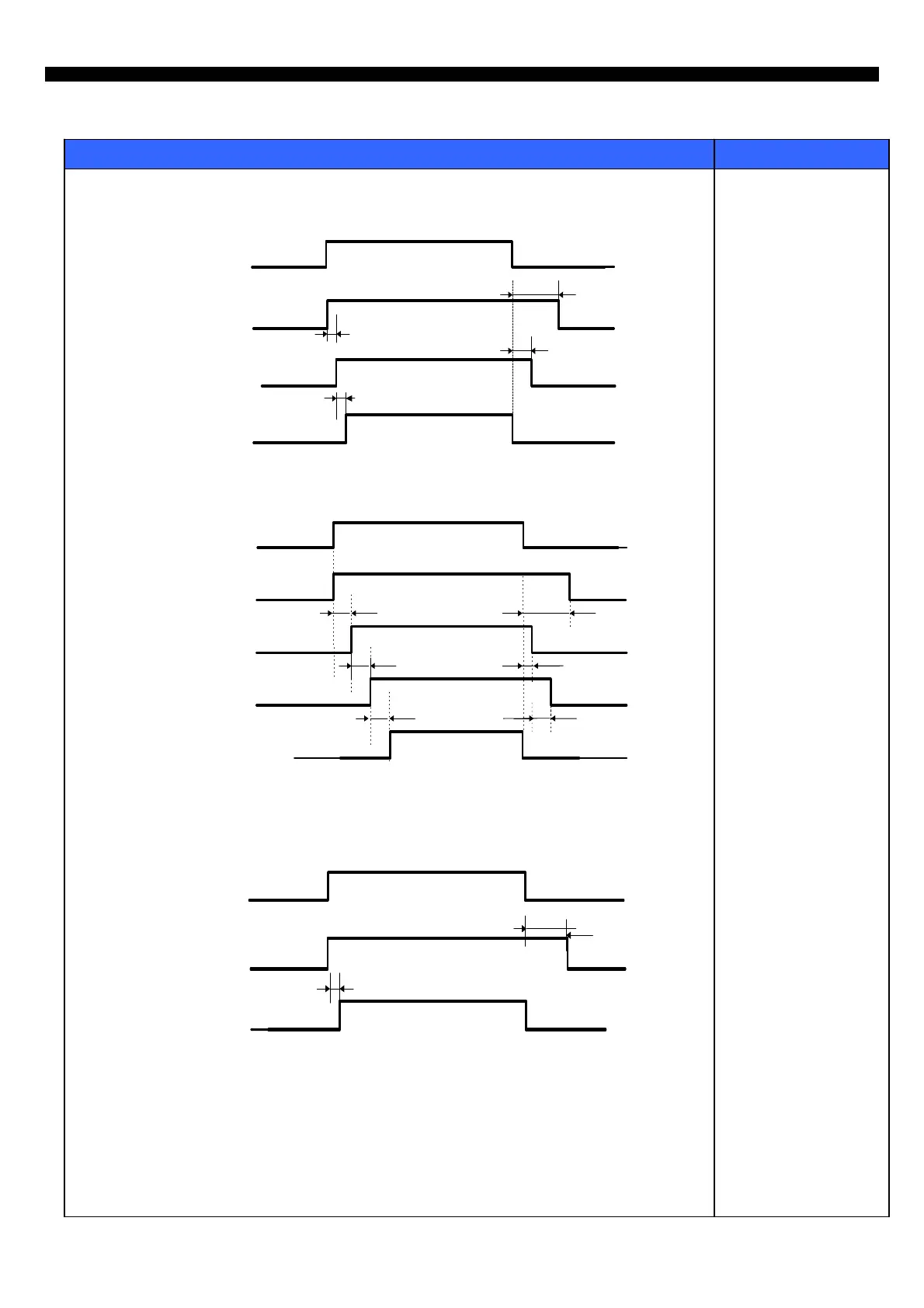

4) Control Flow & Timing Chart
① Crushed Ice
② Cubed Ice
③ Water
Delay time : A = 500ms, B = 500ms, C = 2.0s, D = 5.0s
D.P SW
Gear Motor
D.P Lamp
D.P S/V
(Flap)
D
A
A
C
D.P SW
Cube S/V
D.P S/V
(Flap)
Gear Motor
D.P Lamp
A
C
A
A
B
D
D.P Lamp
D.P SW
Water S/V
D
A
