74
NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE
16
38
▷ Pull forward ice maker. ▷Unscrew (3 points) Plate Gear Fixture.
▷Unscrew Fixture of Frame Ice Maker.
▷ Check if ice dropping motor is normal (OK).

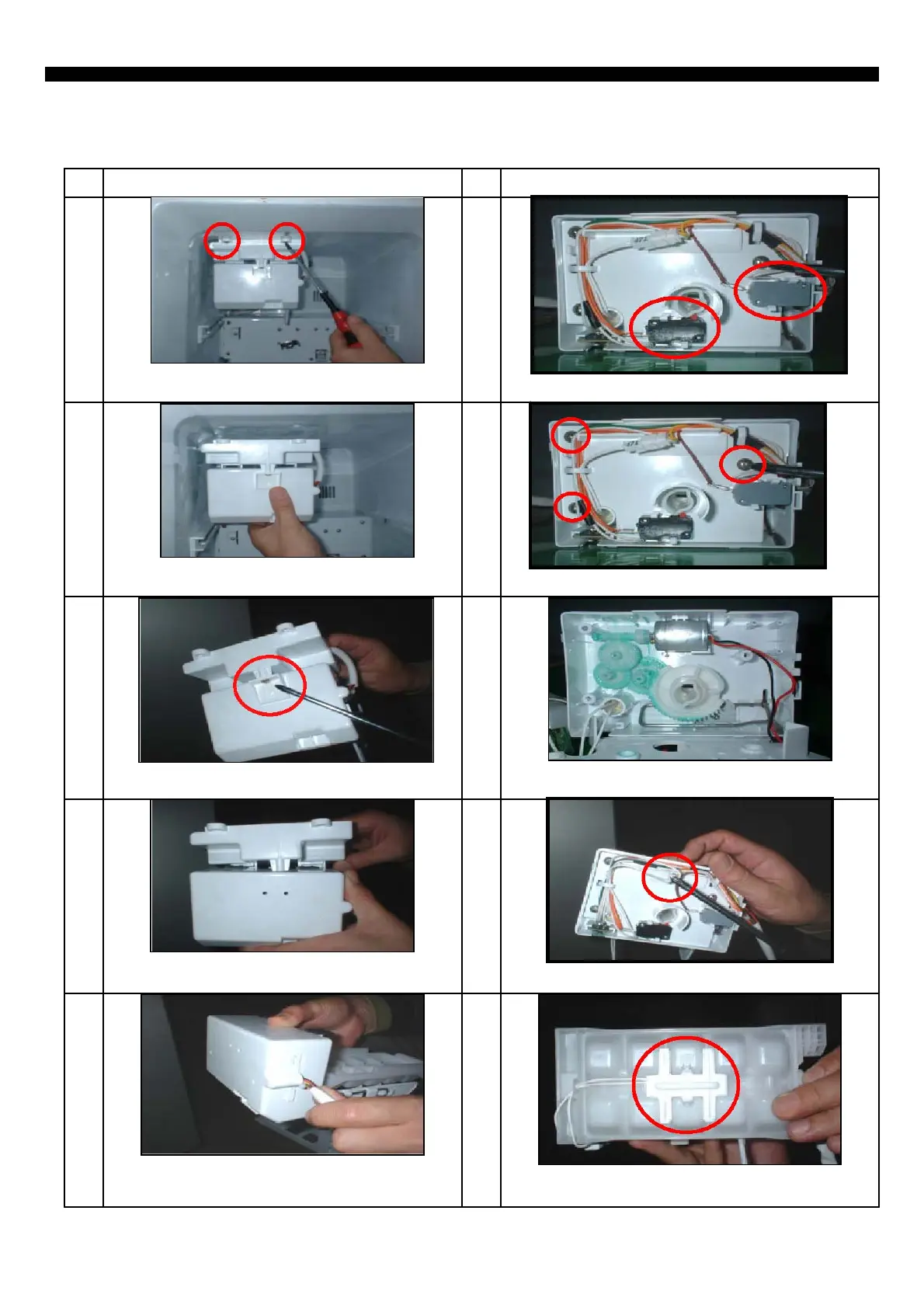

10-5. Ice Maker
1) Disassembling Procedure
27
▷ Remove 2 screws on top front of ice maker.
▷Remove full ice sensing switch and level switch.
49
▷Separate Ice Maker Assembly from
Frame Ice Maker.
▷Remove 2 pin housing from Plate Gear Fixture.
510
▷ Separate Cover I/M (A) from Cover I/M (B)
with a (-) screw driver.
▷ Remove I-sensor (ice sensor) from
Case Icing As.
* Follow the reverse order when assembling.
To Next Page
