▷ Separate 2 housings of 10P / 7P
from Front PCB.
(Do not hold only wires to pull out.)
▷Unscrew (3 points) to remove Sol Valve.
▷Unscrew (2 points) to remove Box
Dispenser Shut.
▷Unscrew (1 point) to remove Cover Ice Flap.
2) How to Check Micro Switch

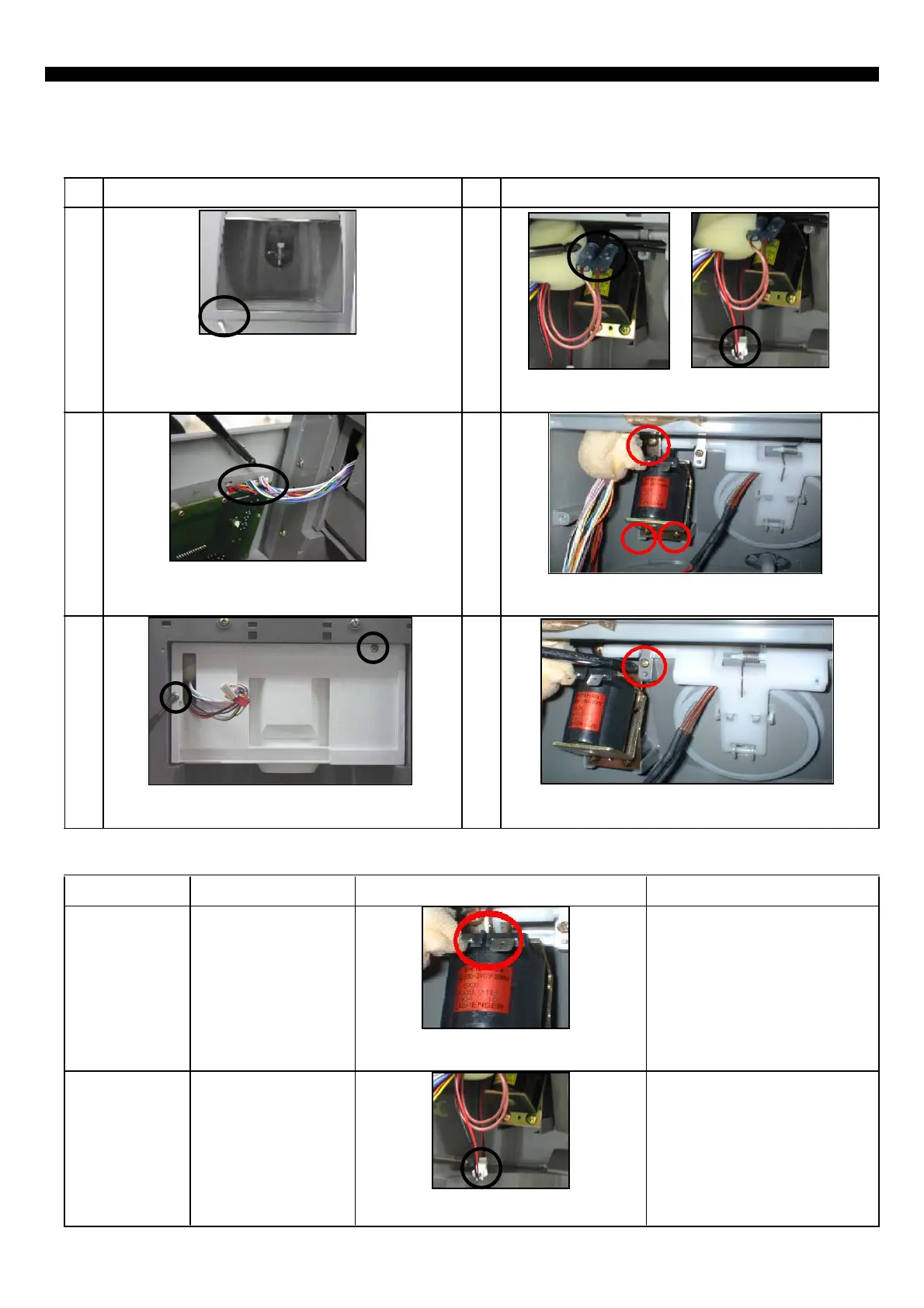

10-4. Dispenser Solenoid Valve
1) Disassembling Procedure
SPEC. CRITERION
▷ Good : 215Ω(±10%)
(193 ~ 236Ω)
▷DEFECTIVE : 0
Change Sol Valve.
PARTS HOW TO CHECK
▷GOOD : 96Ω(±8%)
(88 ~ 104Ω)
▷DEFECTIVE ;
Change Flap Heater AS.
▷SPEC. NAME
:SOL2003-01B
▷VOLTAGE
:220/240V,50Hz
▷VOLTAGE
:DC 12V,1.5W
▷Check resistance value of
both terminals with a tester.
Dispenser
Sol Valve
Flap Heater
Assembly
▷Check resistance value of
both terminals with a tester.
25
▷ Insert (-) screw driver into bottom left groove
of Cover Dispenser Box. Pull forward with a
snap.(Be careful not to damage cover and
door surface.)
▷Separate 2 terminals from Sol Valve and
2P Housings from Cover Ice Flap.
