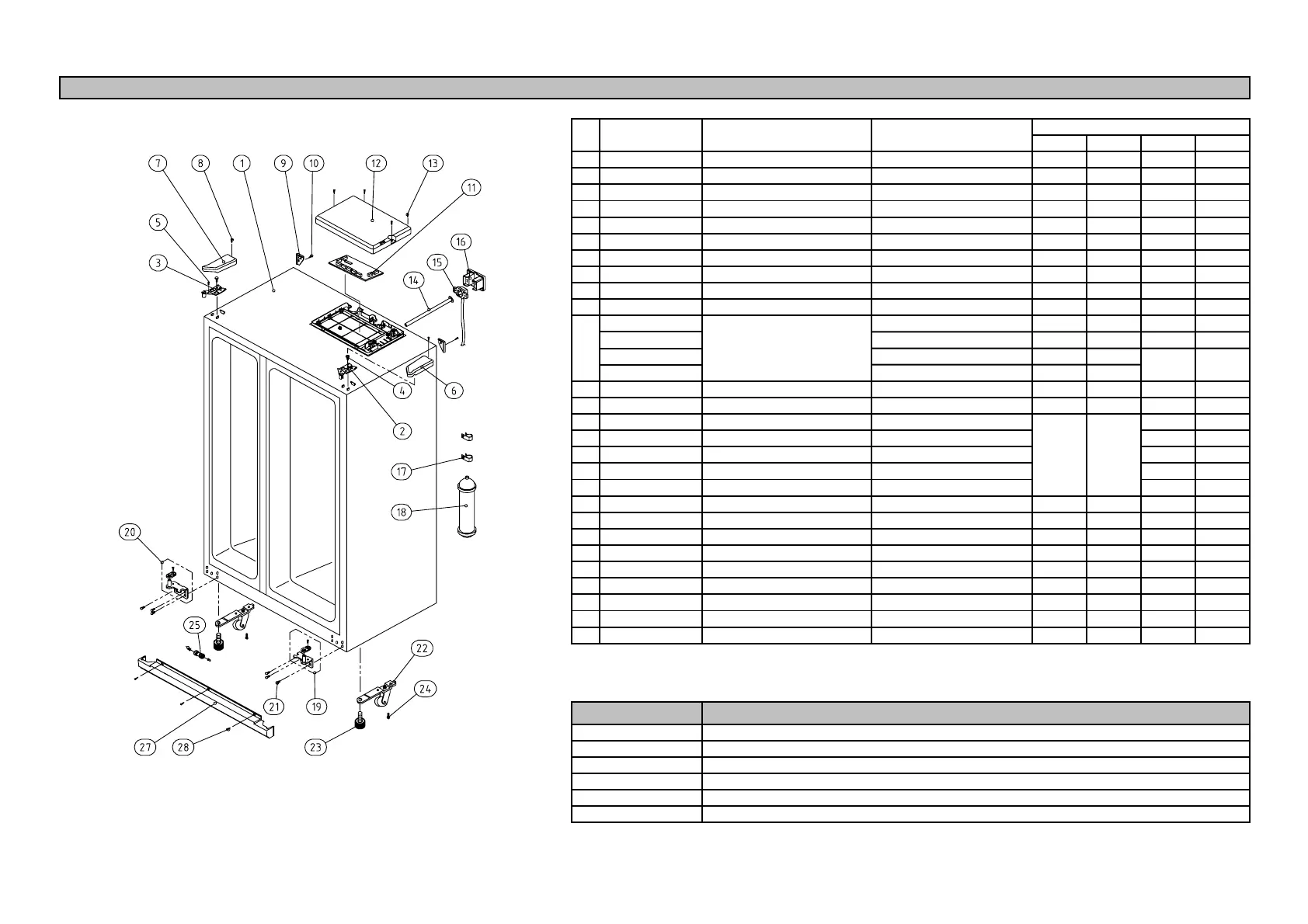

DAEWOO ELECTRONICS FRS-U20DC - 11 Exploded View & Parts List

20IC 20BC 20DC 20FC
1 ASSY CAB URT
1111
2 3012924400 HINGE *T *R AS PO T3.0+PAINT
1111
3 3012924300 HINGE *T *L AS PO T3.0+PAINT
1111
4 3016042300 SPECIAL *T HI BOLT 6X13 SWCH18A
2222
5 7051401065 SCREW MACHINE PAN 4X10 SW BSNI
1111
6 3011446200 COVER *T HI *R PP
1111
7 3011446100 COVER *T HI *L PP
1111
8 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN
2222
9 3010968400 CAP CAB COVER PP
2222
10 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN
2222
30143D6061 FRU-571I (R-134a)
1xxx
30143E1020 FRU-579B (R-134a)
x1xx
30143D5072 FRU-541F (R-134a)
xx
30143D5062 FRU-541F (R-600a)
xx
12 3011446000 COVER MAIN PCB BOX PP(V-235)
1111
13 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN
4444
14 3013224800 HOSE ICE MAKER TUBE AS FRU-541D
11
15 3012530200 GUIDE CAB W/TUBE A AS FRU-541D
11
16 3011444100 COVER GUIDE CAB W/T A HIPS
11
17 3011202000 CLAMP WATER TUBE A PA-66, 5N
22
18 3019974800 S/PAER FILTER WATER AS FR-S660CW
11
19 3012924000 HINGE *U *R AS P/O T5.0 + PAINT
1111
20 3012923900 HINGE *U *L AS P/O T5.0 + PAINT
1111
21 3016001240 SPECIAL BOLT *T 6X22 SWCH22A(YL)
6666
22 3010657200 BRACKET ADJ FOOT SPCC T3.0
2222
23 3012105100 FOOT ADJ AS PP
2222
24 3016001240 SPECIAL BOLT *T 6X22 SWCH22A(YL)
2222
25 3013064200 HOLDER TUBE A ACETAL
1111
27 3011447200 COVER CAB BRKT PP
1111
28 7142401511 SCREW TAPPING T2 TRS 4X16 MFZN
3333
- Some parts can be chaged for improving their perfomance without notice.
- Above parts number doesn't describe your own colour & printing. Please remind!
PART NAME SPEC.
Date
A
mendment Note
76
Cabine
t
Q'ty
x
11 PCB MAIN AS
11
x
NO PART-CODE
