27

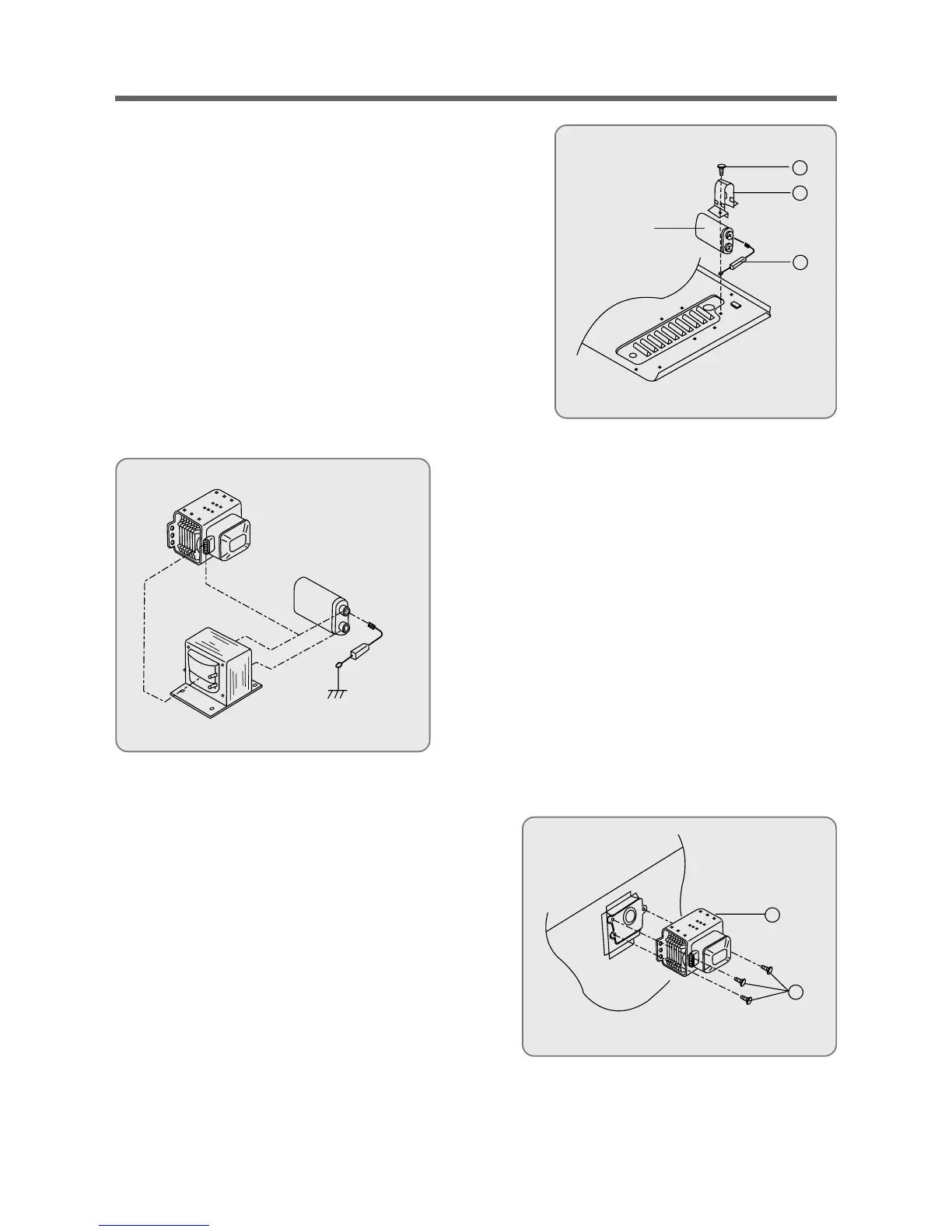

6. To remove high voltage capacitor.
(1) Remove a screw ¤ which secure the grounding ring termi-
nal of the H.V. diode ¤Ł and the capacitor holder ¤Ø.
(2) Remove the capacitor holder ¤Ø with the H.V. capacitor ¤Œ.
(3) Reverse the above steps for reassembly.
High voltage circuit wiring
7. To remove magnetron.
(1) Remove three screws ¤ which secure the magnetron
¤Ł.
(2) Remove the magnetron ¤Ł.
(3) Reverse the above steps for reassembly.
1
3
2
2
1
MAGNETRON
H.V. CAPACITOR
H.V.
DIODE
H.V. TRANSFORMER
¤Œ
