Power Train Testing And Adjusting
Pinion Installation

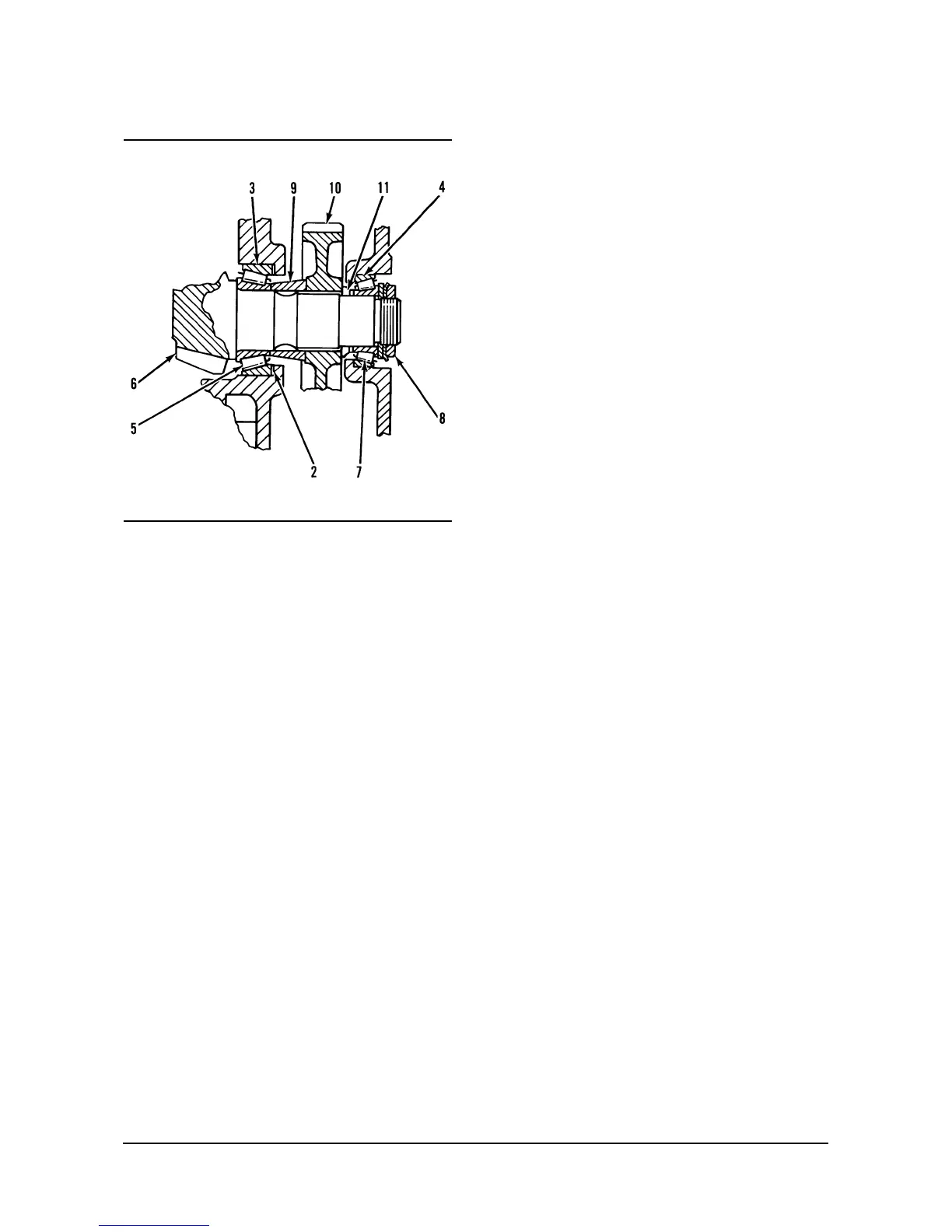

Pinion Configuration
(2) Shim pack. (3) Bearing cup. (4) Bearing cup.
(5) Bearing cone. (6) Pinion gear. (7) Bearing cone.
(8) Locknut. (9) Ring. (10) Gear. (11) Ring.
NOTE: The adjustment procedures that follow only
cover the shim set configuration. Look for additional
service publications to provide more detailed
information on the change.
