Power Train Specifications33
Drive Axle Mounting Group

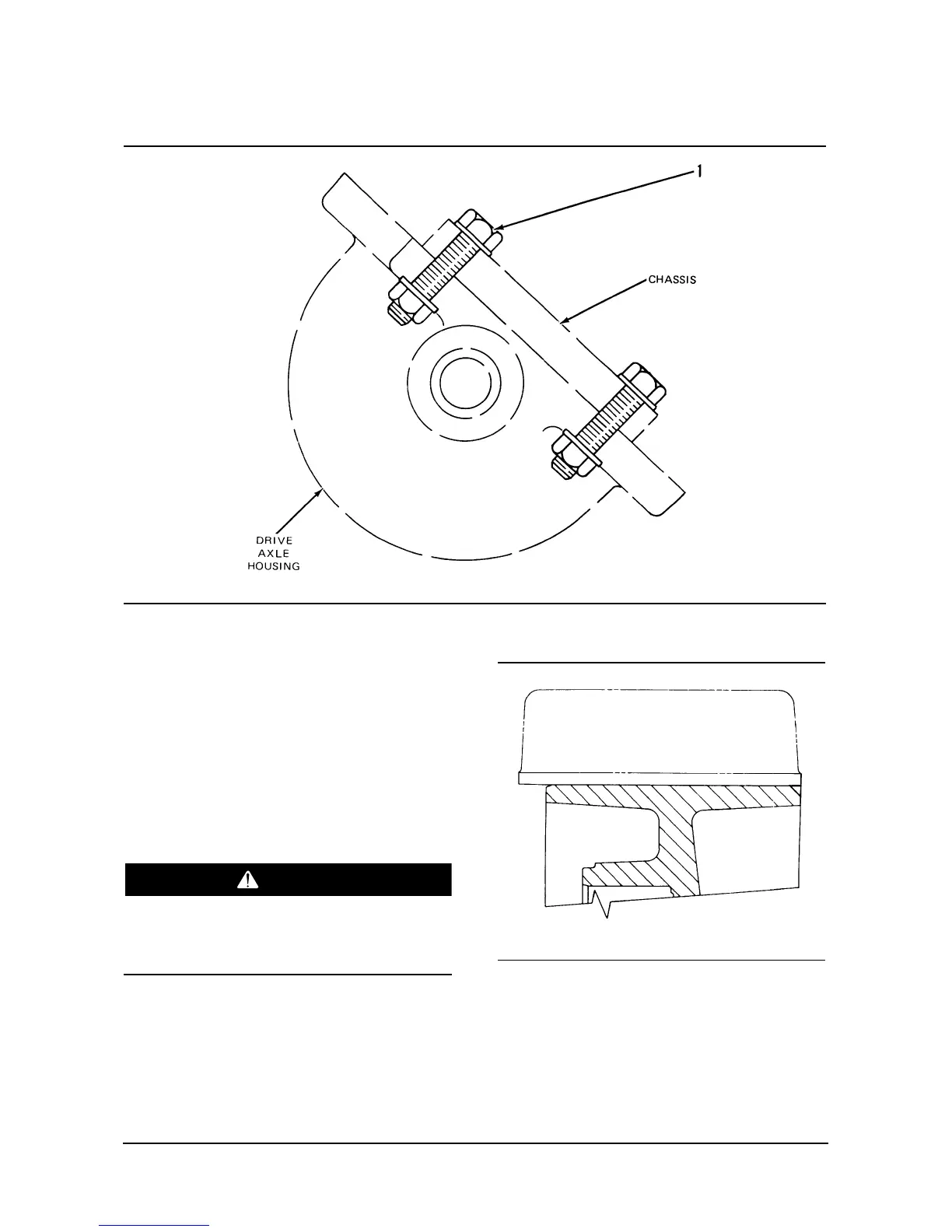

(1) Install four bolts (1) that fasten drive axle housing
to the chassis frame. Tighten bolts (1) to a torque
of ...........................488 L 27 N¥m (360 L 20 lb¥ft)
Drive Tire Installation
B Series
The optional cushion drive tire must be installed
as shown. failure to do so will decrease machine
stability and cause possible personal injury.
Cushion Tire
Install the cushion tire so that the edge of the tire is
even with the outside edge of the wheel.
