Power Train Specifications
BC30S-2-Narrow Axle
BC30S Models-Narrow Axle

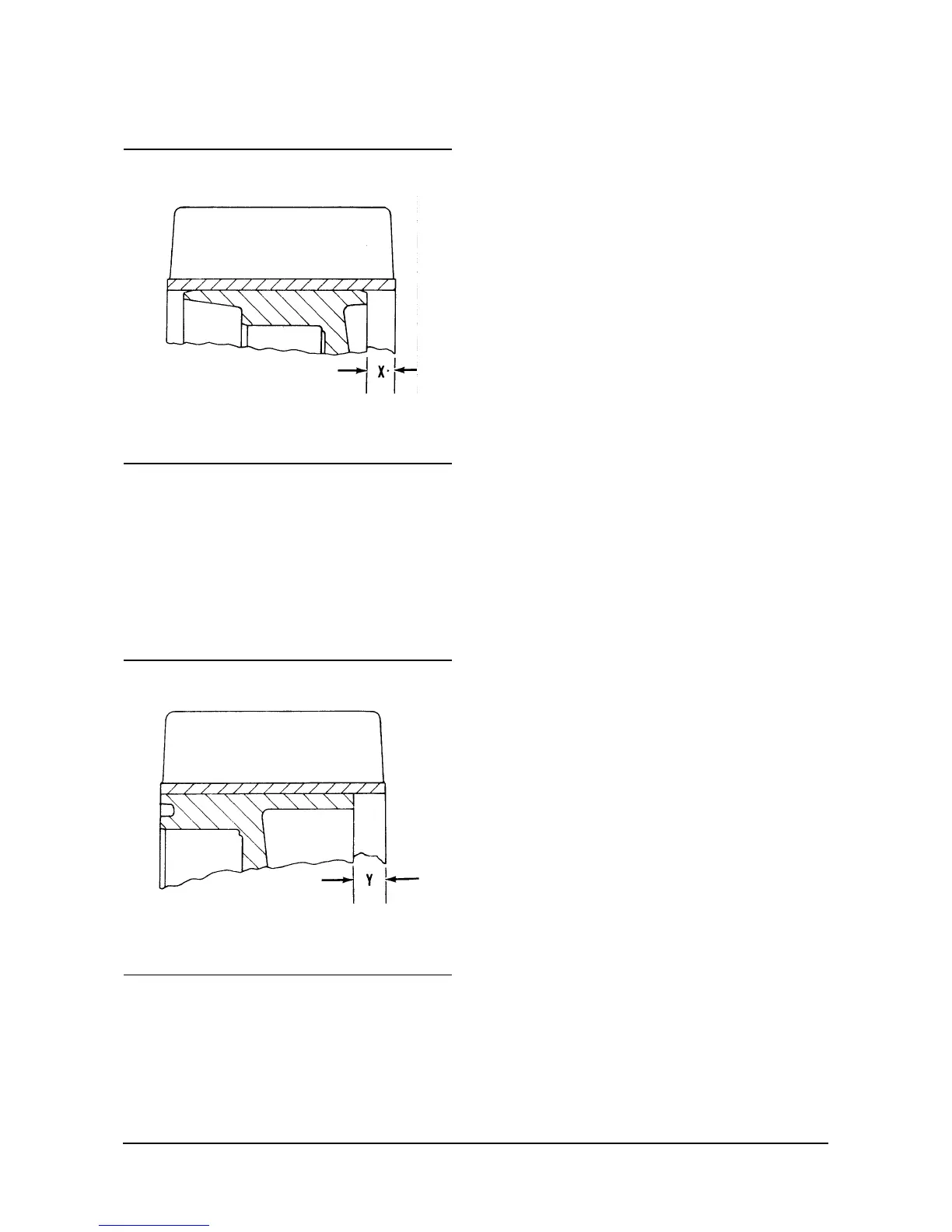

Install the tire so there is distance (X) between the
edge of the tire and the outside edge of the wheel.
Distance (X) is .............21.4 L 0.8 mm (.84 L .03 in.)
BC30S-2 wide Axle
BC30S Models-Wide Axle
Install the tire so there is distance (Y) between the
edge of the tire and the outside edge of the wheel.
Distance (Y) is......25.4 L 0.8 mm (1.00 L .03 in.)
35
