Daewoo BC30S-2 - Install Brakes, Brake Adjuster And Wheel Cylinder

Power Train Disassembly & Assembly

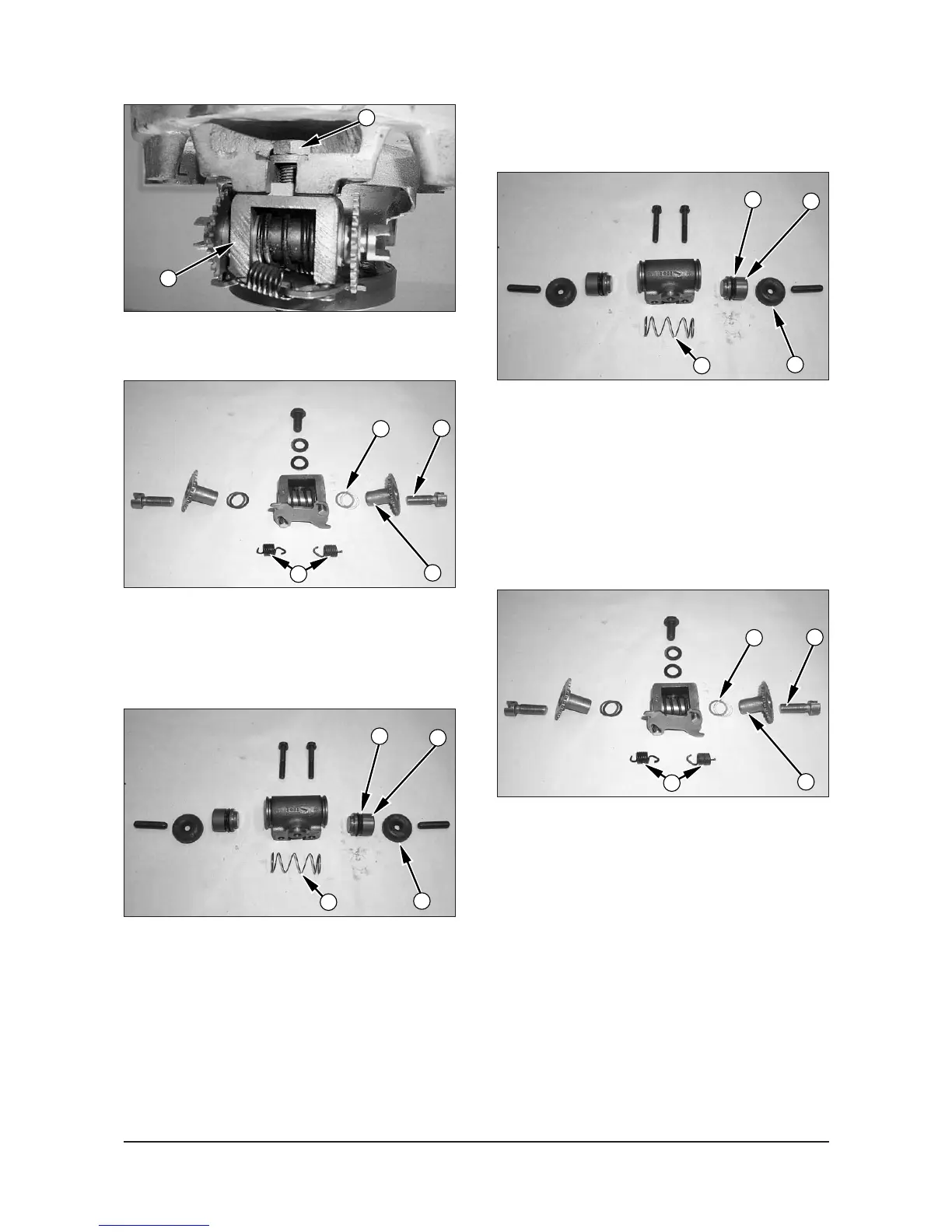

7. Remove bolt (11) to remove brake adjuster (12).
8. Disassemble the brake adjuster. Remove springs
(15) from the adjuster. Remove bolt (14), wheel
(16) and shims (13). Do the same for the other
side of the brake adjuster.
9. Disassemble the wheel cylinder. Remove dust
caps (20) from each end of the wheel cylinder.
10. Remove pistons (18) with seals (19) and spring
(17) from the wheel cylinder.
Install Brakes, Brake Adjuster And
Wheel Cylinder
1. Install spring (17) in the wheel cylinder.
NOTE: Put clean brake fluid on the seals and inside
of the wheel cylinder before assembly.
2. Install pistons (18) with seals (19) in the wheel
cylinder.
3. Install dust caps (20).
4. Install shims (13) on wheel (16). Install wheel (16)
in the brake adjuster with bolt (14). Do the same
for the other side of the brake adjuster. Install
springs (15) on the arms of the brake adjuster.
37
11
12
15
19
17
20
18
19
17
20
18
16
13
14
15
16
13
14
