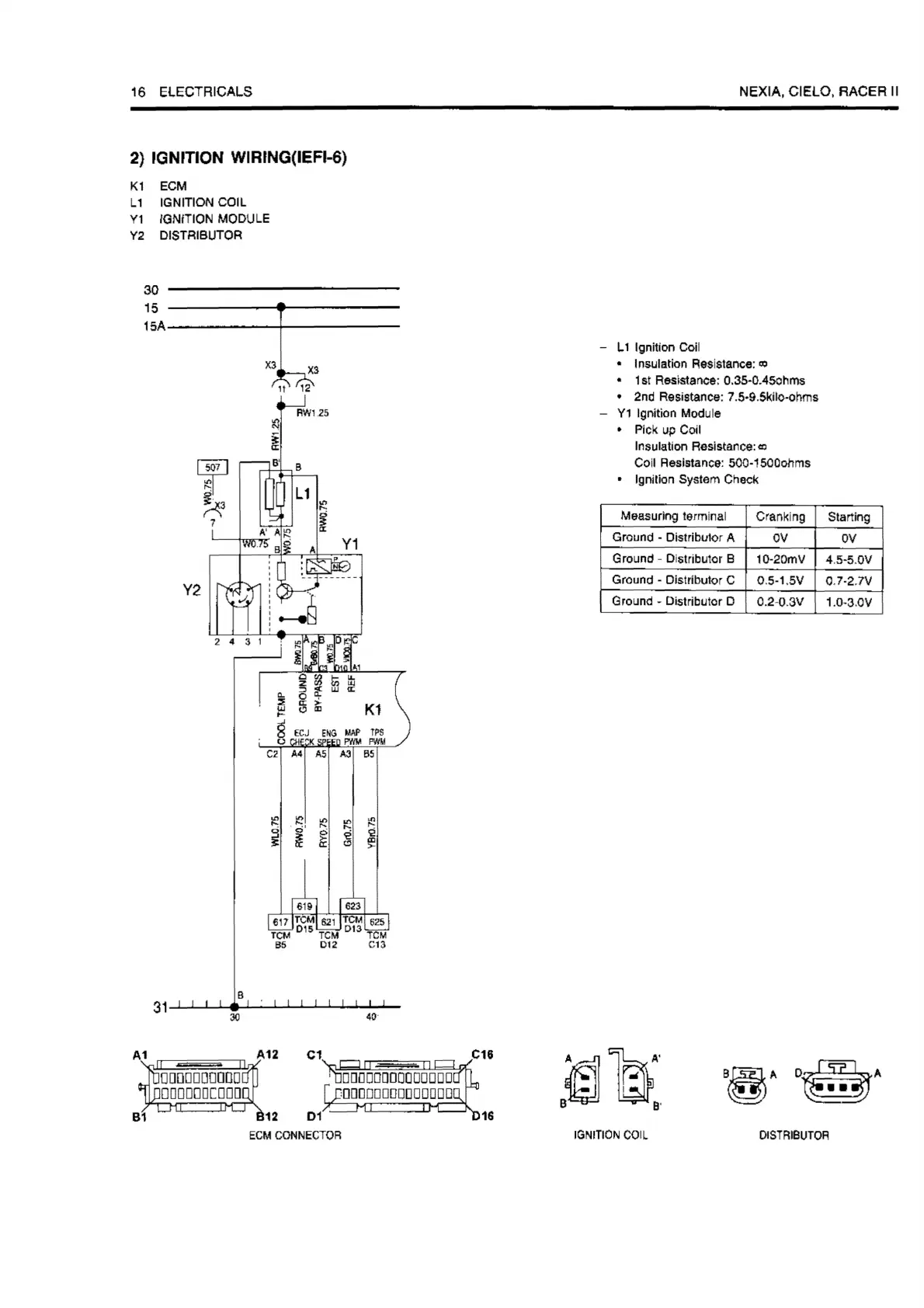

16 ELECTRICALS
2) IGNmON WIRING(IEFl-6)
K1 ECM
L 1 IGNmON COIL
V1 IGNITION MODULE
V2 DISTRIBUTOR
30 ------------
~~------Qt~,,-,-: ____ _
ECM CONNECTOR
NEXIA, CIELO, RACER II
- L 1 Ignition Coll
• Insulation
Resistance: 111C1
• 1 at Resistance: 0.35-0.45ohma
• 2nd ReSiatance: 7.5-9.Skilo-ohma
- Y1 Ignition Module
• Pick
up Coil
Insulation
Resistance: co
Coll Resistance: 500-1500ohms
• Ignition System Check
Measuring terminal
Cranking
Ground -
Distrlbu1or A
0V
Ground - Distributor B
10-20mV
Ground -
Dlatrlbu1or C
0.5-1.SV
Ground - Distributor D
0.2-0.3V
~~A'
B~ U:la,
Sta~
0V
4.5-5.0V
0.7•2.7V
1.0-3.0V
IGNITION COIL
DISTRIBUTOR
